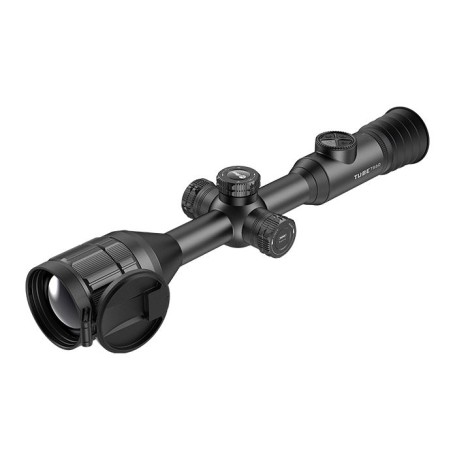

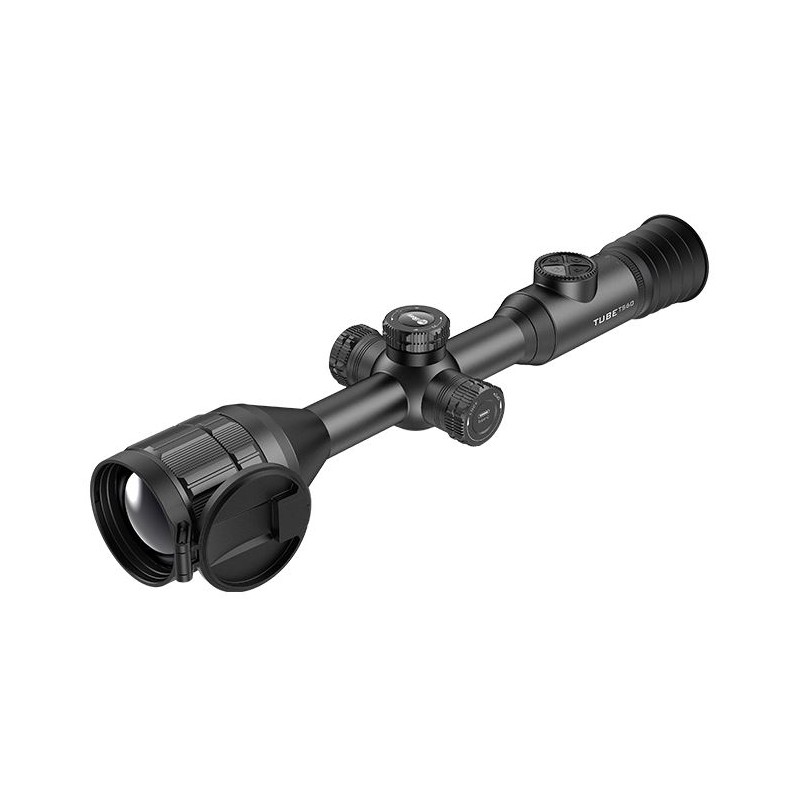

InfiRay Tube TS60 Thermal Imaging Riflescope

Introducing the InfiRay Outdoor TS60, the ultimate thermal imaging scope designed for professionals. Equipped with state-of-the-art technology, it offers exceptional high-definition image quality tailored for serious hunters.

7743.60 $
Tax included

6295.61 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Introducing the InfiRay Outdoor TS60, the ultimate thermal imaging scope designed for professionals. Equipped with state-of-the-art technology, it offers exceptional high-definition image quality tailored for serious hunters.

Exceptional Sensor Performance The TS60 features InfiRay's advanced thermal sensor with a 1280x1024 pixel resolution and a NETD of less than 18mk. This high-performance sensor captures even the most subtle temperature variations in challenging outdoor conditions, setting a new benchmark in thermal imaging.

Unmatched High-Definition Viewing Enjoy unparalleled clarity with the 1.03-inch, 2560x2560 round AMOLED display. The TS60 includes 7 custom-designed color palettes, enhancing your observation experience and ensuring optimal visual performance in various environments.

Extended Detection Range With its superior thermal sensor and high-definition display, the TS60 offers a remarkable detection range of up to 3100 meters. This extended range significantly enhances long-distance hunting, giving you a crucial advantage in the field.

Comfort and Ergonomics Designed for comfort, the TS60 is lightweight and ergonomically crafted to reduce fatigue during prolonged use. The scope features soft-touch buttons for ease of use, ensuring a comfortable and convenient shooting experience.

Extended Battery Life Equipped with a built-in 6600mAh battery and an additional replaceable 18650 battery, the TS60 provides up to 9 hours of operation (at 22℃). This extended battery life ensures reliable performance during extended hunting sessions.

Durability and Reliability Constructed from high-strength aluminum alloy and rigorously tested for impact resistance, the TS60 is built to withstand the demands of rugged outdoor use, ensuring long-term reliability.



Package Includes:

  • Tube TS60 Thermal Imaging Scope
  • Eyeshade
  • Picatinny Rail Mount
  • Portable Bag
  • Type-C Cable
  • Power Adapter
  • Lens Cloth
  • 2 x 18650 Batteries
  • Heated Target for Zeroing
  • Quick Start Guide



Specifications:

Detector Specifications:

Type: Vox

Resolution: 1280x1024 pixels

Pixel Size: 12 μm

NETD: ≤18 mk

Frame Rate: 50 Hz

Optical Specifications:

Objective Lens: 60mm/F1.0

Field of View (H×V): 14.7 × 11.7°

Linear Field of View (HxV) at 100m: 25.6 x 20.5m

Magnification: 2 ~ 16x

Eye Relief: 50mm

Exit Pupil Diameter: 6mm

Diopter Adjustment: -5 ~ +3.5

Detection Range (Target size 1.7m x 0.5m, P(n)=99%): 3100m

Display Specifications:

Type: AMOLED 1.03”

Resolution: 2560 × 2560 pixels

Battery Power Supply:

Built-in Battery: 6600mAh

Replaceable Battery: 18650, 3200mAh

Max Operating Time (22℃): 9 hours

External Power Supply: 5V (Type-C)

Physical Specifications:

Wi-Fi/APP: Supported (InfiRay Outdoor)

Photo/Video Recorder: Supported

MIC: Supported

Bluetooth: Supported

Memory Capacity: 128GB

IP Rating: IP67

Operating Temperature: -20 ~ +50℃

Weight: 1000g

Dimensions: 384 × 104 × 77 mm

Connections and Compatibilities:

Max Recoil Power on Rifled Weapon (Eo): 6000 Joules

Click Value @ 100m: 2 cm

Compatible Mount: Standard 30mm rings
