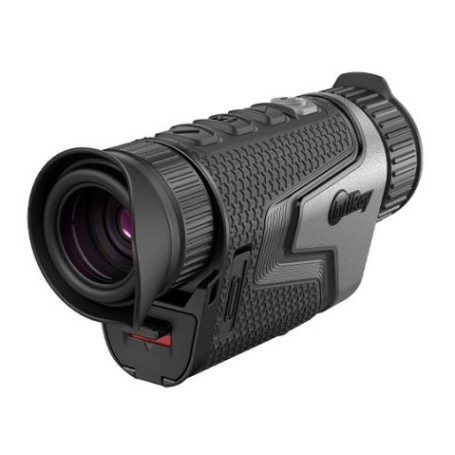

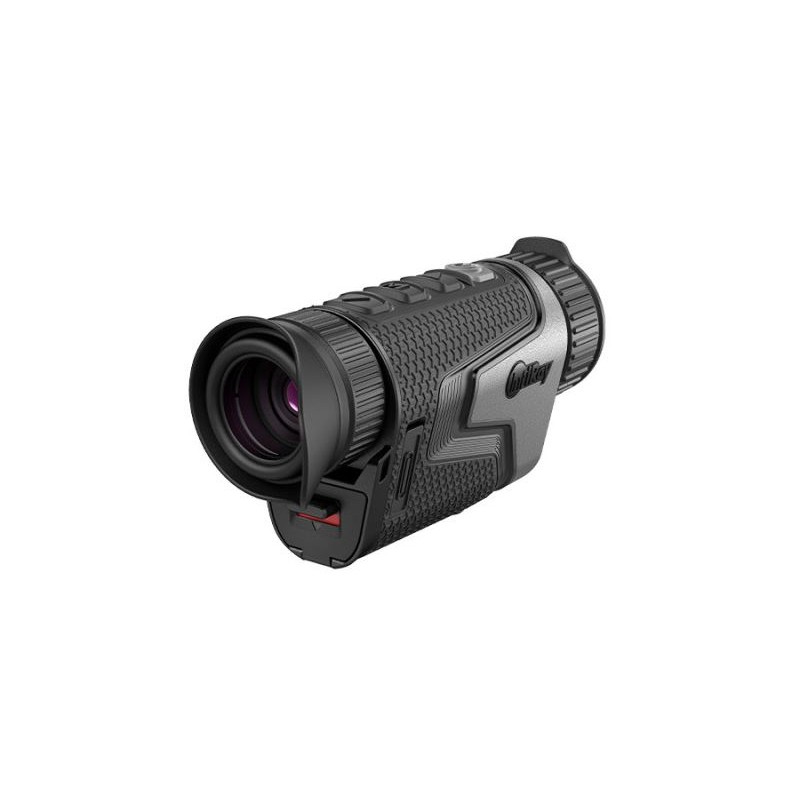

InfiRay IRIS IL19 Thermal Imaging Monocular

The Iris Series sets a new standard in portable thermal imaging with exceptional image quality that far exceeds the norm, all while being compact enough to fit in the palm of your hand. Weighing just 330g, it boasts IP67 water resistance and a replaceable 18650 battery, making it both highly portable and reliable.

Reality+ Image Enhancement Algorithms The Iris Series utilizes advanced Reality+ image enhancement algorithms that significantly improve image quality by reducing noise, unlocking the full potential of its thermal sensor.

F0.9 Large Aperture Lens The Iris features an F0.9 lens that allows 20% more light to reach the sensor compared to a standard F1.0 lens, resulting in brighter and clearer images.

Custom 384x288@12μm Sensor with NETD <20mK The self-developed 384x288@12μm sensor delivers consistent and exceptional performance with a NETD of less than 20mK, ensuring superior image clarity even in challenging conditions.

Silent Operation The Iris is designed with silent buttons, so you can operate it without making noise that might disturb your target.

Comfortable Viewing Equipped with a variety of color palettes, including red and green options, the Iris helps prevent eye fatigue, allowing for comfortable extended use.

Replaceable 18650 Battery The Iris includes a high-capacity 18650 battery that provides up to 5 hours of continuous use on a single charge.

10mm Exit Pupil The eyepiece features a 10mm exit pupil diameter, ensuring optimal viewing angles and visibility in all situations.

Package Contents

• IRIS IL19 Thermal Imaging Monocular
• Portable Bag
• 2 x 18650 Batteries
• 18650 Battery Charger
• Data Cable
• Neck Strap
• Lens Cleaning Cloth
• Quick Start Guide

Specifications

Model: IL19

Detector Resolution: 384×288 pixels

Pixel Size: 12μm

NETD: <20mK

Frame Rate: 50Hz

Optical Specifications

Objective Lens: 19mm F0.9

Field of View (H×V): 13.8°×10.4°

Linear Field of View (H×V) at 100m: 24×18 meters

Magnification: 2x to 8x

Detection Range: 980 meters (Target size: 1.7m × 0.5m, P(n)=99%)

Eye Relief: 25mm

Exit Pupil Diameter: 10mm

Diopter Adjustment: -5 to +5 D

Display Specifications

Type: AMOLED

Resolution: 1024×768 pixels

Battery Power Supply

Battery: Replaceable Li-ion 18650 / 3200mAh

Max Operating Time (at 22°C): 5 hours

Physical Specifications

MIC: Supported

Memory Capacity: 32GB

IP Rating: IP67

Operating Temperature: -20°C to +50°C

Weight: ≤330g

Dimensions: ≤143×47×74 mm
