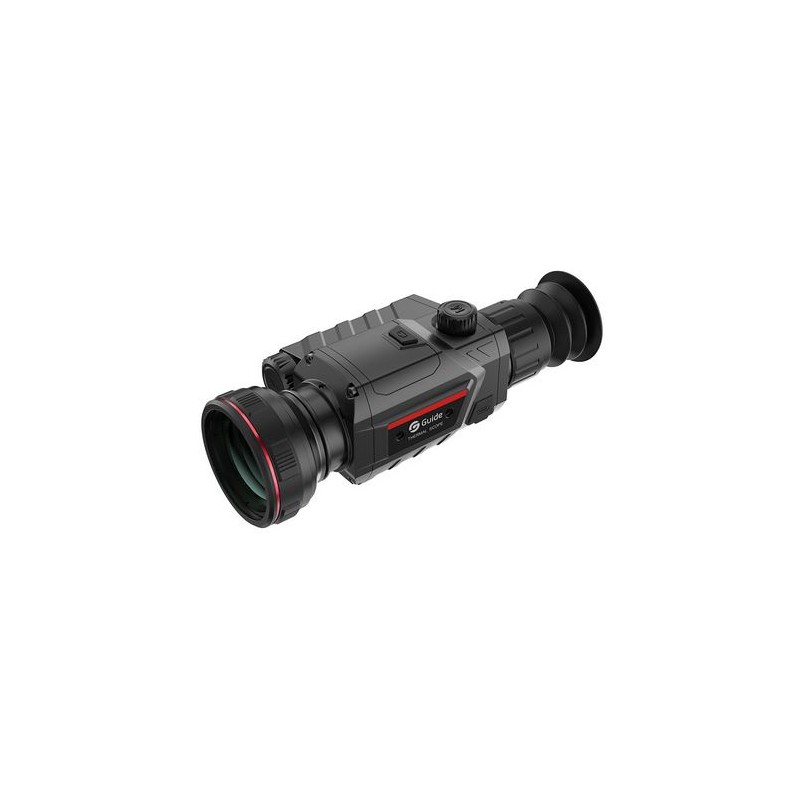

Guide TR430 Thermal Imaging Scope

TR Series: Affordable High-Performance Infrared Thermal Imaging Scope

The TR Series provides an economical yet powerful infrared thermal scope for civilian use, equipped with a high-sensitivity thermal detector and available in three lens options: 25 mm, 35 mm, and 50 mm. Offering sharp, detailed images with 400 × 300 IR resolution, this series maintains precision in every shot. Compact, waterproof, dustproof, and shock-resistant, the TR Series is ruggedly built to perform well in harsh weather conditions.

Specifications

• Resolution: 400x300 IR
• Focal Length: 35mm F1.0
• Field of View: 7.50°×5.64°
• Display: 1024×768 AMOLED

High Definition Detector

Using 12µm thermal imaging detectors with a 400×300 resolution and 25mK NETD, the TR Series provides high-definition imaging with excellent thermal sensitivity across all weather conditions.

Full-Color HD AMOLED Display

Equipped with a 0.39-inch HD AMOLED display (1024×768 pixels), the TR Series delivers sharp, vibrant images that capture every detail with rich contrast.

Quick-Release Mount for Tool-Free Installation

Easily mount the device with the quick-release scope mount, secured with a locking lever, allowing for fast and tool-free installation.

Ballistic Calculation for Precision

Connect to the TargetIR Ballistics App (Android/iOS) to input bullet and weather data, enabling accurate ballistic calculations for high-precision shooting.

Photo and Video Capture with Audio

Capture and share moments with the built-in photo and video function, complete with a microphone for sound recording.

One-Touch Freeze for Quick Zeroing

Screen freeze functionality allows for quick zeroing, improving accuracy and enhancing user convenience.

External Laser Range Finder

The optional external laser range finder measures distances up to 600 meters, providing quick target acquisition with automatic connection on boot.

Seven Color Palettes for Enhanced Visibility

Choose from seven color palettes to optimize viewing under different conditions. White Hot, Black Hot, and Red Hot are ideal for detection, while Green Hot, Iron Red, Blue Hot, and Sepia improve recognition and identification.

IP67 Protection for Durability

With an IP67 rating, the TR Series is waterproof and dustproof, built to withstand high humidity, heavy rain, and impacts with shock resistance up to 800G.

Over-the-Air (OTA) Firmware Updates

Efficiently update firmware by connecting to TargetIR, ensuring the device stays up-to-date.

In the Box
Device, quick-release scope mount, Type-C cable, 5V2A adapter (compatible with US, UK, Australia, and Europe), 18650 battery, battery charger, lens cover, eye mask, quick start guide, and warranty card.

Technical Specifications

• Model: TR430

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 400×300@12μm
• NETD: 25mK
• Frame Rate: 50 Hz

Lens

• Objective Lens: 35mm, F1.0
• Field of View: 7.8°×5.9°
• Field of View at 100m: 14m x 10m
• Magnification: 3.3x~13.2x
• Detection Range: 1800m / 1950 yards

Display

• Type: 0.39'' AMOLED 1024×768
• Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief 48mm; Diopter ± 4; Zoom 14x

Hardware

• Wi-Fi: 2.4G
• Interface: USB Type-C
• Additional Features: Microphone, Bluetooth

System

• Recording: Supports photo and video with audio recording
• Memory: 32GB internal storage

Power

• Battery Type: Single, replaceable 18650 battery
• Operating Time: Up to 8 hours

Environmental Protection

• Operating Temperature: -30°C to 50°C (-22°F to +122°F)
• Shock Resistance: 800G at 1ms (IEC60068-2-27 standard)
• Encapsulation: IP67

Physical Dimensions and Weight

• Weight: 565 grams / 19.93 ounces
• Size: 206×89×66 mm (8.11×3.50×2.60 inches)
