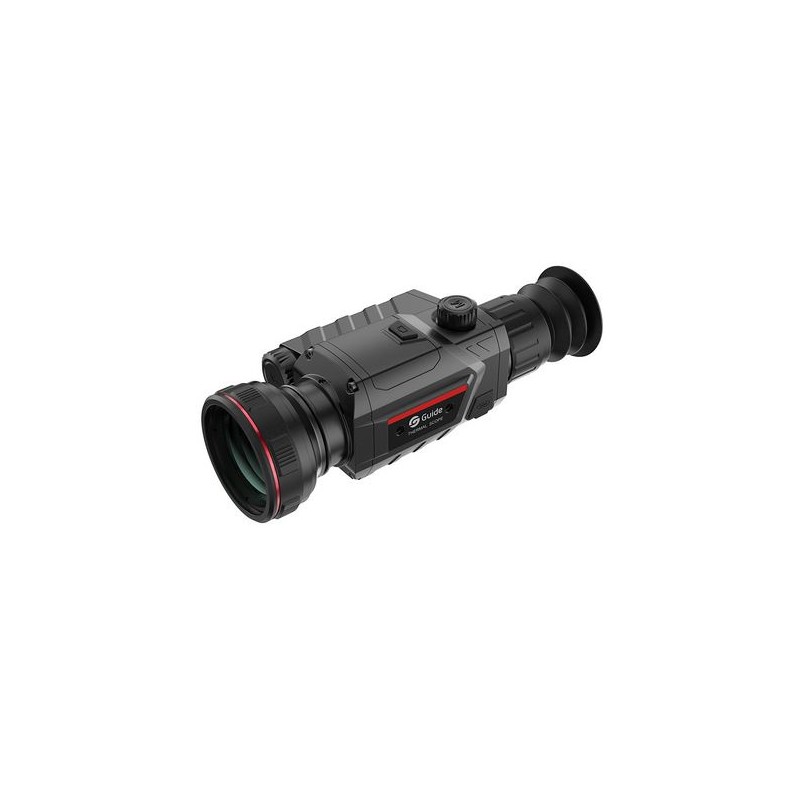

Guide TR620 Thermal Imaging Scope

TR Series: Affordable High-Performance Infrared Thermal Imaging Scope

The TR Series offers a budget-friendly, high-sensitivity thermal imaging scope for civilian use, available with 25 mm, 35 mm, and 50 mm lens options. This series provides sharp, detailed images with 640 × 512 IR resolution, ensuring precision in every shot. Compact, waterproof, dustproof, and highly shock-resistant, the TR Series is rugged and built to withstand challenging weather conditions.

Specifications

• Resolution: 640×512 IR
• Focal Length: 25mm F1.0
• Field of View: 17.08°×13.03°
• Display: 1024×768 AMOLED

High Definition Detector

Equipped with 12µm thermal imaging detectors, the TR Series features 640×512 resolution and a 20mK NETD, delivering sharp imaging and excellent thermal sensitivity across all weather conditions.

Full-Color HD AMOLED Display

The 0.39-inch HD AMOLED display with 1024×768 resolution offers high contrast and vivid images, capturing every detail in full color.

Quick-Release Mount for Easy Setup

The quick-release scope mount allows for easy and secure installation, with a locking lever for tool-free attachment.

Ballistic Calculation for Precision Shooting

By connecting to the TargetIR Ballistics App (Android and iOS), users can input bullet and weather data, enabling accurate ballistic calculations for high-precision shooting.

Photo and Video Capture with Audio

The TR Series enables capturing and sharing moments with built-in photo and video functions, complete with a microphone for sound recording.

One-Touch Screen Freeze for Zeroing

Screen freeze functionality simplifies zeroing, improving accuracy and enhancing user convenience.

External Laser Range Finder

The optional external laser range finder measures distances up to 600 meters, connecting automatically on boot for quick target acquisition.

Seven Color Palettes for Enhanced Viewing

With seven color palettes available (White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, and Sepia), the TR Series adapts to various conditions, optimizing detection and identification.

IP67 Protection for Durability

Rated IP67, the TR Series is waterproof and dustproof, withstanding high humidity, heavy rain, and impacts with shock resistance up to 800G.

Over-the-Air Firmware Updates

Supports firmware updates via the TargetIR app for efficient and seamless upgrades.

Included in the Box
Device, quick-release scope mount, Type-C cable, 5V2A adapter (compatible with US, UK, Australia, and Europe), 18650 battery, battery charger, lens cover, eye mask, quick start guide, and warranty card.

Technical Specifications

• Model: TR620

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 640×512@12μm
• NETD: 20mK
• Frame Rate: 50 Hz

Lens

• Objective Lens: 25mm, F1.0
• Field of View: 17.5°×14.0°
• Field of View at 100m: 31m x 25m
• Magnification: 1.5x~12.0x
• Detection Range: 1300m / 1400 yards

Display

• Type: 0.39'' AMOLED 1024×768
• Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief 48mm; Diopter ± 4; Zoom 14x

Hardware

• Wi-Fi: 2.4G
• Interface: USB Type-C
• Additional Features: Microphone, Bluetooth

System

• Recording: Supports photo and video with audio recording
• Memory: 32GB internal storage

Power

• Battery Type: Single, replaceable 18650 battery
• Operating Time: Up to 8 hours

Environmental Protection

• Operating Temperature: -30°C to 50°C (-22°F to +122°F)
• Shock Resistance: 800G at 1ms (IEC60068-2-27 standard)
• Encapsulation: IP67

Physical Dimensions and Weight

• Weight: 578 grams / 20.39 ounces
• Size: 201×89×66 mm (7.91×3.50×2.60 inches)
