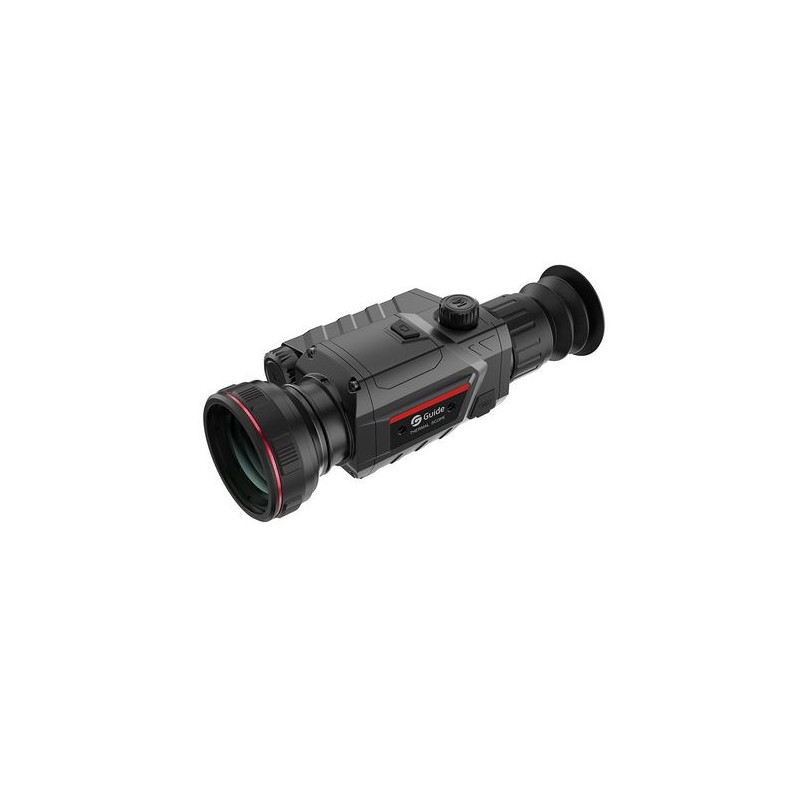

Guide TR630 Thermal Imaging Scope

TR Series: Affordable and High-Performance Infrared Thermal Imaging Scope

The TR Series is a budget-friendly thermal imaging scope designed for civilian use, featuring a high-sensitivity thermal detector and available in three lens options: 25 mm, 35 mm, and 50 mm. With 640 × 512 IR resolution, the TR Series delivers sharp, detailed imaging without sacrificing accuracy. Compact, waterproof, dustproof, and highly shock-resistant, it is ruggedly built to perform impressively even in harsh environments.

Key Specifications

• Resolution: 640×512 IR
• Focal Length: 35mm F1.0
• Field of View: 12.38°×9.38°
• Display: 1024×768 AMOLED

High-Definition Detector

Equipped with a 12µm thermal imaging detector and 640×512 resolution, the TR Series offers exceptional thermal sensitivity with a 20mK NETD, delivering clear images in all weather conditions.

Full-Color HD AMOLED Display

The 0.39-inch HD AMOLED display, with a resolution of 1024×768, provides high contrast and vivid images, capturing every detail with rich color.

Quick-Release Scope Mount for Easy Installation

The quick-release scope mount allows for fast and secure attachment with a locking lever, making installation easy and tool-free.

Ballistic Calculation Integration

Compatible with the TargetIR Ballistics App (Android and iOS), allowing users to set bullet and weather parameters for accurate ballistic calculations and high-precision shooting.

Photo and Video Capture with Audio

Capture and share moments with photo and video functionality, including a built-in microphone for sound recording.

One-Touch Screen Freeze for Zeroing

Screen freeze simplifies zeroing, enhancing accuracy and user convenience.

External Laser Range Finder

Optional external laser range finder provides precise distance measurement up to 600 meters, connecting automatically on boot for quick target acquisition.

Seven Color Palettes for Enhanced Viewing

Seven color palettes (White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, and Sepia) adapt to various conditions, optimizing detection and identification.

Over-the-Air Firmware Updates

Supports firmware updates via the TargetIR app, keeping the device efficient and up-to-date.

Included in the Box
Device, quick-release scope mount, Type-C cable, 5V2A adapter (compatible with US, UK, Australia, and Europe), 18650 battery, battery charger, lens cover, eye mask, quick start guide, and warranty card.

Technical Specifications

• Model: TR630

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 640×512@12μm
• NETD: 20mK
• Frame Rate: 50 Hz

Lens

• Objective Lens: 35mm, F1.0
• Field of View: 12.5°×10.0°
• Field of View at 100m: 22m x 17m
• Magnification: 2.1x~16.8x
• Detection Range: 1800m / 1950 yards

Display

• Type: 0.39'' AMOLED 1024×768
• Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief 48mm; Diopter ± 4; Zoom 14x

Hardware

• Wi-Fi: 2.4G
• Interface: USB Type-C
• Additional Features: Microphone, Bluetooth

System

• Recording: Supports photo and video with audio recording
• Memory: 32GB internal storage

Power

• Battery Type: Single, replaceable 18650 battery
• Operating Time: Up to 8 hours

Environmental Protection

• Operating Temperature: -30°C to 50°C (-22°F to +122°F)
• Shock Resistance: 800G at 1ms (IEC60068-2-27 standard)
• Encapsulation: IP67

Physical Dimensions and Weight

• Weight: 575 grams / 20.28 ounces
• Size: 206×89×66 mm (8.11×3.50×2.60 inches)
