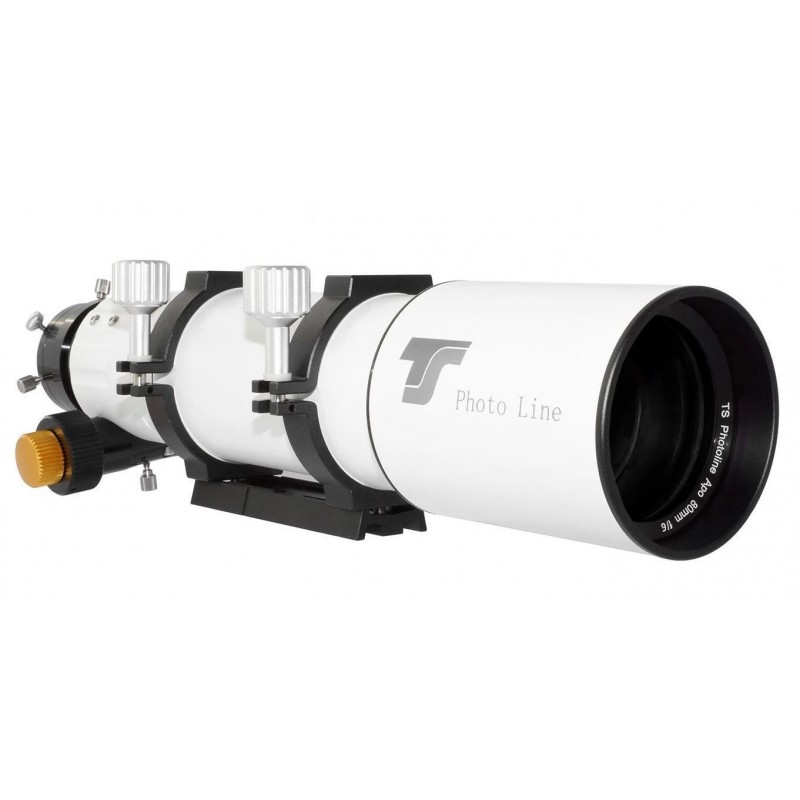

TS Optics PhotoLine 80 mm f/6 Triplet Apo FPL53 2,5" RAP (TLAPO804)

The Photoline 80mm f/6 Triplet Apochromat, developed under the leadership of Teleskop Service, is a high-quality refractor featuring an FPL53 element from Ohara (Japan). It is designed as the ideal travel apochromat for both visual observation and astrophotography.

This telescope delivers exceptional optical performance, providing color-error-free images even at the highest magnifications, along with excellent field correction. It is one of the brightest and most impressive 80mm apochromats available. The fast focal ratio of f/6 ensures a compact and portable design while enabling shorter exposure times for astrophotography.

Precision Mechanics for Long-Term Reliability
The Photoline 80mm f/6 Apo is built with premium mechanics to guarantee outstanding optical performance and durability. Unlike other models where manufacturers may compromise on quality, this telescope is designed without shortcuts. It is fully optimized for astrophotography, ensuring sharp and round stars across the entire field of view when paired with suitable field correctors. Compatible correctors are available to further enhance its astrophotography capabilities.

Key Features:

• High-quality FPL53 triplet lens from Ohara (Japan)

• Aperture: 80mm, focal length: 480mm, focal ratio: f/6

• Premium multi-coated optics for maximum light transmission

• CNC-machined aluminum tube for durability and stability

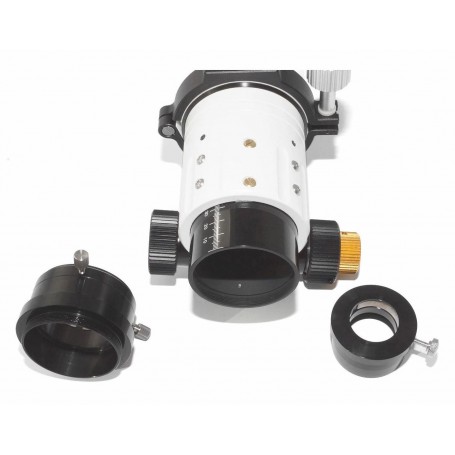

• 2.5" focuser with a 60mm clear aperture and 1:10 micro reduction for precise focusing

• M63 inner thread for attaching correctors and accessories

Included in Delivery:

• Optical tube with 80mm aperture and 480mm focal length

• Retractable dew cap

• 2.5" focuser with a 60mm clear aperture

• Adapter for 1¼" eyepieces

• M63 female thread for accessories

• Vixen-compatible mounting plate

• Tube rings

• Dew cap

Product Specifications:

• Coating: Multicoated optics

• Eyepiece Adapter: Compatible with 2" and 1.25" eyepieces (adapter included)

• Lens Type: Triplet apochromatic lens with FPL53 ED element from Ohara (Japan)

• Connection to Eyepiece: 2" / 1.25" with adapter included

• Maximum Useful Visual Magnification: 160x

• Aperture: 80mm

• Focal Ratio: f/6

• Focal Length: 480mm

• Limiting Magnitude: 11.3 mag

• Tube Material: CNC-machined aluminum construction

• Telescope Type: Triplet FPL53 Apochromatic Refractor

• Tube Diameter: 89mm

• Length During Observation: 420mm

• Back Focus Distance: 138mm

• Color Scheme: Black/white finish

• Resolution Power: 1.47 arcseconds

• Dew Cap Diameter: 112mm

• Transportation Length: 375mm (compact design)

• Tube Weight: Approximately 6.9 lbs (3.1 kg)

• Focuser Type: 2.5" RPA focuser with fine adjustment

This telescope is an excellent choice for both visual observers and astrophotographers seeking portability, precision, and exceptional optical quality in a compact package.
