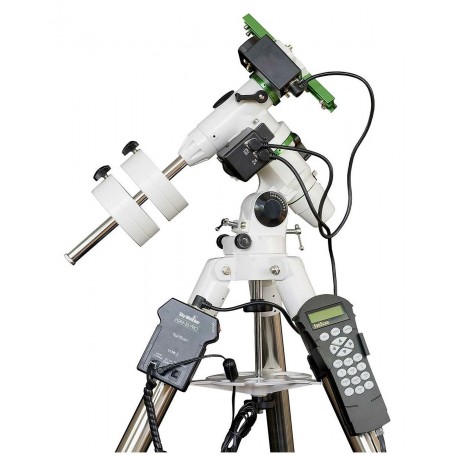

Sky-Watcher EQM-35 PRO + NEQ5 Mount (SW-4141)

The SkyWatcher EQM-35 PRO Synscan is a versatile equatorial mount with GoTo capabilities, designed for astrophotography and long-distance travel. Based on the EQ3 SynScan Pro structure, it offers enhanced features and flexibility.

Mounting Options

1. Standard Configuration: Equatorial mount with GoTo system

   • Capacity: Up to 10 kg of equipment

   • Reinforced head structure

   • Larger, more precise worm wheel in RA axis

   • Complete GoTo system with ST-4 socket for AutoGuider

2. Travel Configuration: Lightweight setup for portability

   • Declination axis can be easily removed

   • Conversion takes only a few minutes

   • Head weight: 3.28 kg (fits in air hand luggage)

   • Similar to StarAdventurer head, but with greater stability and capacity

   • Optional dovetail or ball head for direct camera attachment

Key Features

• Dual functionality: GoTo equatorial mount and lightweight travel mount

• 10 kg equipment capacity in equatorial mode

• GoTo system with guidance and search capabilities

• ST-4 port for autoguider connection, PEC

• Easy conversion to 3.2 kg lightweight configuration

• Includes polar scope, steel tripod, SynScan WiFi controller, and counterweights

Technical Specifications

• Mount class: EQ3-2

• Lifting capacity: 10 kg

• RA gear: D = 92.5 mm, 180 teeth, brass

• DEC gear: D = 34.3 mm

• Motors: Stepper, max speed 3.4°/s

• Tracking mode: RA (right ascension axis)

• Computer/smartphone communication: WiFi

• GoTo system: SynScan WiFi

• Ports: ST-4 autoguider, 2.5mm minijack for DSLR shutter release

• Tripod height: 85 - 121 cm

• Counterweight bar: 20 mm, stainless steel

• Tripod weight: 5.6 kg

• Total weight (net/gross): 20 kg / 24 kg

Warranty

• 60 months (5 years) for mechanics

• 24 months (2 years) for electronics

Note: The 2022 version does not include a remote control but offers WiFi communication.
