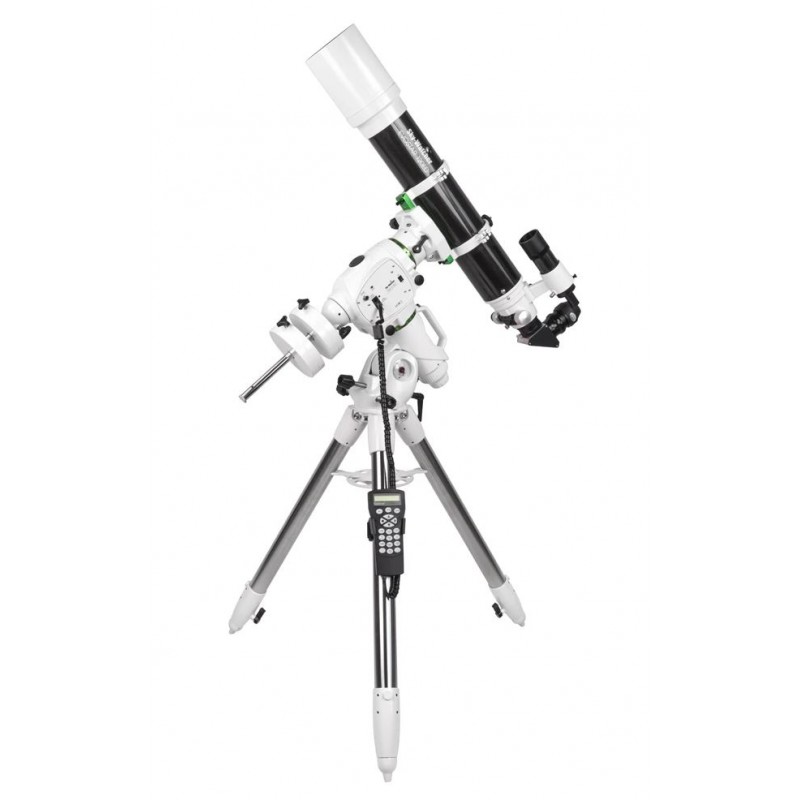

Sky-Watcher Evostar 120 ED OTAW Black Diamond telescope + EQ6-R PRO parallactic mount (SW-2010/SW-4163)

This refractor telescope is the larger sibling of the popular EQ100 model, featuring a larger 120 mm lens while maintaining a focal length of 900 mm. Like its smaller counterpart, it is widely used by astrophotographers due to its excellent optical quality, lightweight design, and compatibility with advanced accessories. By adding a focal length reducer (0.85x), users can modify the system to achieve a corrected focal length of 765 mm and an aperture ratio of f/6.38, making it ideal for astrophotography.

Optical System
The telescope features a doublet refractor design made with low-dispersion ED glass (FPL-53). This optical system ensures excellent image brightness and minimizes chromatic aberration, making it suitable for high-magnification observations of planets and the Moon as well as astrophotography. Apochromatic lenses focus nearly all visible wavelengths at a single point, correcting chromatic aberration in blue, green, and red light while eliminating spherical aberration in red and blue light. With this telescope, you can observe objects up to 12.5 magnitude (compared to the naked eye limit of 6 magnitude) and resolve stars separated by more than 1.2 arcseconds.

Eyepiece Extractor
The telescope includes a high-quality eyepiece extractor with a micrometer planetary gear transmission (10:1). It supports both 2-inch and 1.25-inch eyepieces.

Applications and Observation Capabilities

• Solar System: Observe lunar surface features larger than 1–1.5 km, sunspots and their structure, all planets in the Solar System, Mercury and Venus phases, Mars' polar caps, Jupiter's equatorial stripes and Galilean moons, Saturn's rings and Titan, Uranus and Neptune as disks, asteroid motion against stars, and brighter comets.

• Stars: View approximately 1.1 million stars up to magnitude 12.5, double and multiple stars separated angularly by more than 1.2 arcseconds, and observe star colors for brighter stars.

• Nebular Objects: Observe nearly all Messier catalog objects, hundreds of globular clusters, open clusters, brighter nebulae, and galaxies.

• Terrestrial Observation: With a prismatic angular attachment, the telescope can be used for terrestrial observations or as a high-quality telephoto lens for photography.

Included Accessories:

• 28 mm LET eyepiece (2-inch)

• Straight-through finder scope (9x50)

• Dielectric diagonal (90°, compatible with 2-inch/1.25-inch eyepieces)

• Tube clamps and dovetail rail

• Aluminum transport case

Technical Specifications:

• Optical System: ED Doublet

• Lens Diameter: 120 mm

• Glass Type: Japanese FPL-53 (ED) with Schott-AG crown glass

• Focal Length: 900 mm

• Weight: 5.3 kg

• Eyepiece Extractor: 2-inch with micrometer planetary gear (10:1)

• Tube Dimensions: 130 x 920 mm

EQ6-R PRO Parallactic Mount
The Sky-Watcher EQ6-R PRO is an upgraded version of the NEQ-6 Pro mount with modernized features. It incorporates belt-driven gears for smoother operation and reduced backlash compared to traditional toothed gears.

Load Capacity: The mount supports up to 20 kg for visual observations or up to 15 kg for astrophotography (excluding counterweights).

Mount Features:

• Permanent Periodic Error Correction (PPEC)

• Belt transmission for quiet operation and reduced play

• DSLR camera control via shutter release port on the head

• High precision motor controllers

• Dual saddle mount compatible with Vixen-style and Losmandy rails

Technical Specifications:

Head:

• Load Capacity: 20 kg without counterweights

• Weight: 17.3 kg

• Counterweights: Two x 5 kg each

• Counterweight Rod Diameter: 18 mm; Length: 240 mm + 180 mm

Tripod:

• Material: Stainless steel

• Weight: 7.5 kg

• Leg Diameter: 2 inches (50.8 mm)

• Adjustable Height: 71–123 cm

Drive:

• Supply Voltage: DC 11–16 V / 4A

• Motors: Hybrid stepper motors with microsteps up to 1/64 division

• Drive Resolution: 9,216,000 microsteps per revolution

System:

• GoTo System: SynScan remote control or SynScan app (requires WiFi adapter)

• Alignment Modes: One-star, two-star, three-star (EQ); two-star (AZ)

Packaging Details: Two boxes with dimensions of 114 x 28 x 27 cm and 61 x 52 x 28 cm; total weight approximately 41 kg.

Warranty: Electronics are covered for two years; mechanical components are covered for five years.

This refractor telescope paired with the EQ6-R PRO mount offers exceptional performance for astrophotography enthusiasts while remaining accessible to beginners seeking high-quality celestial observations.
