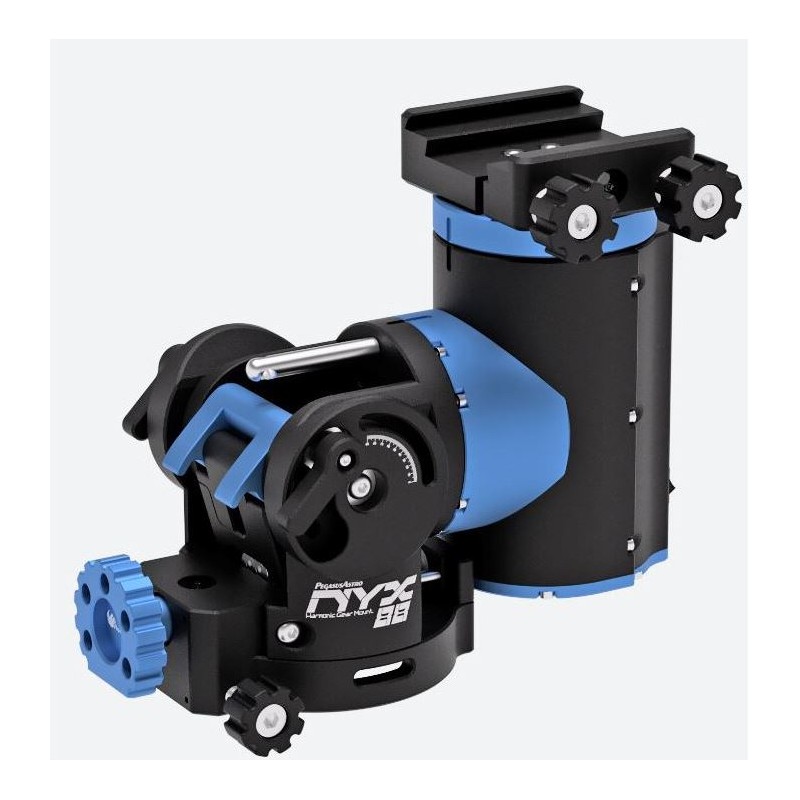

PegasusAstro NYX-88 Harmonic Geared Mount (85084)
The PegasusAstro NYX-88 Harmonic Geared Mount is a compact, travel-friendly equatorial mount designed for astrophotographers and observers who need high performance and portability. Weighing just 5 kg, it supports a payload of up to 14 kg without requiring counterweights, making it ideal for grab-and-go setups or remote observing. The mount uses advanced strain wave (harmonic) gears on both the right ascension and declination axes, providing smooth, backlash-free tracking and high torque, even at maximum payload.
1830.23 £ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The PegasusAstro NYX-88 Harmonic Geared Mount is a compact, travel-friendly equatorial mount designed for astrophotographers and observers who need high performance and portability. Weighing just 5 kg, it supports a payload of up to 14 kg without requiring counterweights, making it ideal for grab-and-go setups or remote observing. The mount uses advanced strain wave (harmonic) gears on both the right ascension and declination axes, providing smooth, backlash-free tracking and high torque, even at maximum payload. Its CNC-machined aluminum alloy construction ensures durability, while the electronic brake on the RA axis prevents backsliding when powered off.
The NYX-88 offers versatile operation in either equatorial or altazimuth mode, which can be switched easily via PC, mobile app, or hand-controller. Connectivity is streamlined with built-in WiFi and USB2 ports, and the mount is compatible with ASCOM, INDI, and LX200 protocols. The universal saddle plate accepts both Vixen and Losmandy dovetails, and an integrated ST-4 port supports autoguiding. The mount operates on a standard 12V DC supply, with low power consumption during tracking and slewing. Safety features include reverse voltage protection and safety limit stops during slewing or tracking.
Max. additional load capacity: 14 kg (up to 20 kg with counterweights)
Interfaces: USB and ST4 ports, built-in WiFi
Mounting saddle: Compatible with Losmandy and Vixen dovetails
Weight (mount head only): 5 kg
Input voltage: 12V DC
Amperage: Up to 5A (typically much lower during operation)
Cable-guide: Internal
Drive type: Harmonic / Strainwave gears on both axes
Declination and right ascension axis material: Aluminum
GoTo system: Yes, with easy polar alignment and English language support
Handcontroller: Not included
Tripod and transport cases: Not included
Pole finder: Not included (software-assisted polar alignment recommended)
Autoguiding: Yes, via ST-4 port
Total weight: 5 kg
Series: NYX
GoTo control: No GPS, but supports SkyPortal software
PEC correction: No
General type: Equatorial mount
