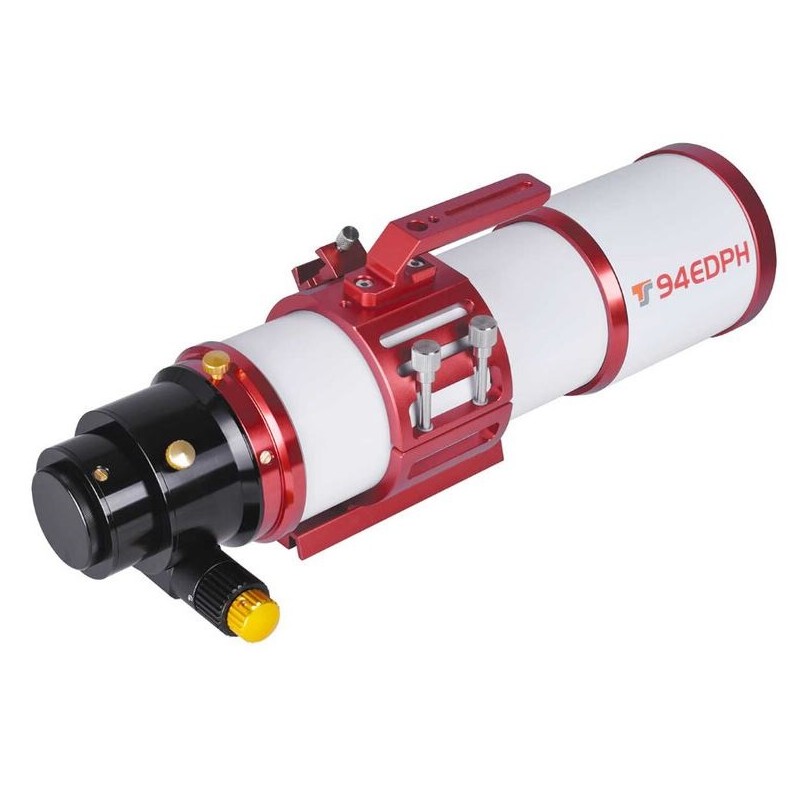

TS Optics Apochromatic refractor AP 94/517 EDPH OTA (69791)

This 94 mm apochromatic refractor with a fast focal ratio of f/5.5 is designed for amateur astronomers who value a compact, color-accurate, and fast telescope. The triplet lens design uses two special ED elements, delivering images free from chromatic aberrations even at high magnifications. The optical performance matches that of an FPL53 triplet lens. The lens is secured in a CNC-milled, adjustable mount for precise alignment.

Solid mechanics further enhance the telescope’s appeal. It comes with a 3-inch dual-speed rack and pinion focuser, where adjustment and bearing are separated to prevent tilting of the draw-tube during clamping. This allows for precise focusing even with heavy accessories.

The pure color triplet lens provides a high-contrast image, making it suitable for both astronomy and daytime observation. The 94 mm aperture reveals lunar craters, planetary details, and thousands of deep-sky objects. The telescope supports both 1.25-inch and 2-inch accessories, such as star diagonals.

The carrying handle is multifunctional, making it easy to mount the telescope on a photo tripod and serving as a base for additional accessories. The handle features a slotted hole and a 1/4-inch photo thread, allowing you to attach a ball head or mount a second camera in parallel. Next to the handle is a finder shoe for finder scopes, mini telescopes, or red-dot finders.

Specifications

Optics:
Type: Refractor
Design: Apochromat
Aperture: 94 mm
Focal Length: 517 mm
Aperture Ratio: f/5.5
Resolving Capacity: 1.47
Limiting Magnitude: 11.7
Light Gathering Power: 180
Maximum Useful Magnification: 188x
Lens Design: Triplet
Tube Weight: 4.1 kg
Tube Diameter: 104 mm
Tube Length: 440 mm
Dew Cap Diameter: 118 mm
Fully Corrected Field: 50 mm

Focuser:
Type: Rack and pinion
Eyepiece Connection: 2-inch
Camera-Side Thread: M74
Backfocus: 55 mm
Free Aperture: 76 mm
Ring Clamp: Yes
Gear Reduction: 1:10 fine focusing
Adjustment Range: 75 mm
Rotating: Yes

Mount:
Type: OTA (Optical Tube Assembly)
Mount Included: No

Included Accessories:
Dew Shield: Yes
Deviating Optics: No
Corrector: Not included
Prism Rail: Vixen-Style
Carrying Handle: Yes
Transport Case: Yes
Finder Base: Vixen/Skywatcher Level
Tube Clamps: Yes
Eyepiece Adapter: 2-inch / 1.25-inch

General:
Series: EDPH
Carry Case Dimensions: 54 x 24 x 27 cm

Area of Application:
Astrophotography: Yes
Moon & Planets: Yes
Nature Observation: No
Nebulae & Galaxies: Yes
Sun: No (only with appropriate solar filter)

Recommended For:
Beginners: No
Advanced Users: Yes
Observatories: No
