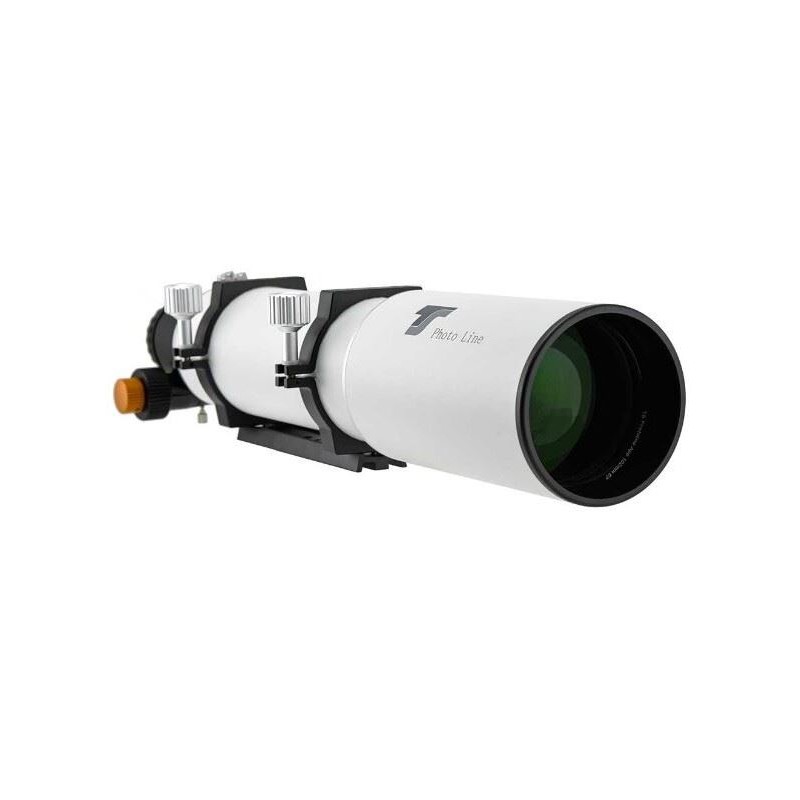

TS Optics Apochromatic refractor AP 102/714 Photoline OTA (61222)

The TS Optics Apochromatic Refractor AP 102/714 Photoline OTA is a high-quality refractor designed for advanced users interested in astrophotography and detailed visual observation of the Moon and planets. Its dual-element objective lens, featuring Ohara FPL53 extra-low dispersion glass combined with lanthanum glass, delivers color correction that matches an FPL53 triplet while cooling down faster. This ensures sharp, color-accurate images even at high magnifications, making the telescope suitable for both wide-field and planetary observation.

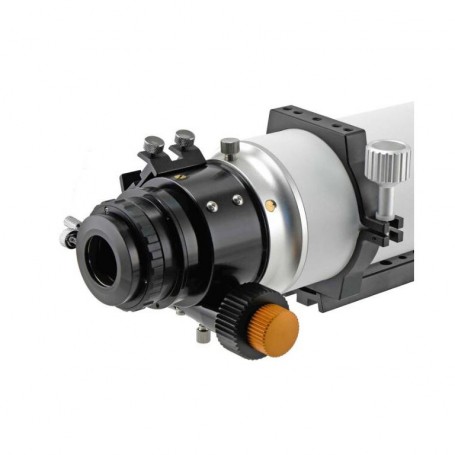

The robust aluminum tube houses a temperature-compensated, adjustable doublet lens, with internal baffles and deep blackening for excellent contrast. The dew cap is retractable for easy transport. The 2.5-inch ball-bearing, gear-driven, rotating focuser offers micro-reduction and full-format illumination, allowing for precise focusing and flexible attachment of accessories via internal threads, a 2-inch socket, or a 1.25-inch socket.

For astrophotography, the f/7 Photoline refractor works best with a field flattener or reducer to maintain round stars at the edge of the image. Compatible accessories include the TS Optics Flattener 1.0x M63, which preserves focal length, and the TS Optics Reducer/Corrector Photoline 0.79x 3", which shortens focal length and widens the field for faster imaging.

Specifications

Optics:
Type: Refractor
Design: Apochromat
Aperture: 102 mm
Focal Length: 714 mm
Aperture Ratio: f/7
Resolving Capacity: 1.35
Limiting Magnitude: 11.8
Light Gathering Power: 210
Maximum Useful Magnification: 204x
Tube Weight: 4.1 kg
Tube Diameter: 105 mm
Tube Material: Aluminium
Carrying Length: 600 mm
Coating: Multiple
Stray Light Baffles: Yes
Tube Construction: Full tube
Dew Cap Diameter: 121 mm
Lens Design: Doublet

Focuser:
Type: Gear rack
Eyepiece Connection: 2-inch
Camera-Side Thread: M68
Backfocus: 123 mm (2-inch) / 161 mm (M68)
Free Aperture: 64 mm
Motorized: Optional
Ring Clamp: Yes
Gear Reduction: 1:10 fine focusing
Rotating: Yes

Mount:
Type: OTA (Optical Tube Assembly)
Mount Included: No

Included Accessories:
Dew Shield: Yes
Finder Base: Not included
Transport Case: No
Prism Rail: Vixen-Style
Eyepiece Adapter: 2-inch / 1.25-inch

General:
Series: Photoline

Area of Application:
Astrophotography: Yes (very good)
Moon & Planets: Yes
Nature Observation: No
Nebulae & Galaxies: Yes
Sun: No (only with appropriate solar filter)

Recommended For:
Beginners: No
Advanced Users: Yes
Observatories: No
