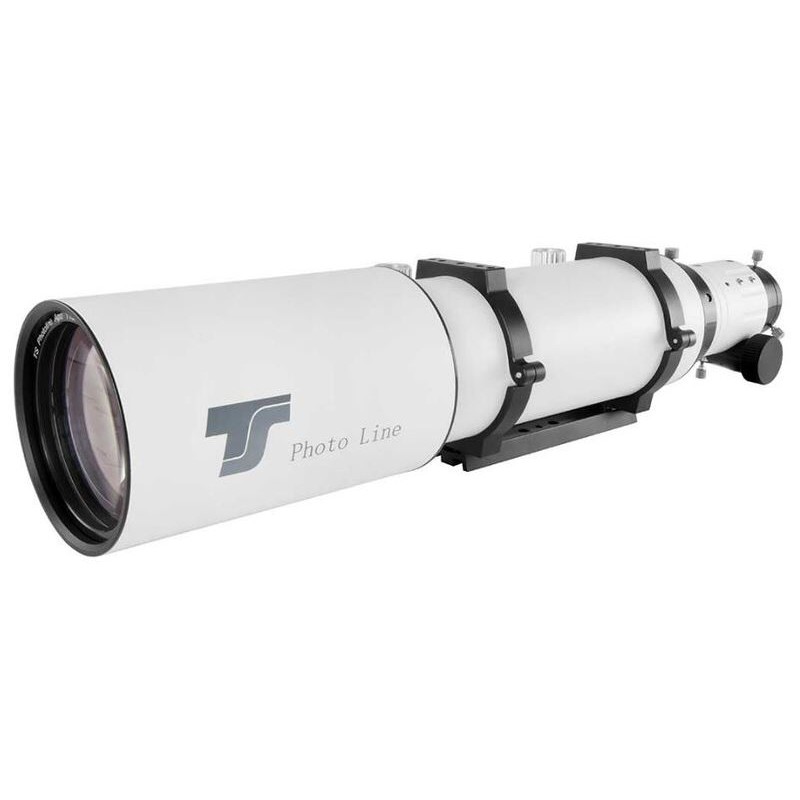

TS Optics Apochromatic refractor AP 115/800 ED Triplet Photoline OTA (51023)

The TS Optics Apochromatic Refractor AP 115/800 ED Triplet Photoline OTA is a high-performance telescope designed for advanced users, especially those interested in astrophotography. Its triplet lens system, made from lanthanum glass and FPL51 by Ohara, Japan, provides superior correction and minimizes color errors, resulting in sharp, high-contrast images. The air-spaced, multi-coated lens is housed in a temperature-compensated, non-tensioned frame, and is fully adjustable for optimal performance. With its fast focal ratio, this telescope enables short exposure times and is suitable for capturing a wide range of celestial objects, from extended nebulae to small galaxies.

TS Optics is a brand of Teleskop-Service.

Specifications

Optics

• Type: Refractor

• Optical design: Apochromat, triplet lens

• Aperture: 115 mm

• Focal length: 800 mm

• Aperture ratio: f/7

• Resolving capacity: 1 arcsecond

• Limiting magnitude: 12.1

• Light gathering capacity: 270

• Maximum useful magnification: 230x

• Tube weight: 6.4 kg

• Tube material: Aluminium

• Carrying length: 710 mm

• Dew cap diameter: 140 mm

Focuser

• Type: Rack and pinion

• Free aperture: 64 mm

• Rotating: Yes

• Camera-side thread: M68

• Eyepiece connection: 2"

• Telescope-side thread: M113

• Gear reduction: 1:10 fine focusing

• Load capacity: 5 kg

• Backfocus: 123 mm and 160 mm

Mount

• Mounting type: No mount included

• GoTo control: No

• Type: OTA (Optical Tube Assembly only)

Included Accessories

• Corrector: Not included

• Eyepiece adaptor: 1.25" and 2"

• Prism rail: Vixen-Style

• Tube clamps: Yes

• Finder base: Not included

• Finder scope: Not included

• Dew shield: Yes

• Transport case: Not included

• Deviating optics: Not included

General

• Series: Photoline

• Suitable for astrophotography: Yes (very good)

• Suitable for nature observation: No

• Recommended for beginners: No

• Recommended for advanced users: Yes

• Suitable for observatories: No

This telescope is an excellent choice for dedicated astronomers seeking premium optical quality and reliable performance for imaging and deep-sky observation.
