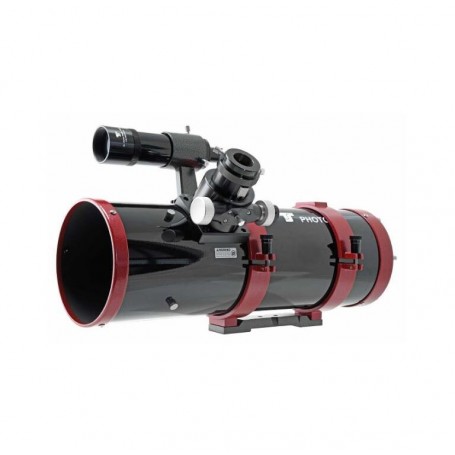

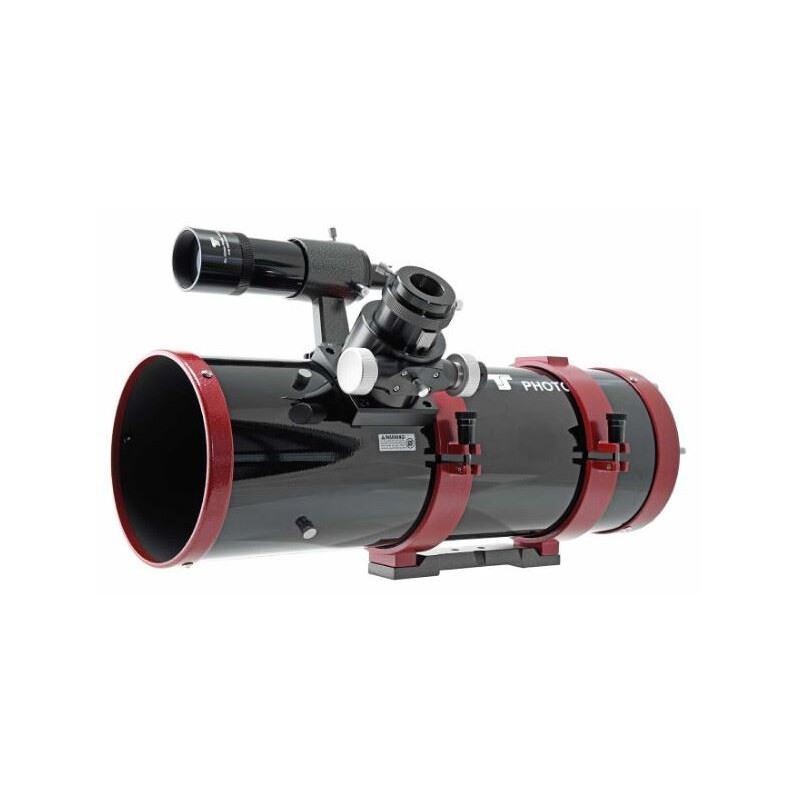

TS Optics Telescope N 154/600 Photon OTA (57274)

This 6-inch Newtonian astrograph is designed with fast f/4 optics, making it highly effective for astrophotography. Its rapid optics allow for shorter exposure times when imaging deep sky objects. Despite its performance, the 6-inch model remains compact and lightweight, so it can be used with a relatively small mount, keeping your entire system portable and easy to handle.

For astrophotography, this telescope is especially suited for wide-field exposures, making it ideal for capturing large objects such as the Andromeda Galaxy or the Orion Nebula. A suitable coma corrector is recommended to address the typical coma found in fast Newtonian telescopes. The secondary mirror is larger than what is needed for visual use, ensuring full illumination for DSLR and CCD cameras. The focuser has a fine reduction ratio for precise focusing and is built robustly to support heavy photographic equipment.

For visual observing, the telescope can also be used without a camera. The fast optics provide impressive results for visual astronomy. Both 1.25" and 2" eyepieces are compatible, and an extension tube is included to help achieve focus when using eyepieces.

For universal use, the telescope is equipped with high-quality tube clamps and a standard Vixen-style prism rail, allowing you to attach it to almost any mount. A finder scope is also included.

TS Optics is a brand of Teleskop-Service.

Specifications

Optics:
Type: Reflector
Design: Newtonian
Aperture: 154 mm
Focal length: 600 mm
Aperture ratio: f/4
Resolving capacity: 0.77 arcseconds
Limiting magnitude: 12.7
Light gathering capacity: 460
Maximum useful magnification: 300x
Tube weight: 5.3 kg
Tube material: Steel
Tube length: 530 mm
Coating: SiO2
Tube diameter: 178 mm
Tube construction: Full tube

Reflector:
Main mirror: Parabolic
Secondary mirror obstruction: 42 mm
Secondary mirror diameter: 70 mm
Central mirror ventilation: No
Primary mirror material: BK7
Reflectivity: 94%
Adjustable: Yes
Protective layer: Quartz

Focuser:
Type: Monorail
Eyepiece connection: 2"
Gear reduction: 1:10 fine focusing
Backfocus: 98 mm

Mount:
Type: OTA (Optical Tube Assembly)
Mount included: No
GoTo control: No

Included accessories:
Finder scope: 8x50
Extension tubes: Yes
Tube clamps: Yes
Eyepiece adapter: 2" / 1.25"
Prism rail: Vixen-Style

General:
Series: Photon

Area of application:
Moon & planets: Yes
Nebulae & galaxies: Yes
Nature observation: No
Astrophotography: Yes
Sun: No (only with appropriate sun filter)

Recommended for:
Beginners: No
Advanced users: Yes
Observatories: No
