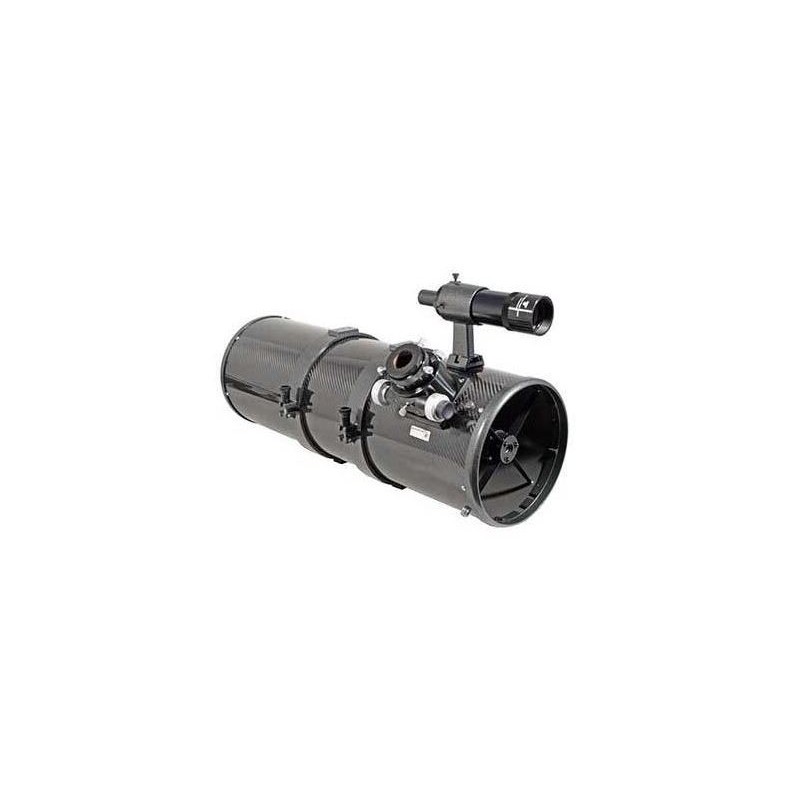

TS Optics Telescope N 203/1000 Carbon Photon OTA (75320)

The N203/1000 is a classic Newtonian telescope suitable for a wide range of astronomical uses. It offers excellent performance for both deep-sky and planetary observation.

This professional Newtonian telescope provides stunning views of distant objects in space. With it, you can see hundreds of stars in the double cluster in Perseus, observe the nebula surrounding the Pleiades, and enjoy the detailed structures of the Lagoon Nebula in Sagittarius. Even the dark lanes of the Trifid Nebula are visible. Using optional nebula filters with the 200 mm aperture can further enhance image contrast.

For lunar and planetary observation, the small secondary mirror and thin support struts allow for detailed viewing. You can spot features like Cassini’s Division in Saturn’s rings, surface details on Saturn, structures in Jupiter’s Great Red Spot, and various features on Mars. Color filters can be used to boost contrast when observing the Moon and planets.

The telescope is also well-suited for astrophotography. The Moon and planets make excellent photographic subjects, and a camera adapter is available. The large aperture allows for short exposure times, improving image resolution. For long-exposure photography with a standard SLR camera, it is recommended to use a guide scope (available separately).

The carbon fibre tube makes this telescope especially suitable for astrophotography. It is lightweight, making it easy to use with smaller mounts, and offers high stability with minimal thermal expansion. This helps keep the focus stable throughout the night. The carbon fibre dew shield is easily extendable, and the tube is lined with black felt to reduce stray light.

TS Optics is a brand of Teleskop-Service.

Specifications

Optics
Type: Reflector
Design: Newtonian
Aperture: 203 mm
Focal Length: 1000 mm
Aperture Ratio: f/4.9
Resolving Capacity: 0.68 arcseconds
Limiting Magnitude: 13.3
Light Gathering Power: 840 times the human eye
Maximum Useful Magnification: 406x
Tube Weight: 8 kg
Tube Material: Carbon fibre
Tube Length: 900 mm
Coating: SiO2
Tube Diameter: 236 mm
Tube Construction: Full tube
Field: 28 mm

Reflector
Main Mirror: Parabolic
Primary Mirror Material: BK7
Secondary Mirror Diameter: 63 mm
Central Mirror Ventilation: Yes
Reflectivity: 94%
Adjustable: Yes
Protective Layer: Quartz

Focuser
Type: Crayford
Eyepiece Connection: 2 inches
Gear Reduction: 1:10 fine focusing
Motorized Option: Available
Backfocus: 65 mm

Mount
Type: OTA (Optical Tube Assembly)
Mount Included: No
GoTo Control: No

Included Accessories
Finder Scope: 8x50
Extension Tubes: Yes
Tube Clamps: Yes
Eyepiece Adapter: 2" / 1.25"
Prism Rail: Vixen-Style
Battery Compartment: Yes

General Information
Series: Photon
Suitable for Moon & Planets: Yes
Suitable for Nebulae & Galaxies: Yes
Suitable for Nature Observation: No
Suitable for Astrophotography: Yes
Suitable for Solar Observation: No (only with appropriate solar filter)
Recommended for Beginners: No
Recommended for Advanced Users: Yes
Suitable for Observatories: No
