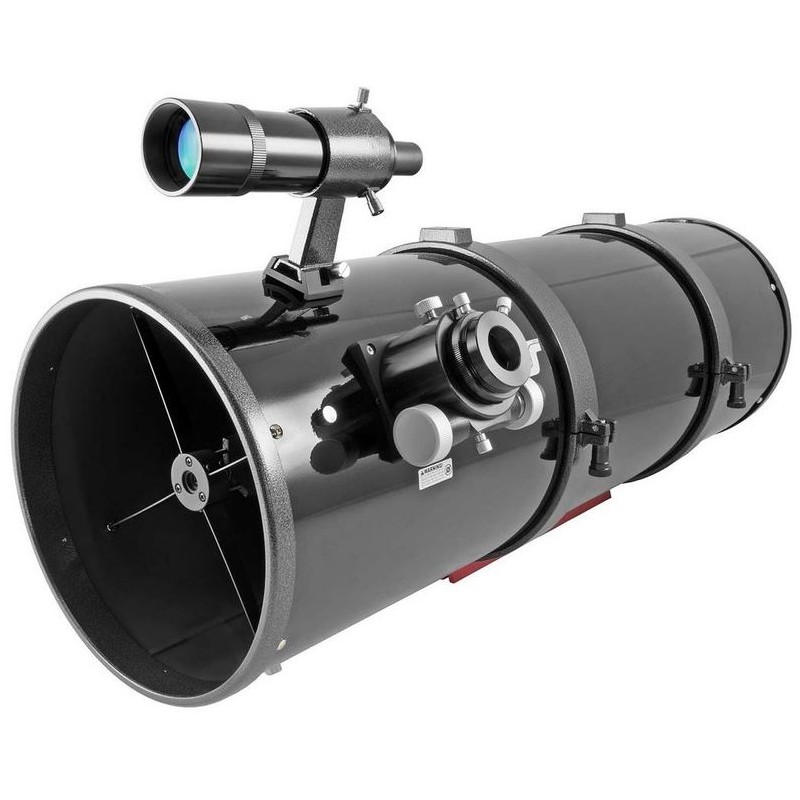

TS Optics Telescope N 254/1016 Carbon Photon OTA (59223)

This telescope is equipped with a carbon fibre tube, making it an excellent choice for astrophotography, while also being highly suitable for visual observation. The carbon fibre construction provides several key benefits: it is lightweight, allowing for use on smaller mounts, and it offers exceptional stability with minimal thermal expansion. These features help maintain stable focus throughout the night, which is especially important for long astrophotography sessions. The dew shield is also made from carbon fibre and can be extended easily. The inside of the tube is lined with black felt to minimize stray light.

The carbon fibre tube is manufactured in Germany.

TS Optics is a brand of Teleskop-Service.

Specifications

Optics
Type: Reflector
Design: Newtonian
Aperture: 254 mm
Focal Length: 1016 mm
Aperture Ratio: f/4
Resolving Capacity: 0.54 arcseconds
Limiting Magnitude: 13.8
Light Gathering Power: 1320 times the human eye
Maximum Useful Magnification: 508x
Tube Weight: 13 kg
Tube Diameter: 303 mm
Tube Length: 980 mm
Tube Material: Carbon fibre
Tube Construction: Full tube
Field: 25 mm

Reflector
Main Mirror: Parabolic
Central Mirror Ventilation: Yes
Reflectivity: 94%
Adjustable: Yes
Primary Mirror Material: BK7
Secondary Mirror Diameter: 88 mm
Protective Layer: Quartz
Aluminising: Aluminium

Focuser
Type: Monorail
Eyepiece Connection: 2 inches
Backfocus: 65 mm
Motorized: No
Ring Clamp: Yes
Gear Reduction: 1:10 fine focusing

Mount
Mount Included: No
GoTo Control: No
Type: OTA (Optical Tube Assembly)

Included Accessories
Finder Scope: 8x50
Prism Rail: Vixen-Style
Tube Clamps: Yes
Extension Tubes: Yes
Battery Compartment: Yes
Eyepiece Adapter: 2" / 1.25"

General Information
Series: Photon
Astrophotography: Yes (very good)
Moon & Planets: Yes
Nature Observation: No
Nebulae & Galaxies: Yes
Solar Observation: No (only with appropriate solar filter)
Recommended for Beginners: No
Recommended for Advanced Users: Yes
Suitable for Observatories: No
