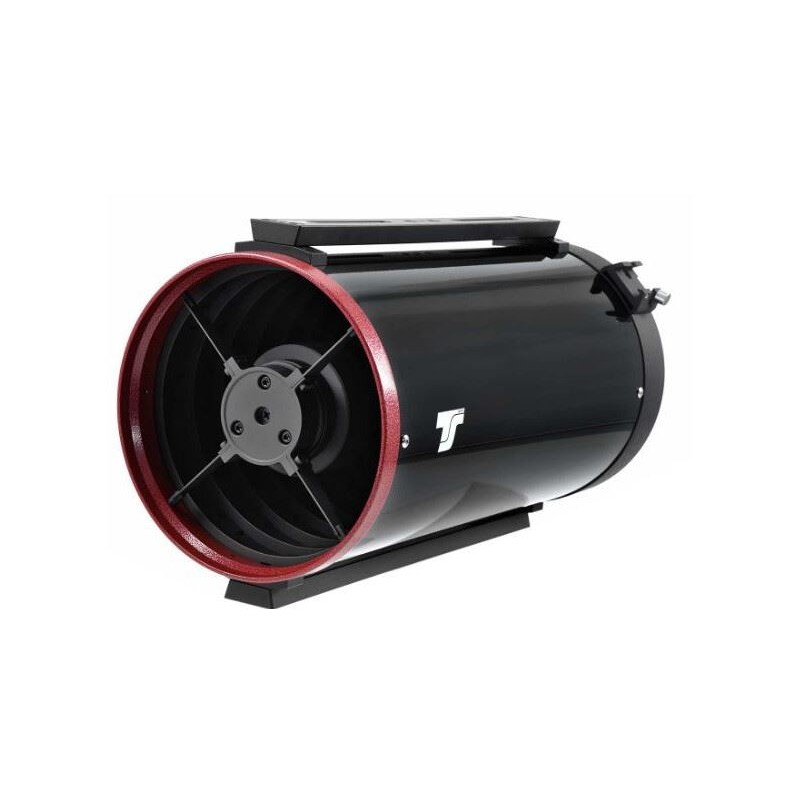

TS Optics Ritchey-Chretien Pro RC 203/1624 OTA (46250)

This telescope is a newly developed model from GSO, now available at a more accessible price point. It is particularly well-suited for astrophotography because it uses a pure reflection system, which eliminates chromatic aberration. The optical design features a hyperbolic primary mirror and a convex hyperbolic secondary mirror, resulting in a coma-free image and a wide field of view. The open tube design and quartz mirrors ensure rapid cooling and minimal issues with dew. This system is also suitable for infrared photography.

Main Advantages

• Ideal for astrophotography

• No chromatic aberration

• Open tube design for efficient cooling

Specifications

Optics

• Type: Reflector

• Optical design: Ritchey-Chretien

• Aperture: 203 mm

• Focal length: 1624 mm

• Aperture ratio: f/8

• Resolving capacity: 0.57 arcseconds

• Limiting magnitude: 13.3

• Light gathering capacity: 840

• Maximum useful magnification: 406x

• Tube weight: 7.5 kg

• Tube length: 580 mm

• Tube diameter: 230 mm

• Tube material: Aluminium

• Tube construction: Full tube

• Coating: Aluminium and silicon dioxide

Reflector Details

• Main mirror: Hyperbolic, made of quartz

• Secondary mirror: Quartz, diameter 85 mm

• Secondary mirror obstruction: 18%

• Reflectivity: 99%

• Aluminising: Aluminium

• Optical finish quality: 1/12 wave

Focuser

• Type: Monorail

• Eyepiece connection: 2 inches

• Gear reduction: 1:10 for fine focusing

Mount

• Optical tube assembly (OTA) only, no mount included

• No GoTo control

Included Accessories

• Prism rail (Vixen-style)

Areas of Application

• Moon and planets: Yes

• Nebulae and galaxies: Yes

• Nature observation: No

• Astrophotography: Yes

• Solar observation: Not recommended (only possible with a suitable solar filter)

Recommended For

• Beginners: No

• Advanced users: Yes

• Observatories: No
