Sky-watcher SynScan kit for Dobson 10" (SW-4255)

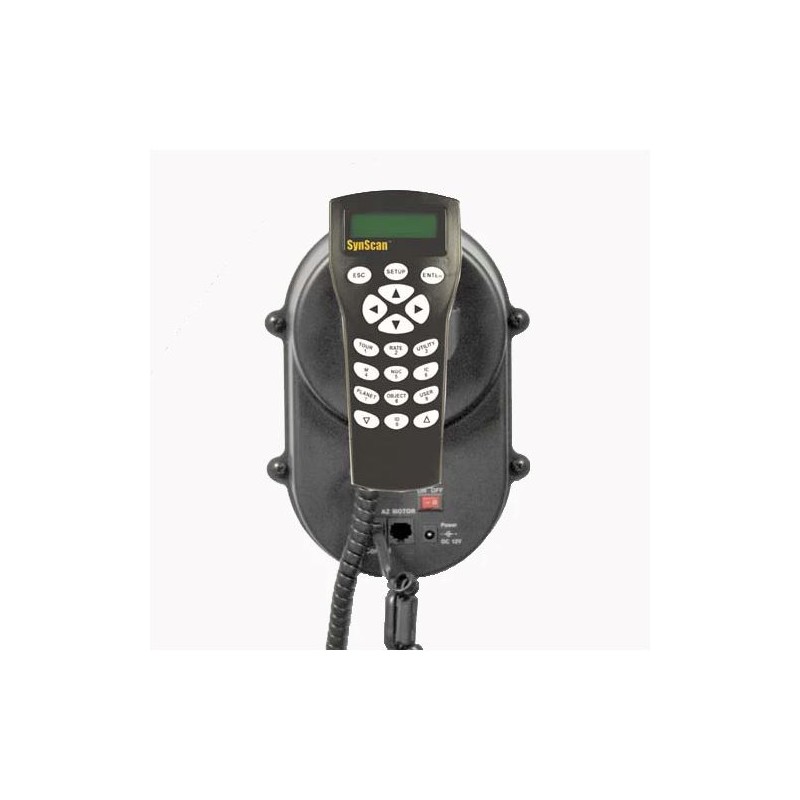

At the heart of the kit is the SynScan controller, the same model used in HEQ5 and EQ6 mounts. This controller enables you to find any of over 30,000 astronomical objects, making observing with a Dobsonian telescope much easier. The system tracks objects automatically, significantly enhancing the observing experience.

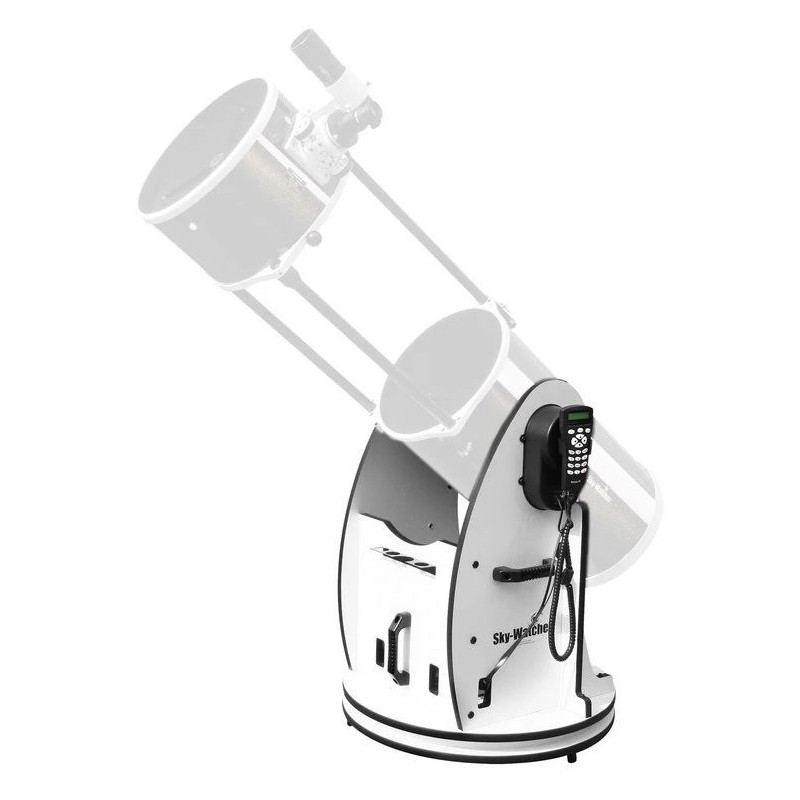

The GoTo Upgrade Kit consists of new telescope base plates (Dobsonian mount base) with pre-installed motors. The kit includes all the parts needed for installation, such as special clamps for the optical tube, motor housings, screws, all necessary wiring, and the GoTo controller itself.

This version is designed for Synta SKDOB 10 (standard version) and BKDOB 10 Tube Flex (collapsible Dobsonian) telescopes.

Technical data:

• Power supply: 10 to 15V, 1A, 2.1mm plug

• Motors: DC servomotors

• Motor encoder resolution: 1,620,000 counts per revolution

• Axis encoder resolution: 11,748 counts per revolution

• Rotation speeds: 1x, 2x, 8x, 16x, 32x, 200x, 400x, 600x, 800x, 1000x

• Tracking modes: Sidereal, lunar, solar

• Tracking type: Alt-azimuth, dual-axis

• Alignment methods: Brightest star, two-star alignment

• Object database: 25 user-defined objects, Messier, NGC, IC, part of SAO catalog, total of 42,900 objects

• Pointing accuracy: Up to 5 arcminutes

Please note:
This portable kit does not come with a mains power adapter; only a car adapter is included. For mains power, a compatible adapter is the ESPE 12V/3A power supply.

Specifications

Catalog Number: SW-4255
Power supply: 12V DC
Rotation speeds: 1x, 2x, 8x, 16x, 32x, 200x, 400x, 600x, 800x, 1000x
Warranty: 24 months
