Sky-watcher SynScan kit for Dobson 14" (SW-4257)

This kit allows you to convert a Dobsonian mount into a GoTo system and includes a new telescope base along with the GoTo drive system. The set contains all parts needed for self-assembly, such as the GoTo controller, optical tube clamps, motors, all necessary wiring, and screws.

The kit features the SynScan controller, also known from the HEQ5 and EQ6 mounts, which can locate 30,000 celestial objects in its database and automatically track them as the sky moves.

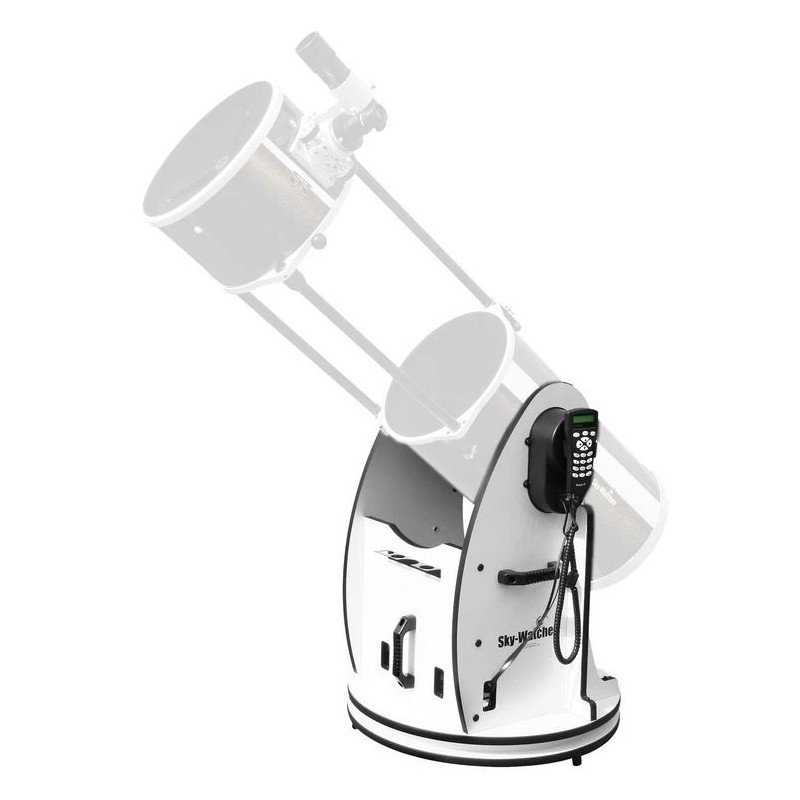

The GoTo Upgrade Kit is provided as a set of base plates for the Dobsonian mount with motors already installed.

If you add the SynScanWifi accessory, you can control your telescope using a smartphone or tablet, increasing the convenience of operation.

Key features:

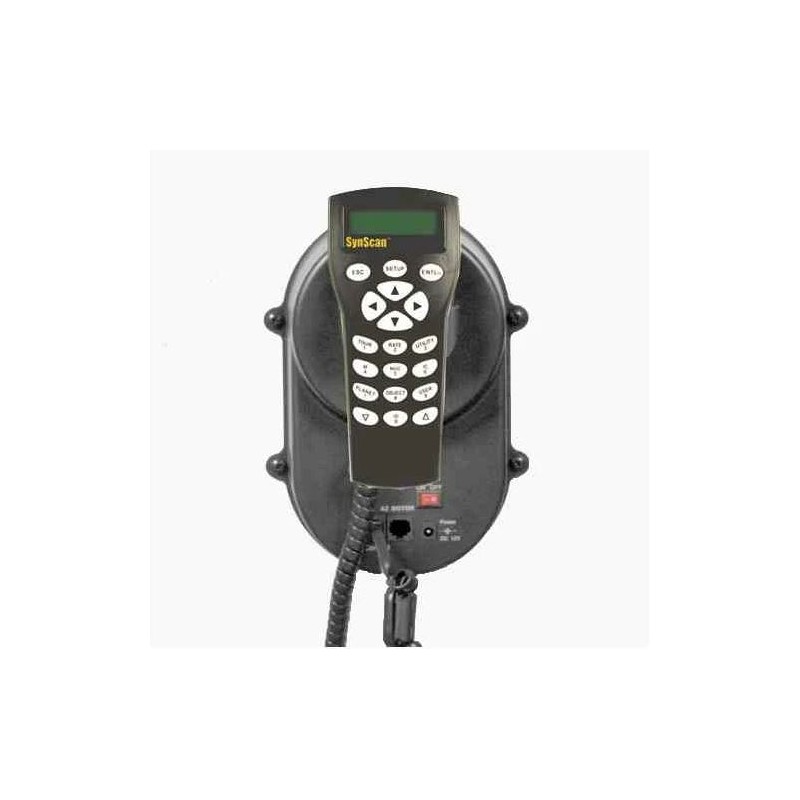

• Controller: AZ SynScan

• Power supply: 10 to 15V, 1A, 2.1mm plug

• Drive: DC servomotors

• Motor encoder resolution: 1,620,000 counts per revolution

• Axis encoder resolution: 11,748 counts per revolution

• Rotation speeds: 1x, 2x, 8x, 16x, 32x, 200x, 400x, 600x, 800x, 1000x

• Tracking modes: sidereal, lunar, solar

• Tracking method: alt-azimuth, dual-axis

• Alignment options: brightest star, two-star alignment

• Object database: 25 user-defined, Messier, NGC, IC, part of SAO catalog, a total of 42,900 objects

• Pointing accuracy: up to 5 arcminutes

Specifications

Catalog Number: SW-4257
Warranty: 24 months
