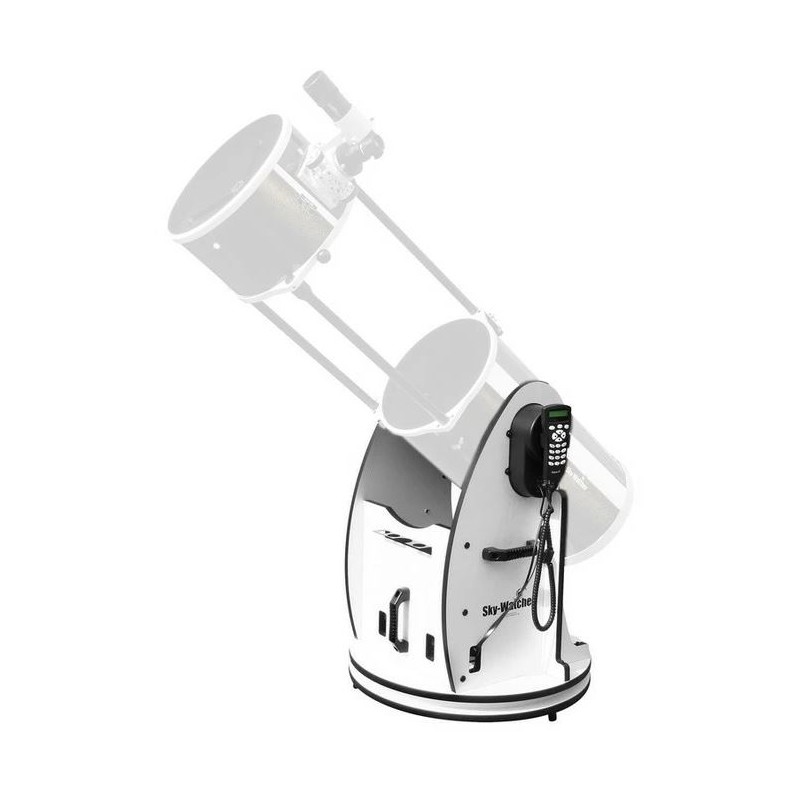

Sky-watcher SynScan kit for Dobson 16" (SW-4258)

This long-awaited kit allows you to upgrade a popular Dobsonian telescope with a full GoTo system.
At the heart of the kit is the SynScan controller, well known from the HEQ5 and EQ6 mounts. This controller can locate any of over 30,000 celestial objects and automatically track them, making observation with a Dobsonian telescope much easier.

The GoTo Upgrade Kit consists of new base plates for the Dobsonian mount, with motors already installed. The kit includes all parts needed for self-assembly, such as special optical tube clamps, motor housings, screws, wiring, and the GoTo controller.

This version is designed for Synta SKDOB 16 (standard version) and BKDOB 16 Tube Flex (collapsible Dobsonian) telescopes.

Technical specifications:

• Power supply: 10 to 15V, 1A, 2.1mm plug

• Drive: DC servomotors

• Motor encoder resolution: 1,620,000 counts per revolution

• Axis encoder resolution: 11,748 counts per revolution

• Rotation speeds: 1x, 2x, 8x, 16x, 32x, 200x, 400x, 600x, 800x, 1000x

• Tracking modes: Sidereal, lunar, solar

• Tracking method: Alt-azimuth, dual-axis

• Alignment options: Brightest star, two-star alignment

• Object database: 25 user-defined objects, Messier, NGC, IC, part of SAO catalog—a total of 42,900 objects

• Pointing accuracy: up to 5 arcminutes

Warranty: 24 months
