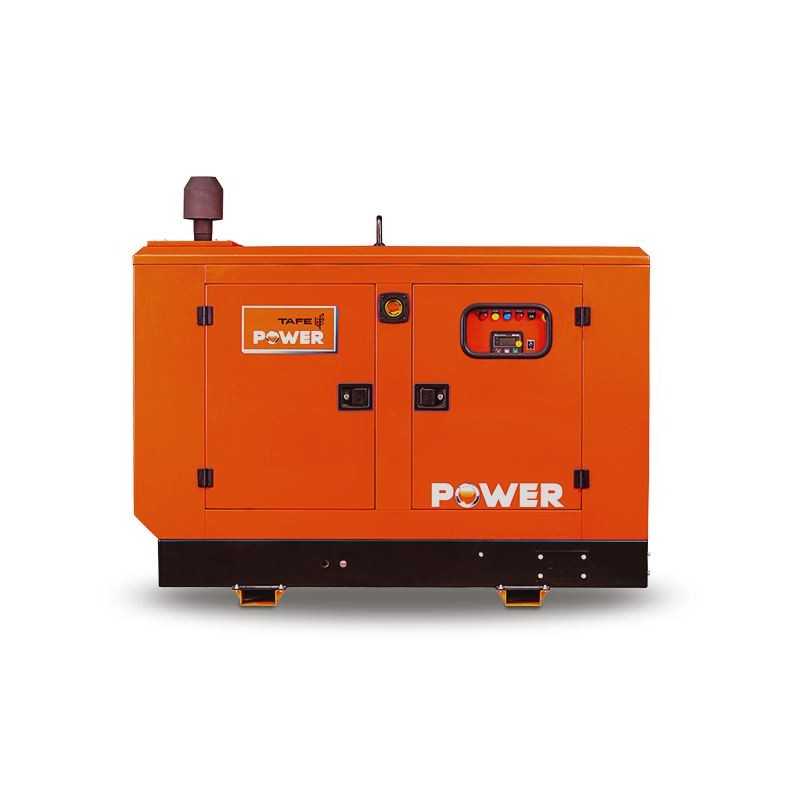

TAFE Power TAF-P-30A Power Generator

The TAF-P-30A is a powerful and reliable power generator manufactured by TAFE Power. This generator has a maximum output of 30 kVA, making it ideal for industrial and large-scale applications that require a high level of power.

The generator comes with options available for AMF (Automatic Mains Failure) or manual control panel. It is designed with acoustic insulation made of PU FR - Acoustic Foam which helps to reduce noise levels. The generator measures 2150 mm in length, 1000 mm in breadth, and 1425 mm in height. It has a fuel tank capacity of 100 L and weighs 1200/1225 kg.

The engine used in the TAF-P-30A is manufactured by TAFE Motors and Tractors Limited and branded as TAFE POWER. The engine model is 422 TC and is turbocharged with three cylinders. The engine has a gross BHP of 48.2 and is compliant with various reference standards, such as Engine - BS: 5514, ISO : 3046, IS 10000, Genset - ISO: 8528. The engine has a displacement of 2945 cc, a compression ratio of 17:1, and is air-cooled. The engine electrical system is 12 Volts DC.

The alternator used in the TAF-P-30A is either a Stamford or Leroy Somer brand, with options for single-phase or three-phase. The voltage options are 220V, 230V, 240V AC for single-phase and 380V, 400V, 415V AC for three-phase. The power alternator type is single bearing, brushless, and has insulation class H. The power factor is 0.8 lag, and the rated speed/frequency is 1500 RPM, 50 Hz / 1800 RPM, 60 Hz.

Overall, the TAF-P-30A power generator is a highly-capable and reliable solution for various power requirements. It has a sturdy build, is equipped with advanced features, and is designed to operate safely and efficiently. The TAF-P-30A is an excellent choice for those seeking a durable and versatile generator that delivers reliable performance in a larger capacity.

TAF-P-30A

Technical Specification

Power 30 kVA

Duty Prime

Control Panel Options Available for AMF / Manual Control

Acoustic Insulation PU FR - Acoustic Foam

Dimensions (Length) 2150 mm

Dimensions (Breadth) 1000 mm

Dimensions (Height) 1425 mm

Fuel Tank Capacity * 100 L

Weight ** 1200/1225 kg

ENGINE

Engine Manufacturer TAFE Motors and Tractors Limited

Engine Brand TAFE POWER

Engine Model 422 TC

Cylinders 3

Aspiration Turbo Charged

Engine BHP (gross) 48.2

Reference Standard Engine - BS: 5514, ISO : 3046, IS 10000, Genset - ISO: 8528

Displacement 2945 cc

Compression Ratio 17:1

Type / Class of Governing Mechanical / A1 (As per BS 5514)

Bore x Stroke 100 x 125 mm

Type of Cooling Air Cooled

Lub Oil Sump Capacity (With Filters) 9.5

Engine Electrical System 12 Volts DC

ALTERNATOR

Brand Stamford / Leroy Somer

Phase 1 Phase / 3Phase

Voltage 220, 230, 240 V AC / 380, 400, 415 V AC

Power Alternator Type Single Bearing, Brushless, Single / Three Phase, Insulation Class H

Power Factor 0.8 lag

Rated Speed / Frequency 1500 RPM, 50 Hz / 1800 RPM, 60 Hz

* Fuel tank can be customized as per requirement

** 1. The weight of the Diesel Generator is approximate (With engine lubricating oil and coolant as applicable, but without diesel fill)
