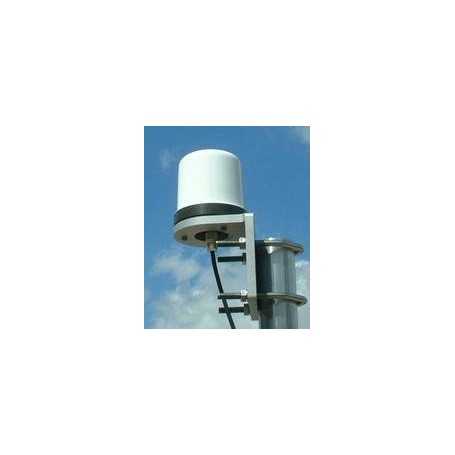

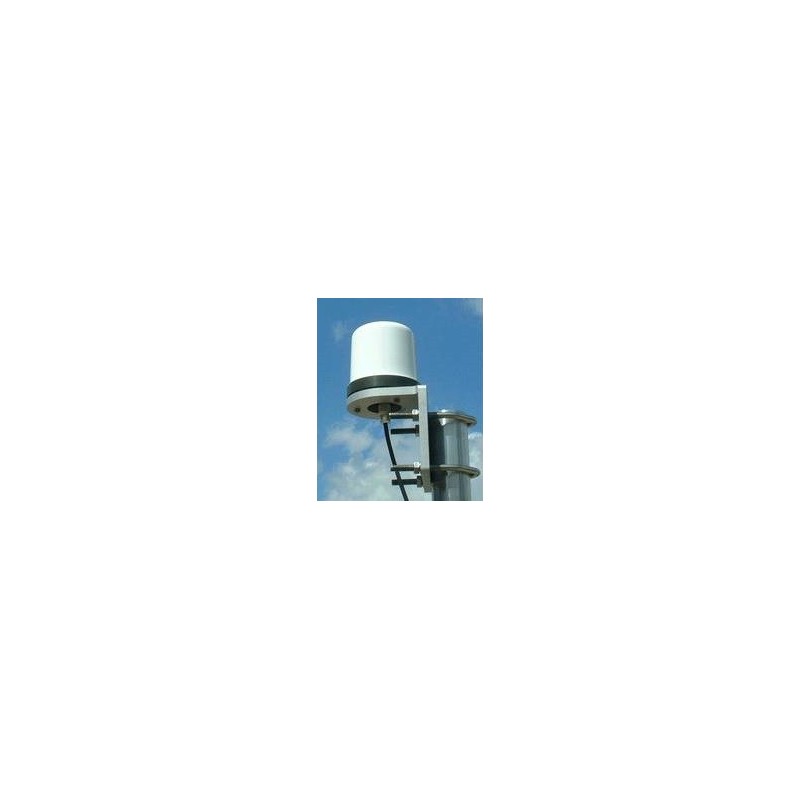

Iridium AD510-4 Passive Antenna - N Terminal (Including Mount Bracket)

Upgrade your satellite communication setup with the Iridium AD510-4 Passive Antenna. Designed for seamless integration with the Iridium satellite network, this antenna provides enhanced performance and reliability. Included with the antenna is a mount bracket and N terminal for easy installation, catering to a variety of applications. Its cost-effective nature and excellent technological capabilities make it the ultimate solution for maintaining strong connections in any environment. Experience fast, dependable communication with the Iridium AD510-4 Passive Antenna in your satellite communication system.
492.00 $
Tax included

400 $ net price (non-EU countries)

Satellite phones rental. Ask for the price and conditions.

Karol Łoś
Product Manager
English / Polski
+48603969934
+48507526097
[email protected]

Description

An extremely robust passive antenna designed for use with all the Iridium series of Satellite Phones for both Marine and Land.

The Iridium AD510-4 provides superior performance with all the Iridium series satellite phones for external mounting in harsh or marine environments. The radomes are 4 mm GRP/Polyester mix whilst the base is milled from hard anodised aluminium, giving an attractive green finish, which is mechanically resilient and resistant to corrosion. The unit is designed for free air mounting and no ground plane is required.

The AD510-4 antenna has a RHCP radiation pattern over the Iridium band and should be mounted to give an unobstructed view of the sky from horizon to horizon.

Connection to the Iridium handset is made with an appropriate coaxial cable from the N type connector on the underside of the antenna. An optional PVC mounting bracket with 1" diameter 14TPI pipe thread is also available.

The Iridium bracket AD510-2 provided with each antenna can be attached to vertical or horizontal spars up to 60mm in diameter using the V bolts provided. Connection to the Iridium handset is made with an appropriate coaxial cable via a TNC on the underside of the antenna.
