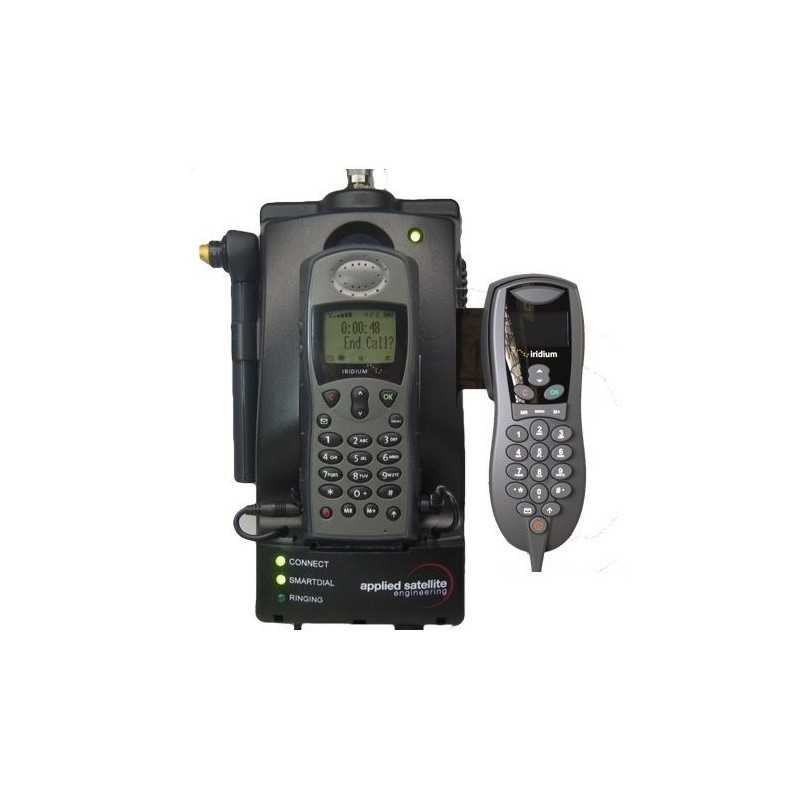

Iridium 9505A Docking Station - MC03 with Handset

Upgrade your Iridium 9505A satellite phone experience with the Iridium 9505A Docking Station-MC03 With Handset. Designed specifically for this phone model, this docking station offers hands-free operation and enhanced audio quality, courtesy of its dedicated handset, built-in microphone, and speakers. Beyond audio benefits, it also serves as a convenient mounting solution to minimize user fatigue during extended use. Simply connect the station to a power source for a dependable and uninterrupted power supply. The Iridium 9505A Docking Station-MC03 With Handset is your go-to solution to maximize the potential of your satellite phone.
3098.11 $
Tax included

2518.79 $ net price (non-EU countries)

Satellite phones rental. Ask for the price and conditions.

Karol Łoś
Product Manager
English / Polski
+48603969934
+48507526097
[email protected]

Description

Applied Satellite Engineering has the ultimate solution for using your Iridium 9505A satellite phone indoors and outdoors. Just dock your Iridium phone in our docking station and you can use satellite communications with standard analog phone sets or your company’s PBX system. When you need to leave your boat or office, just un-dock your handset and take it with you. Never be out of touch again!

Advanced features include:

  • “Smart Dialing.” The docking station knows the correct format for the country that is being dialed and places the call once the number is entered. Smart Dialing eliminates the superfluous “00” IDD code (no more international dialing sequence).
  • Simple Operation. The docking station combines clear LED status lights with the Iridium handset’s graphical display for setup, troubleshooting, programming, and operation.
  • Base Station Ringer. Audible alert of incoming calls.
  • Versatile Power Input. 10 – 32 VDC input range supports power systems on most vehicles and marine vessels. An included universal power adapter allows 100/240 VAC, 47/63 Hz operation. A DC vehicle adapter is also included.

Technical Specifications & Features

  • RJ11 Connect. Connects to an analog phone (single or PBX) including multi-handset wireless phones. Use of a cordless phone with expandable handsets can provide up to eight units within a two-mile range (unobstructed) from the base station
  • Hands-free Connect. Headset/microphone jack offers audio enhancement circuitry to provide excellent voice quality.
  • Data port connect. RS232 port for data connections. Compatible with Iridium’s Direct Internet 2.0
  • Iridium certified product. Additional approvals and certifications include CE and IEC60945

  • Interfaces: POTS (RJ11), RS232, 2.5 mm handsfree
  • Length: 9.75 in.
  • Width: 5.25 in.
  • Height: 3.5 in.
  • Weight: 1.4 lb
  • Operating temperature range: –15°C to +70°C
  • Power: 10 – 32 VDC, or use included power adapter for 100/240 VAC,47/63 Hz
  • Approvals: Iridium, CE, IEC60945 (indoors)
