Sattrans External Antenna for Iridium

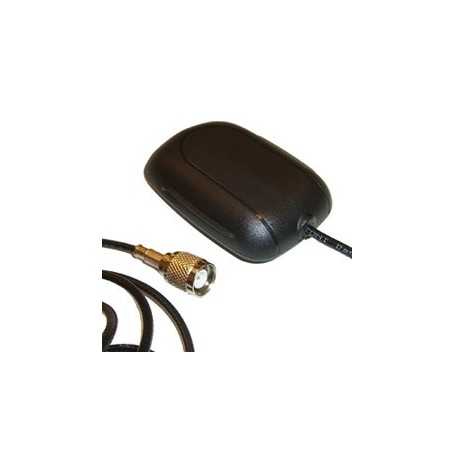

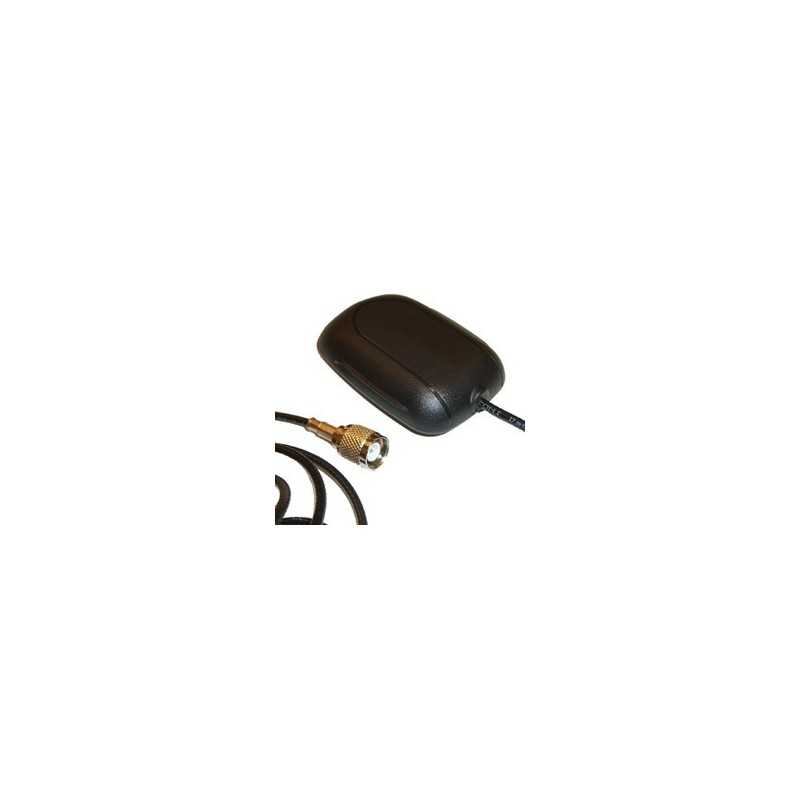

Sattrans High-Performance Magnet-Mount External Antenna for Iridium Satellite Reception

Enhance your satellite communication experience with the Sattrans High-Performance Magnet-Mount External Antenna for Iridium. This robust and efficient antenna is designed to provide superior satellite reception, making it ideal for outdoor applications and ensuring reliable connectivity in remote areas. Its strong magnetic mount allows for easy attachment to large metallic surfaces, such as vehicle rooftops, ensuring stability and optimal performance.

Key Features:

• Optimal Frequency Range: 1616—1626 MHz for effective satellite communication.
• Impedance: 50 Ohm to ensure minimal signal loss.
• Polarization: Right-hand circular polarization (RHCP) for improved signal clarity.
• Axial Ratio: 4 dB Max, providing excellent signal quality.
• Bandwidth: Minimum of 20 MHz at 10 dB, offering wide coverage.
• Return Loss: Minimum of 15 dB, reducing signal reflection.
• VSWR: Less than 2:1, ensuring efficient power transfer.

Mechanical Specifications:

• Dimensions:
  • Length: 2.76 in (7.0 cm)
  • Width: 1.97 in (5.0 cm)
  • Height: 0.55 in (1.4 cm)
• Weight: 3.7 oz (106 g), making it lightweight and portable.
• Operating Temperature: Suitable for extreme conditions, ranging from −40 to +70° C.
• Connector Type: TNC Male for secure connections.
• Cable Length: Approximately 10 feet (3 m) for flexible placement options.

With its robust design and superior performance, the Sattrans High-Performance Magnet-Mount External Antenna for Iridium is the perfect solution for maintaining reliable satellite communication on the go.
