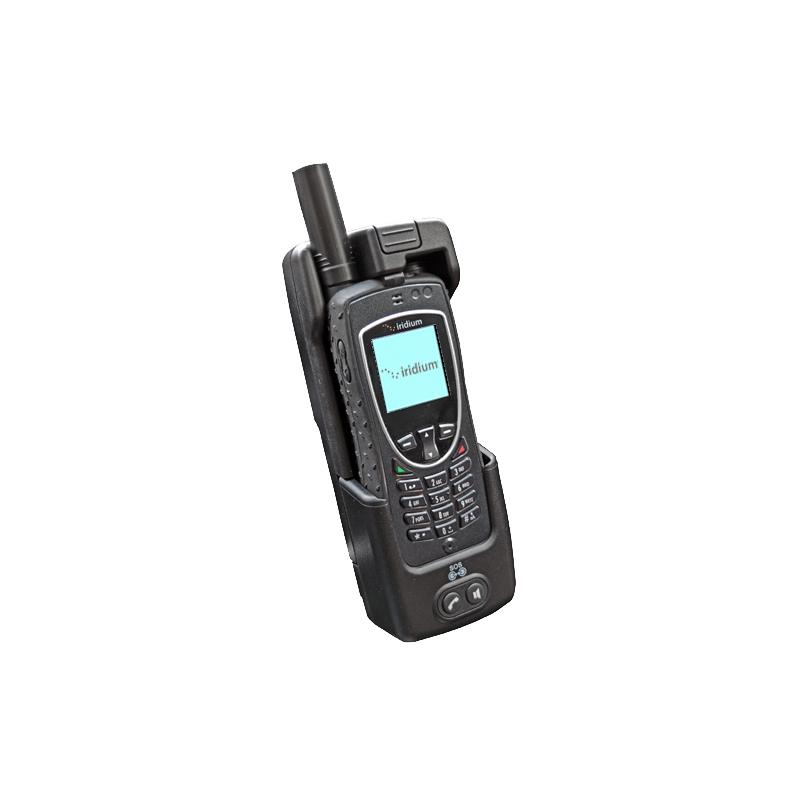

Sattrans Vehicle & Marine Docking Station for Iridium 9575 Extreme

Product Features

• Full duplex hands-free operation of Iridium 9575 satellite phone
• RJ-11 support: make satellite calls with regular analog phone handset or integrate into your PBX
• Direct data pass through via mini-USB data port (no additional PC drivers needed)
• Compatible with GMN Optimizer and Iridium AxcessPoint Wi-Fi device
• Two-mode operation: hands-free or private mode (via optional handset or RJ-11 telephone set)
• Support of Iridium location-based services
• One-push Emergency (SOS) alert function
• Perfect voice reproduction and echo cancellation
• Automatic adjustment to noise conditions
• Mutes car stereo when calling
• Microphone mute feature
• 2.5mm (3/32″) audio jack for a handset or earpiece
• Charges phone battery
• Two-year worldwide warranty
• Certified by Iridium for use on its network

Technical Specifications

• Compatibility: Iridium 9575 Extreme satellite phone
• Operating temperature: -13…176o F (-25…80o C)
• Input power: 10 – 30V DC, max 2A
• Height: 7.5 in. (190 mm) – cradle
• Width: 2.76 in. (70 mm) – cradle
• Depth: 2.3 in. (57 mm) – cradle
• Weight: 2.1 lbs. (1 kg) – in the box
• Ports: one RJ-11 (telephone), one mini-USB (data) and one TNC-female (antenna)

What’s In The Box?

• Iridium Extreme (9575) Phone Cradle with RJ-11 port
• External speaker with mounting parts
• External microphone
• Power cables with fuses
• Mounting screws
• User Manual
