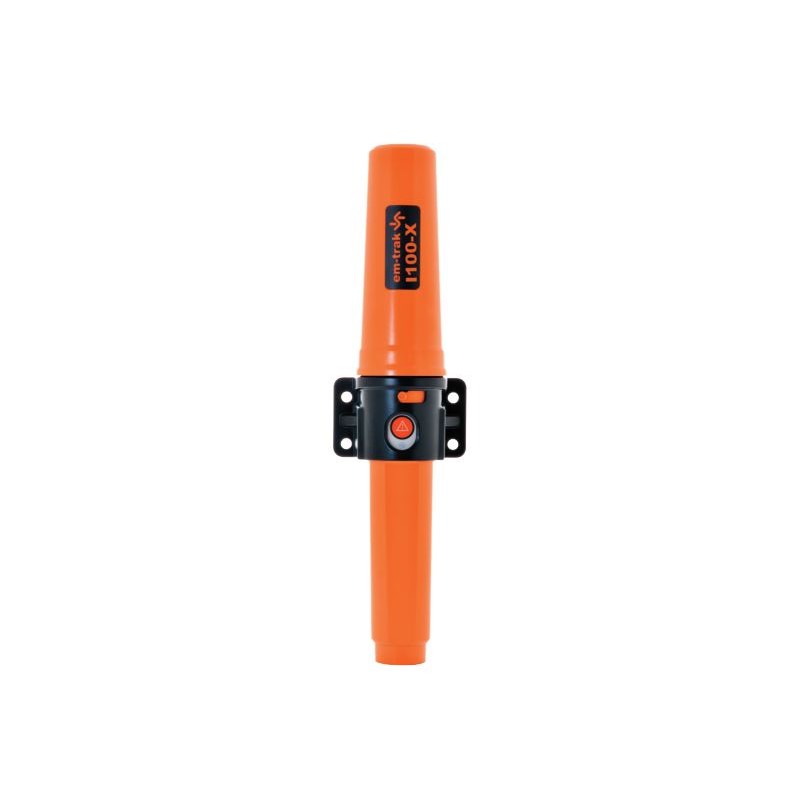

Em-Trak I100-X Identifier - Class B Small Vessel Tracker
743 $ net price (non-EU countries)
Karol Łoś
Product Manager
/
+48603969934
+48507526097
[email protected]
Description
The Identifier I100-X is a ruggedized, fully self-contained AIS Class B vessel tracking transponder, ideal for small vessel tracking and monitoring.
I100-X can power itself using its own internal rapid recharge battery (+120hrs continuous operation), or be connected directly to another onboard power source such as engine, battery or solar with the battery then acting as a backup.
I100-X is fully water and weather proof (IPx8 certified) and ruggedized to operate reliably without maintenance in even the harshest of environments - extreme heat/cold, humidity, shock and vibration.
Each I100-X is supplied as a complete kit which includes the I100-X transponder, mounting bracket and rapid charging dock. Accessories such as direct connect power cable and alert indicator box are also available.
FEATURES
- Certified AIS Class B Transponder
- 5 day continuous use from its internal battery or connect directly to another onboard power source such as engine, battery or solar for a permanent installation
- Takes only 5 hours to completely recharge
- Rugged IPx8 design ensures operational performance
PHYSICAL AND ENVIRONMENTAL SPECIFICATION
Size (h x w) – 370 x 67 mm
Weight – 355g
Operating temperature – -25°C to +55°C
Storage temperature – -25°C to +70°C
Ingress protection – IPx8 (1.1m 30 mins)
ELECTRICAL SPECIFICATION
Battery capacity – 2300mAh
Battery type – 3.7V Li-Ion rechargeable
Battery life (default operating conditions) – 120 hours
STANDARDS COMPLIANCE
AIS standards – IEC 62287-1 Ed. 3. ITU-R M.1371.5
Product safety standards – EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
Environmental standards – IEC 60945 Ed. 4
GNSS performance standards – IEC 61108-1 Ed 2.0
GNSS
Systems supported – GPS & GLONASS
Channels – 72
Time to first fix from cold start – 26s
VHF TRANSCEIVER
VDL access scheme – CSTDMA
Operating frequency – 156.025MHz – 162.025MHz
Channel bandwidth – 25kHz
Receivers/transmitters – 1 x transmitter
AIS transmitter power – 2W (33dBm radiated)
USER INTERFACE
Buttons – SOS
Indicators – Status indicator
CHARGING DOCK
Size (H x W x D) – 110mm x 120mm x 78mm
Weight – 360g
Power supply – 115V / 240V AC
CONFIGURATION DOCK
Size (H x W x D) – 110mm x 120mm x 78mm
Weight – 360g
Power supply – 115V / 240V AC
PC interface – USB (cable supplied)
