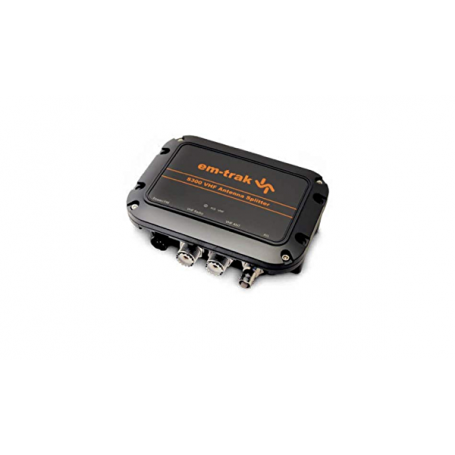

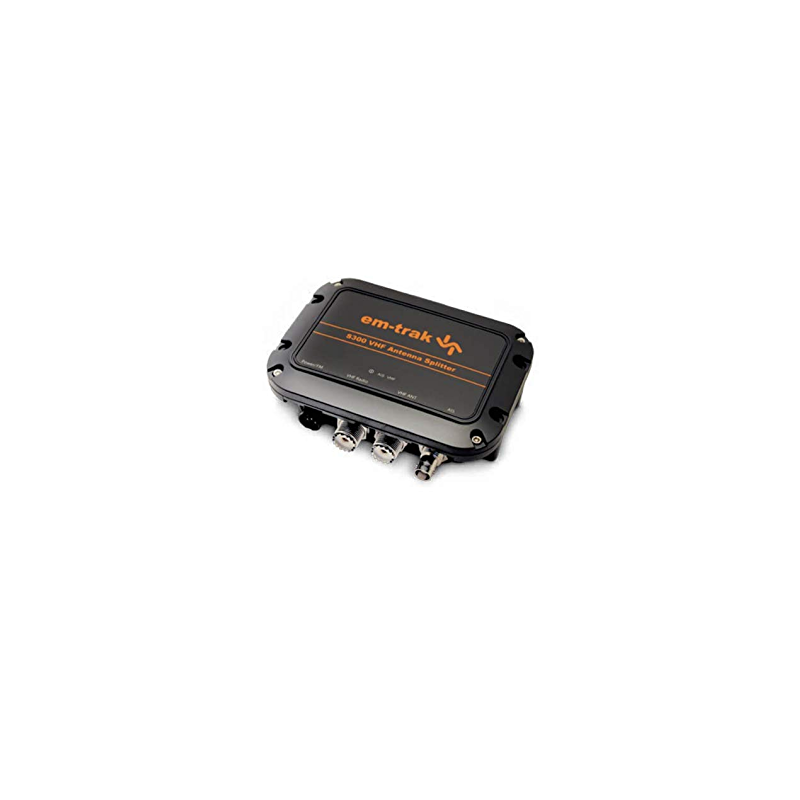

Em-Trak S300 AIS Antenna Splitter VHF

The em-trak S300 provides you with reliable, high performance VHF antenna sharing capability. With the S300 a single VHF antenna can simultaneously support the full operation of your AIS transceiver, VHF radio and FM radio.

After fifteen years of creating marine electronics products we understand the environment within which our products must operate. The S300 is a single small unit which is simple to install and use and has been specifically designed, engineered and manufactured for long term continuous use in even the most extreme marine environments.

The S300’s core technology enables it with superior performance which translates into zero performance loss for the connected devices. The S300 is an ideal complement to a good quality Class B or Receiver where there is an existing VHF antenna available currently used for your VHF radio.

• Zero loss performance
• Auto fail safe operation
• Small and robust
• Plug & play connectivity
• Low power consumption
• Ruggedised, vibration resistant
• Multi-lingual manuals
• Built in fault check & fix system
• Enhanced operating performance

Dimensions & weight

140 x 100 x 50 mm (D x W x H)

280g

RF Interfaces

VHF antenna output – SO239 connector

VHF radio input – SO239 connector

AIS input – BNC connector

Power

12 or 24V DC

Power consumption:

150mA @12VDC, <2W average

RF transceiver

Insertion loss (receive) 0dB

Insertion loss (transmit) < 1dB

Power handling – VHF port: 25W

Power handling – AIS port: 12.5W

Operating frequency range: 156.000 to 163.425MHz
