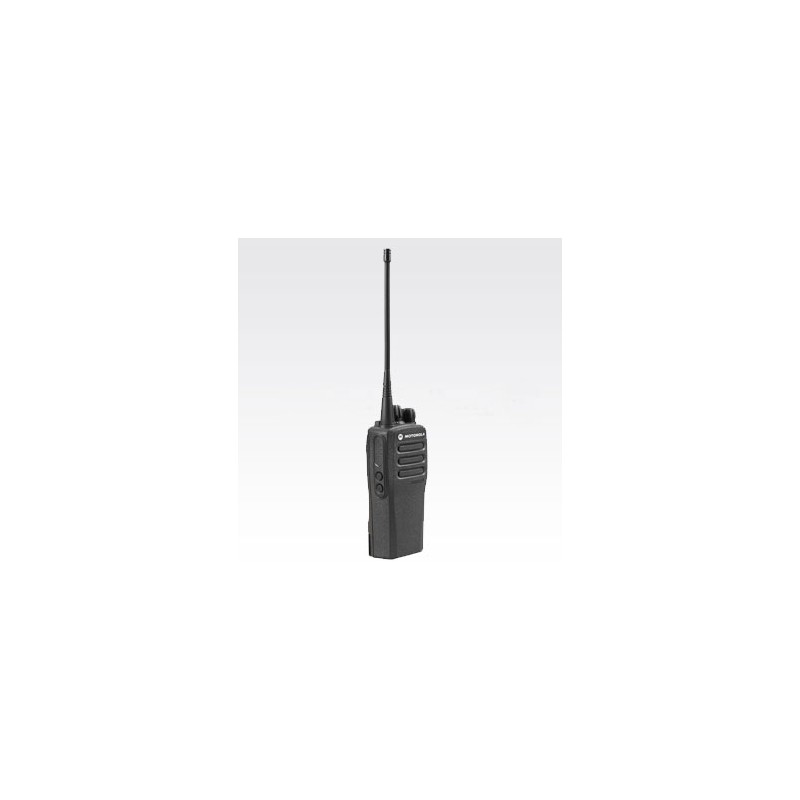

Motorola DP1400 MOTOTRBO UHF Portable Radio

As part of the MOTOTRBO family of radios, the DP1400 has superior audio quality, outstanding coverage, long-lasting battery life and more.

The DP1400 features 32 channels, allowing you to create more targeted communications for the different functions within your workforce.  The radio’s ergonomic design gives users access to all the controls even when wearing gloves, while the two programmable buttons and a wide selection of accessories allow many customisation options for every user.

The DP1400 is your lifeline in critical communications which means it must be built for the toughest situations.  Motorola Solutions tests the DP1400 to MIL-STD-810 to ensure it is built for the job. In addition to the standards testing, we also perform our unique Accelerated Life Testing (ALT) so you can be confident your radio will stand up to many years of use in the field.

Whatever your needs, the DP1400 provides a simple, reliable, cost-effective communication solution to help work teams connect, coordinate and collaborate to get the job done right. By combining the latest analogue and digital two-way radio technology, the DP1400 is perfect for the everyday user who wants to stay connected.

Features

Analogue/Digital - Get all the benefits of digital, including better voice quality, better range and better battery life – but retain compatibility with your existing radio fleet while giving yourself the freedom to migrate to the latest technology at your own pace.

Automatic Gain Control - Automatically compensates for changes in voice level, whether you are speaking softly or loudly, turning your head, or moving the microphone further away from your mouth.

Transmit Interrupt Capability - Enables a supervisor to interrupt a DP1400 user to deliver critical communication exactly when and where it’s needed.

Compatible with Radio Management Suite - Program your radios quickly and efficiently, with Motorola Solutions Radio Management tool. Radios can be programmed in batches to a standardised template, giving error-free results and optimised performance.

Dual Capacity Direct Mode - Utilise the power of the 2-slot TDMA DMR standard to increase calling capacity and minimise licensing costs.

Encrypted Communications - Keep your communications from being intercepted and your channels secure with 16-bit encryption.

Lone Worker - DP1400 can help protect those working on their own by regularly prompting the user to press a button on the radio.  If the user does not respond within a specified length of time, a supervisor or dispatcher is notified that there may be a problem.

IP54 Rated - Dustproof and splashproof, so you can work with confidence in challenging environments.

Performance Characteristics

Frequency range

UHF (403-527 MHz)

Power

Power supply- 7.5V (Nominal)

Battery life (based on a 05 05 90 duty cycle)

9.5 / 12.0 hours (NiMH 1400 mAh)

11.5 / 14.5 hours (Li-Ion 1600 mAh)

15.5 / 19.5 hours (Li-Ion 2250 mAh)

19.5 / 25.0 hours (Li-Ion 2900 mAh)

Audio output

0.5 W (Internal)

Power output

1 or 4W (UHF)

Physical Characteristics

Rotary on off volume

Yes

Tri-colour status LED

Yes

Emergency button

Programmable

Keypad

None

Display

No Display

Weight (with standard battery)

406g (NiMH 1400 mAh)

341g (Slim Li-Ion 1600 mAh)

346g (High Cap Li-Ion 2250 mAh)

348g (Ultra-High Cap Li-Ion 2900 mAh)

Dimensions H x W x D (with standard battery)

128 x 62 x 42 mm (NiMH 1400mAH)

128 x 62 x 39 mm (Li-Ion 1600mAH)

128 x 62 x 44 mm (Li-Ion 2250mAH)

128 x 62 x 44 mm (Li-Ion 2900 mAh)

Radio Features

Programmable buttons

Yes

Voice operated transmit (VOX)

Yes

Time out timer

Yes

Talkaround

Yes

Signalling

MDC/QCII/Digital

Scrambling

Built-in

Scan types

Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group

Selective calling

Yes

Digital Private Line

Yes

Private Line

Yes

Monitor Permanent (Sticky) Monitor

Yes

CPS (Customer Programming Software)

Yes

Channel spacing (kHz)

12.5, 25, 20, 12.5 (6.25 efficient)

Number of channels

32

Channel scan

Yes

Call tones

Yes

Busy channel lockout

Yes

Audio gain control

Yes

Integrated voice and data

Yes

Advanced Software Features

Remote Monitor

Technology

System type

Conventional, TDMA

Digital technology

Yes

User Environment

Noise reduction software

Yes

Accelerated life test

Yes

Mil spec

810 C, 810 D, 810 E, 810 F, 810 G, 810 H

IP Standards

IP54
