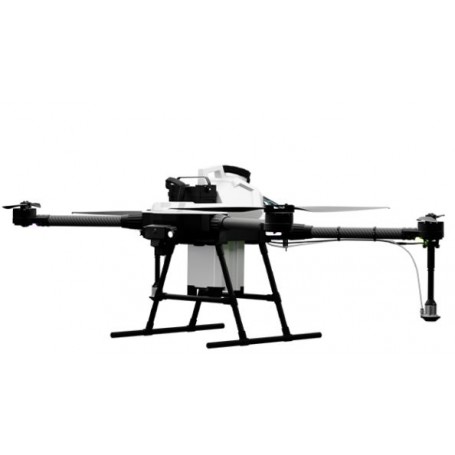

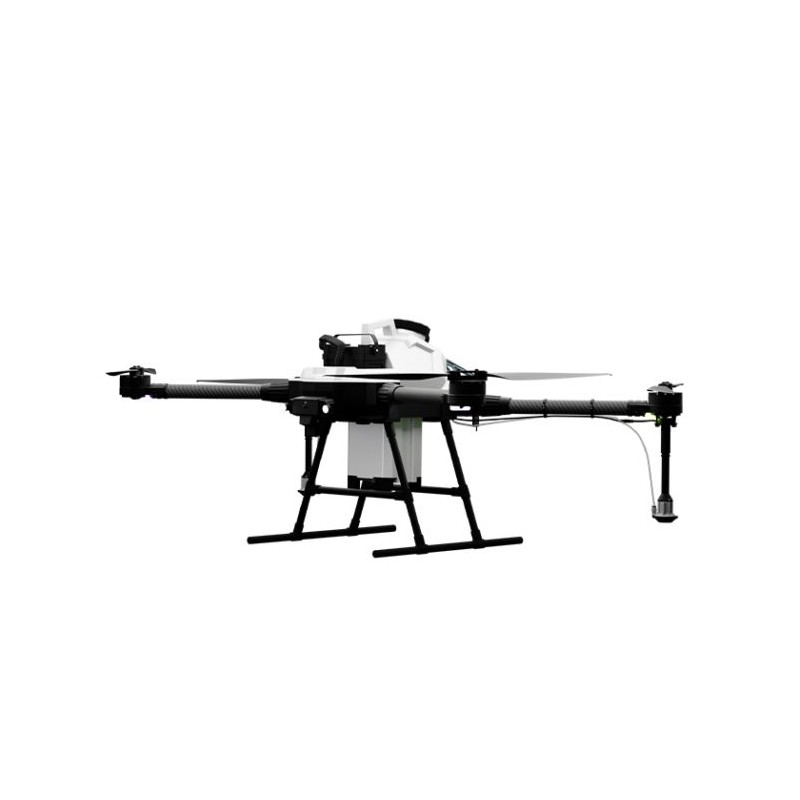

ABZ Innovation L10 PRO Professional Spraying Drone

The ABZ Innovation L10 PRO spray drone was designed mainly with domestic and European conditions in mind, offering agricultural producers safe, convenient, and easy-to-use drone technology with continuous support and service.

Combining the advantages of preceding models on the market with the vast experience we have gained during our presence and operation in the drone industry, we have now created our own UAV.

The L10 PRO has a Plug & Play option for any EMLID RTK base station via LoRa antenna, for positioning with centimeter-level accuracy. It can also be equipped with a Trichogramma spreading system and can be converted in minutes.

Expanded version - L10 PRO

• L10 CDA spraying system
• CE Certification
• + L10 PRO RTK system - EMLID Reach RS2 - multi-band RTK GNSS receiver with centimetre precision
• + Can be equipped with a Trichogramma spreading system

CDA Technology (Controlled Droplet Application) - DROP UNDER CONTROL

The secret of effective spraying lies in the even and targeted distribution of the liquid.

In CDA technology, with the power of a brushless motor, the working fluid is supplied through low pressure line to the rotating disk. Through centrifugal force, droplets break away from the edge maintaining a uniform size. The lack of dependence between flow rate setting and droplet size allows flexible control and setting of droplet size. This also gets rid of oversized and undersized droplets, which means no waste and no unnecessary contamination. The force of the propeller air directs the liquid downward reaching the lower parts of the plants

Performance of CDA TECHNOLOGY

L10 and L10Pro drones provide precise coverage thanks to intense airflow with CDA technology

• No pressure required
• Adjustable droplet size +/- 5%
• Suitable for organic farms
• Up to 95% less water
• Up to 60% less pesticides
• Further savings with precision spraying
• Flow rate: 4.8L/min
• Minimal spray drift

The L10 PRO’s positioning & navigation system

GNSS

The Multiband antenna connects to twice as many satellites for more reliable, more accurate GNSS-based positioning – even in difficult terrain.

RTK

Plug & Play option for any EMLID RTK base station via LoRa antenna: once the base is located, no internet connection or RTK provider is required. Thanks to the direct connection between the base and drone, the pilot and the drone can move freely within an 8km radius. Using the LoRa antenna, RTK correction data is reliably and stably delivered to the drone, even in difficult terrain – or in case the remote control’s signal is lost.

Trichogramma release system

The ABZ Innovation L10 PRO is an upgraded version of the L10 with additional features and capabilities.

The precise and effective Trichogramma (or parasitic wasp) spreading system utilizes one of the most widely used biological control methods. Its 8-liter tank can hold up to 800-1200 pellets – depending on pellet size. This allows up to 8-12 hectares to be treated in one take-off, amounting to an hourly performance of up to 36 hectares. This versatile dispensing system is only available for the L10 PRO and M12 models, making these convertible to spray or spread Trichogramma very easily, within minutes. The standard L10 is not equipped to receive the dispenser system.

Technological benefits of using ABZ Innovation professional spraying drones

• Response to EU changes in reducing fertilizer and crop protection product use
• Saving liquid due to directing droplets downward with propeller air
• Precise spraying only in areas requiring intervention
• No loss under the wheels of agricultural machinery
• Independence from the inability of heavy machinery to drive on wet ground
• Greater resistance to harsh and windy weather conditions
• Environmentally and economically powered without fuel
• Enabling accurate spraying of trees in orchards

Key features:

• Capacity 10L
• Max hover time: 26 min (18 kg)
• Hovering precision: ±10 cm (RTK)
• Dimensions: 1460 x 1020 x 610 [mm]
• Propeller dimensions: 30 x 9 inches
• Motor dimensions: 81 x 20 mm
• Battery voltage: 44.4V
• Battery weight: 4.7 kg
• Capacity per hectare: 10 ha/h
• Droplet size adjustment: 40 - 1000 µm
• Working belt width: 1,5 - 6 m
• Maximum liquid flow rate: 4.8L/min

Flight control:

• triple-redundant IMU
• centimetre-level RTK accuracy
• EMLID RTK base station optional for L10 PRO

Power transmission:

• 16000mAh battery
• FOC system
• IPX7 rated brushless motors

Advanced flight planning:

• Joint development with Széchenyi University of Győr
• On site: based on the position of drone with RTK accuracy
• In advance: SHP or KML based on survey of your choice
• Adjustable droplet size
• Automatic spray control
• Route planning between lines, above lines
• Predefined spray-pattern settings

Portability:

• Foldable frame
• 3.2 kVA generator: 6-8 take-offs/hour
• 6.3 kVA generator: 12 take-offs/hour

Included in the set:

• Professional spraying drone ABZ Innovation L10 PRO
• Herelink Controller

Optional:

Battery and charger

• Tattu Plus 1.0 16000 mAh battery with 12 cells for ABZ Innovation L10 series and M12
• PC3000H LiPo/LiHV Four-Channel Battery Charger

Agricultural payloads

• EMLID Reach RS2 - multi-band RTK GNSS receiver with centimetre precision
• SkyInnov Trichogramma spreading system with full integration

Full technical specifications:

General specifications

Total weight (W/A batteries) 13.6 kg

Max. take-off weight 29 kg

Dimensions 1460 x 1020 x 610 [mm]

Max. hovering time 26 min (18 kg) 12.5min (29 kg)

GPS GPS, GLONASS, Galileo, BEIDU

Hovering precision ±10 cm (RTK) ±2m (without RTK)

Rotor dimensions 30 x 9

Motor dimensions 81 x 20 mm

Motor KV value 100 KV

Battery capacity 16000 mAh

Battery voltage 44,4V

Battery weight 4,7 kg

Spraying

Per Hectare Performance 10 ha/h

Spraying system CDA

Number of Nozzles 2

Droplet size 40 – 1000 μm

Adjustable droplet size ✔

Drift LOW risk

Adjustable working width 1,5 - 6 m

Spot spraying ✔

Pump type Membrane

Maximum flow 5L/min

Pump operating voltage 48V

Execution of work

Technology developed for

European Agricultural conditions ✔

IP protection IP54

Easy transportability ✔

Modular payload attachability ✔

Obstacle avoidance RTK-based

FPV camera Forward + Downward

Battery charging time ~11 min

Effective signal range of RC ~8 km

Altitude measurement LiDAR

Flight planning

Software source code Open

Flight plan creation on a pc ✔

Handling of SHP and KML files SHP i KML

Downward facing camera for

obstacle selection ✔

RTK base in the package ✔

Data security ✔

No data transmission to remote servers ✔

Flight

Max. pitch anglec 30°

Max. operating flight speed 7 m/s

Max. level speed 24 m/s

Max. flight altitude 120 m

Max. tolerable wind speed 10 m/s
