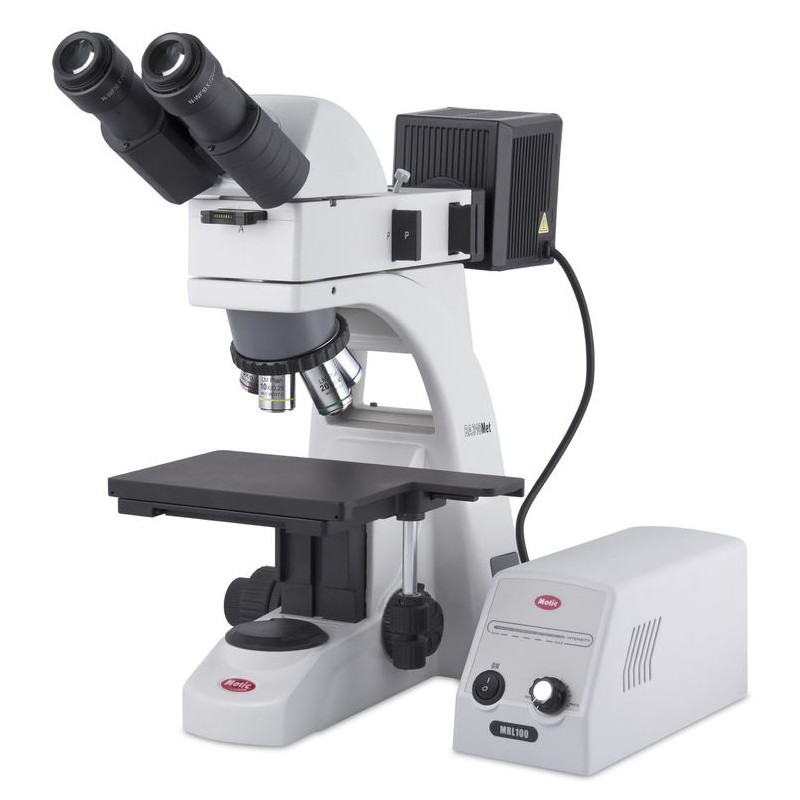

Motic BA310 MET binocular microscope (45005)

The BA310MET series is a robust and affordable line of metallurgical microscopes designed for incident light applications. These microscopes are ideal for industrial quality control of opaque materials such as minerals and metal samples, providing efficient and reliable performance. The BA310MET is also well-suited for educational settings in engineering and materials science, where ease of use and cost-effectiveness are important. Motic has focused on optimizing the BA310MET for daily industrial environments, ensuring both user comfort and work efficiency.

The Epi-Illuminator uses a powerful 12V/50W halogen light source, which can be easily replaced with an LED module for different color temperatures (4500K or 6000K). Built-in field and aperture diaphragms help reduce stray light and enhance contrast. The new Long-Working Distance LM Plan objectives feature multi-layer coatings for improved image quality, and the fully corrected tube lens produces intermediate images without color fringes. Digital documentation is straightforward through the trinocular port, and the design includes a standardized ISO photo exit. Depending on the model, stages with various sizes and travel ranges are available, including options for transmitted light and handling larger samples.

Objectives
The BA310MET series features a new generation of LM Plan Achromatic objectives made from high-quality glass, following the CCIS® Optical concept. Multi-layer coatings provide enhanced contrast and image quality. The reversed, ball-bearing 5-fold nosepiece ensures precise alignment and repeatability. For higher resolution needs, EC-M Plan objectives are available as options.

Illumination
The Epi-Illuminator is based on a 12V/50W halogen lamp with an external power supply to minimize heat near the microscope. The halogen bulb can be replaced with a 3W LED module (4500K or 6000K). The BA310MET-T model also features built-in 6V/30W halogen Koehler illumination for transmitted light, also upgradeable to LED.

Standard Specifications BA310MET / MET-T
Optical System: Color Corrected Infinity Optical System (CCIS®)
Eyepieces: N-WF 10X/20 mm, with diopter adjustment
Observation Tubes: Widefield binocular 30° (F.N. 20) or widefield trinocular 30° (F.N. 20), light distribution 100:0/20:80
Nosepiece: Reversed quintuple
Objectives: CCIS® LM Plan 5X, 10X, 20X, 50X; 100X (optional)
High NA Objectives: CCIS® EC-M Plan 20X and 50X (optional)
Stage:

• BA310MET: 180 x 140 mm surface, 75 x 50 mm movement, coaxial controls

• BA310MET-T: 240 x 140 mm surface, 75 x 50 mm movement, coaxial controls

• BA310MET-T: 300 x 180 mm surface, 150 x 100 mm movement, coaxial controls
  Focus: Brass gears, Z-axis movement 30 mm, fine focus with 2 µm minimum increment
  Incident Light: 12V/50W halogen illuminator with external power supply, exchangeable with 3W LED (4500K, 6000K)
  Transmitted Light (BA310MET-T): Built-in 6V/30W halogen Koehler illumination, exchangeable with 3W LED
  Condenser (BA310MET-T): N.A. 0.85, focusable and centrable
  Specimen Thickness: Maximum 30 mm

Specifications
Magnification: 500x
Eyepiece: 10x
Lens Type: Infinity corrected, CCIS LM plan achromatic, DIN 45 mm
Objectives: 5X/0.13 (WD 20.3 mm), 10X/0.25 (WD 17.5 mm), 20X/0.4 (WD 8.1 mm), 50X/0.55 (WD 8.4 mm)
Condenser: Abbe condenser (N.A. 1.25), with slider slot, centering, and iris
Lighting: Incident light
Lamp Type: Interchangeable halogen and LED
Optical System: Infinity
Brightfield: Yes

Mechanics
Type of Build: Binocular
Focusing: Coarse and fine movement
Viewing Posture: 30° oblique viewing, 360° rotating head
Specimen Stage: Cross table
Revolver: 5-position
Wide-angle Eyepiece: Yes

General Information
Width: 200 mm
Color: Grey/black
Weight: 12,700 g
Height: 450 mm
Length: 465 mm
Series: BA-310 MET

Field of Application
Industry: Yes
Metallurgy: Yes
Materials Technology: Yes
Mineralogy: Yes
Semiconductor Technology: Yes
