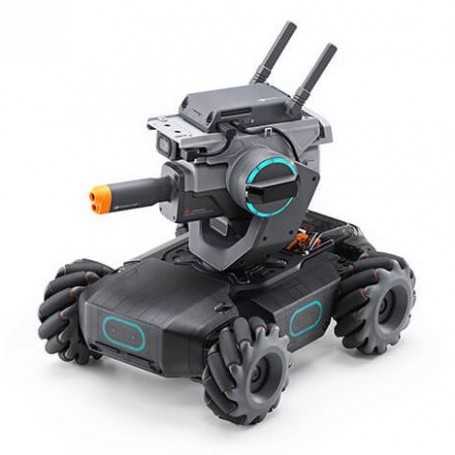

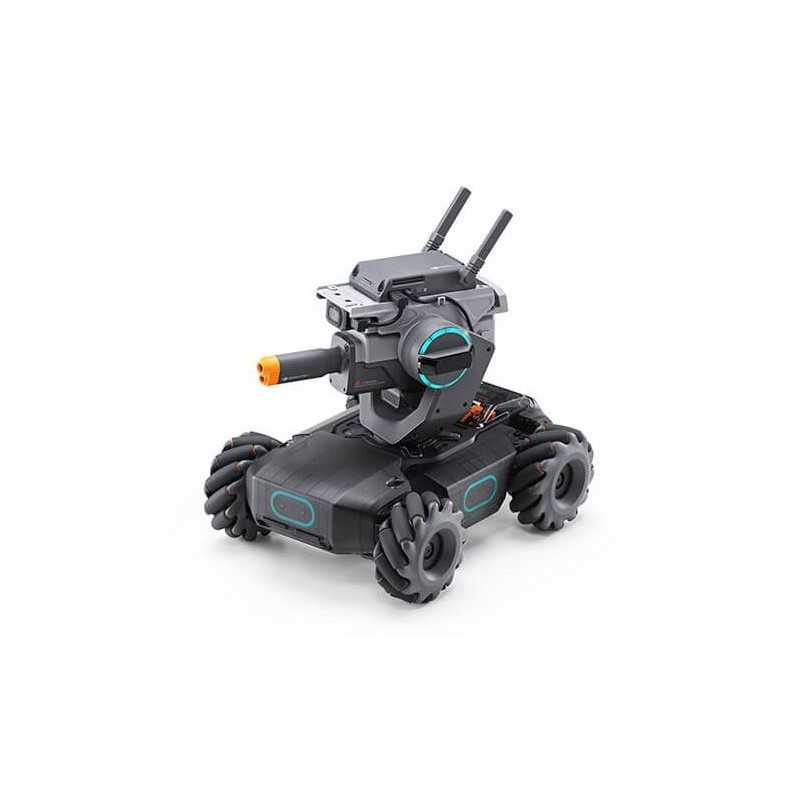

DJI RoboMaster S1 Educational Robot

Inspired by DJI's annual RoboMaster robotics competition, the S1 provides users with an in-depth understanding of science, math, physics, programming, and more through captivating gameplay modes and intelligent features.

• 46 Programmable Components
• 6 Programmable AI Modules
• Low-latency HD FPV
• Scratch & Python Coding
• 4WD Omnidirectional Movement
• Intelligent Sensing Armor
• Multiple Exciting Battle Modes
• Innovative Hands-On Learning

Designed to Win

The S1‘s design is a striking example of machine efficiency. With powerful configurations, the S1 lets you create, conquer, and push your limits as far as you’re ready to go.

Intelligent Controller

Using a powerful CPU, the Intelligent Controller can simultaneously support functions such as low-latency high-definition image transmission, AI computing, and programming development. It also coordinates transmission seamlessly to execute command signals.

Blaster

The S1 Blaster uses LED lights to outline launch trajectories for its gel beads and infrared beams. Vivid sound effects and recoil action add to the experience for an immersive battle simulation. For added safety, the Blaster uses non-toxic gel bead projectiles and even features limitations on launching rate and angle.

2-Axis Motorized Gimbal

The gimbal’s yaw/pitch rotation range is 540° × 65°, offering an expansive field of view for the FPV camera. The built-in direct drive brushless motor works together with the IMU and advanced algorithms to allow gimbal movements with a vibration control accuracy within ±0.02°, delivering smooth image transmission and a precision control experience.

Mecanum Wheels

The S1 comes with four Mecanum wheels, each with 12 rollers that allow omnidirectional movement and precision control. Front axes suspension allows for added versatility during operation.

High-Performance Motor

The S1 comes with a customized M3508I motor that features an integrated FOC ESC with an output torque of up to 250 mN•m. Linear Hall-effect sensors with advanced algorithms allow closed-loop control for added precision. Additional safety mechanisms deliver outstanding stability.

Intelligent Sensing Armor

Six intelligent armor panels cover the S1 to detect gel bead or infrared beam strikes. The referee system can analyze and communicate hit data, incorporating it into gameplay in real time.

Learn by Doing

The RoboMaster S1 bridges the digital world with the real one, bringing abstract theories to life through practical operations. The S1 supports Scratch and Python programming languages, allowing users to experience math, physics, and AI technology in a cutting-edge and inspiring way.

Scratch & Python Programming

The S1 supports the Scratch and Python programming languages. This allows you to take your abilities to the next level, whether you are new to coding or are already on your way to becoming an expert.

Scratch 3.0

Classic visual programming language used in primary and secondary schools worldwide.

Python

Widely used in the field of artificial intelligence.

Powerful programming blocks enable you to explore a series of new functions with your S1. For example, new Scratch blocks for line follow allow the S1 to make turns at T-junctions and intersecting roads. Additionally, with new Scratch and Python interfaces for the speaker module, you can add musical notes to the action or even write a song for your S1 to play.

Innovative Hands-On Learning

Road to Mastery

Road to Mastery offers project-based courses that will enhance users’ understanding of programming languages. From robotics applications to AI technology, with different projects for both beginners and experts

RoboAcademy

RoboAcademy offers a curriculum of videos and programming guides. In-depth videos introduce robotics in simple but profound ways, giving users insightful and relevant scientific knowledge. Programming guides offer detailed explanations of various modules, making it easier for users to enjoy the fun of programming.

Endless Possibilities

Up to 46 customizable components give you unlimited space for innovation, enabling you to grow and learn in an exciting way that expands the capabilities of your S1, and yourself. Six PWM ports and one SBus port support customized accessories, granting further options.

Experience AI Technology

AI technology lets the S1 recognize gestures, sounds, and even other S1 robots. Playing with the RoboMaster S1 opens the doorway to AI learning, giving you a practical introduction to the technologies of tomorrow.

Get Started with Automatic Driving

By utilizing Vision Markers to create "traffic lights" and other obstacles, users can write their own programs that allow the S1 to drive automatically and execute complex tasks. Explore mathematical principles involving robotic control and motion mechanics through the S1's six programmable artificial intelligence modules. Get an in-depth understanding of AI as you develop these skills and many more.

RoboMaster Robotics Competition

The S1 was inspired by DJI’s annual RoboMaster robotics competition. Since being founded in 2015, over 20,000 students from more than 400 schools have participated in this thrilling competition that tests wit, engineering, and problem-solving skills.

The World is Your Arena

Build your own competition arena anywhere, anytime and enjoy a variety of gameplay modes with an immersive FPV experience unlike any other. You can even record and share all the action with the touch of a button.

See the Action

Enjoy a unique and immersive driving experience with the S1's exhilarating FPV perspective.

Race

Compete against opponents on your own custom track. Unlock special skills like extreme speed by recognizing specific Vision Markers, or unleash weapons like dizziness against competitors to gain an edge and win the race.

Free-For-All

There can only be one winner in this competition of wits and speed. Use custom skills to get an edge and defeat opponents in this thrilling melee that utilizes the S1's unique referee system and intelligent sensing armor.

Conquest

Build your own competition arena and divide players into two teams. Set up your team strongholds, and the first team to occupy all of their opponent strongholds wins.

Develop Custom Skills

In any competition, wisdom is equally as important as power. The S1 enables users to apply their classroom knowledge to compile custom coding, unlocking unique functions that will surprise onlookers and defeat competitors. With its new education concept, the S1 helps users embrace the joy of learning in new and exciting ways.

Intercom

The new Intercom feature lets you enjoy voice interactions with friends nearby. You can also pre-record audio files in the RoboMaster app on your mobile device and play them on the S1, unlocking an array of exciting new possibilities.

RoboMaster App

With the dedicated RoboMaster app, multi-platform interactions and various operation methods for the S1 are supported, along with rich educational resources and several competition modes.

Multi-Platform Use

Functions and gameplay modes are currently available on iOS, Android, and Windows. The RoboMaster app even allows users with different systems to play together at the same time.

Various Operation Methods

The S1 can be operated using a computer or a mobile device via the touchscreen, gyro, and gamepad.

Flexible Programming & Sharing

Write programs easily and apply them or share with friends instantly using the RoboMaster app.

MasterBoard

The MasterBoard displays useful information such as driving time and mileage, coding, programming time, number of completed lessons in “Road to Mastery,” highest scores for Target Practice, and more. This allows you to mark every milestone along your path to learning, and even to compare your stats and rankings to other S1 users all around the world.

In the Box

Chassis Front Armor × 1

Mecanum Wheel Mounting Plate × 1

Mecanum Wheel Damping Ring × 4

Mecanum Wheel Roller × 48

Grease × 1

Motion Controller × 1

Bottled Gel Beads × 1

Screwdriver Handle × 1

M3508I Brushless Motor and ESC × 4

Motor Mounting Plate × 4

Screw Box × 1

Safety Goggles × 1

X-Shaped Front Shaft Cover × 1

Cable Retainer  1

Intelligent Battery Charger × 1

Intelligent Battery × 1

AC Power Cable × 1

Left-Threaded Inner Hub × 2

Left-Threaded Outer Hub × 2

Right-Threaded Inner Hub × 2

Right-Threaded Outer Hub × 2

Damping Ring Bracket × 4

Chassis Cabin Cover × 1

Masking Tape × 1

Vision Marker × 7

Chassis Cover × 1

Chassis Middle Frame × 1

Intelligent Controller × 1

Front Axle Cover × 1

Front Axle Module Base × 1

Gimbal × 1

Camera × 1

Blaster × 1

Gel Bead Container × 1

Speaker × 1

Hit Detector × 4

Camera Cable × 1

Data Cables (35 cm) × 1

Data Cables (23 cm) × 2

Data Cables (12 cm) × 4

Chassis Rear Armor × 1

Chassis Left Armor × 1

Chassis Right Armor × 1

Specs

RoboMaster S1

Camera

FOV 120°

Max Still Photo Resolution 2560×1440

Max Video Resolution FHD: 1080/30fps, HD: 720/30fps

Max Video Bitrate 16 Mbps

Photo Format JPEG

Video Format MP4

Sensor CMOS 1/4″; Effective pixels: 5 MP

Operating Temperature Range -10 to 40 °C (14 to 104 °F)

Narrow Infrared Units

Effective Range  6 m (in indoor lighting conditions)

Effective Area Varies from 10° to 40°, Effective area decreases as distance from the target increases.

Wide Infrared Units

Effective Range 3 m (in indoor lighting conditions)

Effective Width 360° (in indoor lighting conditions)

Hit Detector

Detection Requirements For the Hit Detector to be activated, the following conditions must be met: Gel bead diameter ≥ 6mm, launching speed ≥20m/s, and the angle between the hit direction and hit detector plane is no less than 45°.

Maximum Detection Frequency 15 Hz

S1

Weight Approx. 3.3 kg

Dimensions 320×240×270 mm (length × width × height)

Chassis Speed Range 0-3.5 m/s (forward), 0-2.5 m/s (backward), 0-2.8 m/s (sideways)

Max Chassis Rotational Speed 600°/s

M3508I Brushless Motor

Max Rotational Speed 1000 rpm

Max Torque 0.25N·m

Max Output Power 19 W

Operating Temperature Range -10 to 40 °C (14 to 104 °F)

Driver FOC

Control Method Closed-loop speed control

Protection Overvoltage protection, Overtemperature protection, Soft-start, Short-circuit protection, Chip and sensor anomaly detection

Blaster

Controllable Launching Frequency 1-8/s

Max Launching Frequency 10/s

Initial Launching Speed Approx. 26 m/s

Average Load Approx. 430

Gimbal

Controllable Range Pitch: -20° to +35°, Yaw: ±250°

Mechanical Range Pitch: -24° to +41°, Yaw: ±270°

Max Rotational Speed 540°/s

Vibration Control Precision (on the flat surface and with the Blaster idle) ±0.02°

Intelligent Controller

Latency Connection via Wi-Fi: 80-100ms, Connection via Router: 100-120ms (unobstructed, free of interference)

Live View Quality 720p/30fps

Max Live View Bitrate 6 Mbps

Operating Frequency 2.4 GHz, 5.1 GHz, 5.8 GHz

Operating Mode Connection via Wi-Fi, Connection via Router

Max Transmission Distance [4] Connection via Wi-Fi: FCC, 2.4 GHz 140 m，5.8 GHz 90 m, CE, 2.4 GHz 130 m，5.8 GHz 70 m, SRRC, 2.4 GHz 130 m，5.8 GHz 90 m, MIC, 2.4 GHz 130 m ; Connection via Router: FCC, 2.4 GHz 190 m，5.8 GHz 300 m, CE, 2.4 GHz 180 m，5.8 GHz 70 m, SRRC, 2.4 GHz 180 m，5.8 GHz 300 m, MIC,2.4 GHz 180 m

Transmission Power (EIRP) 2.400-2.4835 GHz FCC: ≤30 dBm, SRRC: ≤20 dBm, CE: ≤19 dBm, MIC: ≤20 dBm ; 5.150-5.250 GHz FCC: ≤30 dBm, SRRC: ≤23 dBm, CE: ≤20 dBm, MIC: ≤23 dBm ; 5.725-5.850 GHz FCC: ≤30dBm, SRRC: ≤30dBm, CE: ≤14 dBm

Transmission Standard IEEE802.11a/b/g/n

Intelligent Battery

Capacity 2400 mAh

Nominal Charging Voltage 10.8 V

Maximum Charging Voltage 12.6 V

Battery Type LiPo 3S

Energy 25.92 Wh

Weight 169 g

Operating Temperature Range -10 to 40 °C (14 to 104 °F)

Charging Temperature Range 5 to 40 °C (41 to 104 °F)

Maximum Charging Power 29 W

Battery Life in Use 35 minutes (measured at a constant speed of 2 m/s on a flat surface)

Battery Life on Standby Approx. 100 minutes

Charger

Input 100-240 V, 50-60Hz, 1A

Output Port: 12.6 V=0.8A or 12.6 V=2.2A

Voltage 12.6 V

Rated Voltage 28 W

Gel Bead

Diameter 5.9-6.8 mm

Weight 0.12-0.17 g

App

App RoboMaster

iOS iOS 10.0.2 or later

Android Android 5.0 or later

Router

Recommended Routers TP-Link TL-WDR8600; TP-Link TL-WDR5640 (China), TP-Link Archer C7; NETGEAR X6S (International)

Recommended outdoor power supply solution for routers Laptop Power Bank (match the input power of the router)

microSD card

Supported SD Cards Supports microSD cards with a capacity up to 64GB
