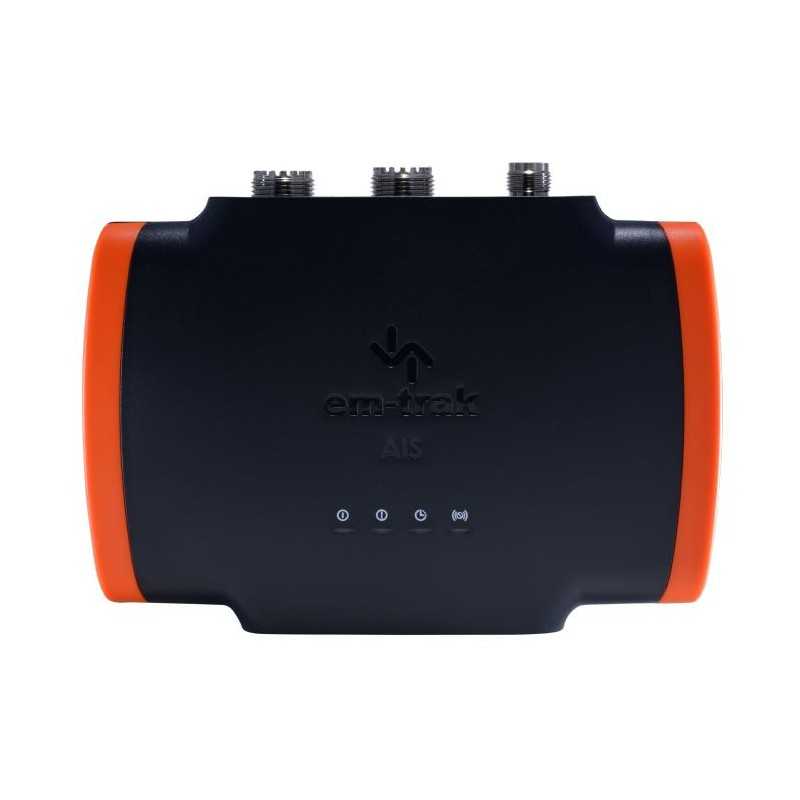

Em-trak B923 (with VHF splitter) Class B 2W AIS Transceiver
3216.26 zł net price (non-EU countries)
Karol Łoś
Product Manager
/
+48603969934 +48507526097
[email protected]
Description
Em-Trak B923 2W Class B AIS Transceiver with Integrated VHF Splitter
The Em-Trak B923 is a compact and lightweight Class B AIS transceiver designed to provide superior AIS receive and transmit performance. With a standard transmit power of 2W (CSTDMA), it allows you to see more AIS information and targets at maximum range while maintaining ultra-low power consumption.
This model includes an integrated high-performance VHF antenna splitter, enabling it to share your existing VHF radio antenna without any compromise in performance and ensuring fail-safe reliability. Featuring built-in intelligent connectivity, a next-generation GPS receiver and antenna, and the unique FLEXI-FIT™ bracket system, the B923 ensures a safe and straightforward installation process.
Key Features
- Certified AIS Class B – 2W CSTDMA
- Integrated VHF antenna splitter for seamless VHF radio sharing
- Global certification – USCG, FCC, Canada, Europe
- Powered by the SRT-AIS™ Transceiver Engine for unparalleled performance
- FLEXI-FIT™ bracket system for easy and secure installation
- Internal high-performance GPS receiver and antenna (external antenna optional)
- IPx6 and IPx7 certified for water, pressure spray, and damp proof protection
- Designed to withstand vibration, shock, and extreme temperatures
- Small, lightweight design with ultra-low power consumption
- Ensures connectivity and interoperability with any chart plotter or PC
- Compatible with NMEA 0183 & NMEA 2000
- Automated health and performance monitoring
- Silent mode (transmit-off) function
- Enhanced RF screening to protect against electromagnetic interference
- Includes built-in power surge protection
- Fail-safe VHF radio operation
Physical & Environmental Specifications
Size: 150 x 115 x 45mm
Weight: 415g
Operating Temperature: -25°C to +55°C
Storage Temperature: -25°C to +70°C
Ingress Protection: IPx6 and IPx7
Electrical Specifications
Supply Voltage: 12V or 24V DC
Supply Voltage Range: 9.6V - 31.2V DC
Average Current (at 12V): 245mA
Peak Current: 2A
Average Power Consumption (at 12V): 2.9W
Galvanic Isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port
Connectors
- VHF Antenna: SO-239
- VHF Radio: SO-239
- GNSS: TNC
- Power/NMEA 0183/Silent Mode: 12 way circular multipole
- NMEA 2000: 5 way Micro-C connector
- USB: USB Micro-B
Data Interfaces
NMEA 0183: 2 x bi-directional ports
NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
USB: PC virtual com port for NMEA 0183 data
Standards Compliance
AIS Standards: IEC 62287-1 Ed. 3 ITU-R M.1371.5
Product Safety Standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
Environmental Standards: IEC 60945 Ed. 4
Serial Data Interface Standards: IEC 61162-1 Ed 5.0 IEC 61162-2 Ed 1.0
NMEA 2000: NMEA 2000 Ed 3.101
GNSS Performance Standards: IEC 61108-1 Ed 2.0 IEC 61108-02 Ed 1.0
GNSS
Systems Supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
Channels: 72
Internal/External Antenna: Internal or optional external antenna
Time to First Fix from Cold Start: 26s
VHF Transceiver
VDL Access Scheme: CSTDMA
Operating Frequency: 156.025MHz - 162.025MHz
Channel Bandwidth: 25kHz
Receivers/Transmitters: 2 x receivers, 1 x transmitter
AIS Receiver Sensitivity (20% PER): -111dBm
AIS Transmitter Power: 2W (+33dBm)
User Interface
Indicators: Power, transmit timeout, error, silent mode
