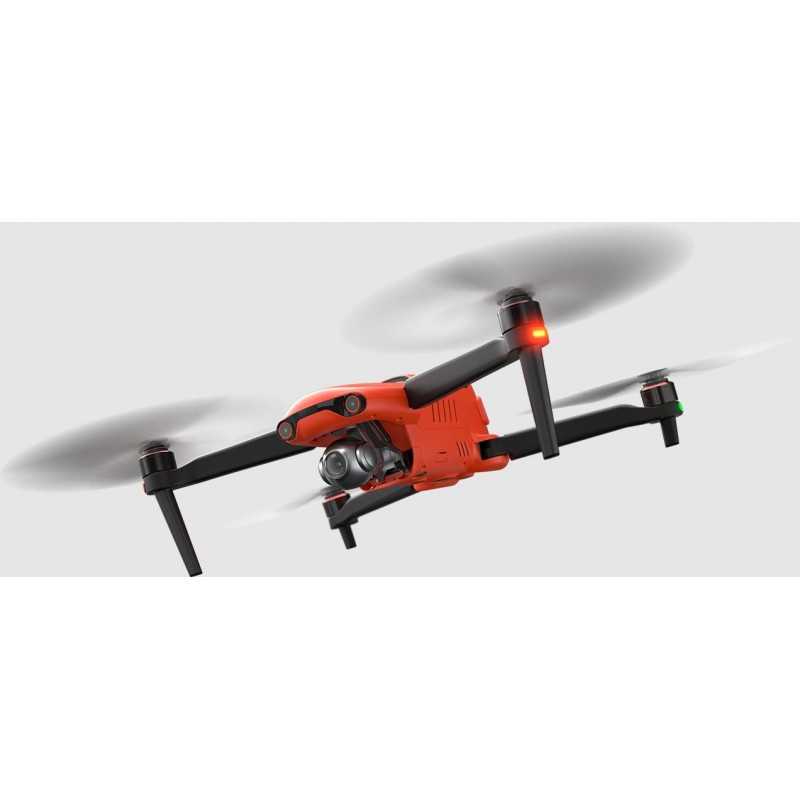

Autel EVO II Dual Rugged Foldable 8K Drone

Life In 33 Million Pixels. Excellent With 8K

Autel Robotics Evo II 8K records in resolutions up to 7680x4320. With 16 times more pixels than HD and 4 times more pixels than 4K, 8K video redefines image detail. The high resolution enables users to zoom deep into a scene and crop an image to 4K without any loss in quality, pushing color further than ever before.

Capture Every Detail

Partnering with Sony, the Autel Robotics Evo II's 48-megapixel sensor is superior to any aerial camera, providing sharper images, greater detail, and richer color.

Brilliant Highlights. Deeper Shadows.

4K HDR video adds dynamic range by merging long-, medium-, and short-term exposures into a single frame. 10-bit color depth captures over 1 billion colors to provide greater flexibility in post production while still retaining rich details in the shadows and highlights.

Only Autel Offers Hyperlapse In 8K

With Hyperlapse mode, no post processing is required. The 8K images can be taken straight out of the drone and shared immediately. JPEG and RAW files are recorded simultaneously. Create perfect flight paths and produce accurate, repeatable hyperlapse videos with just one click.

LiveDeck: Stream Anywhere

Stream live video feed directly from the EVO II to any monitor with Live Deck, which supports HDMI, Ethernet, and USB output.

Instant Capture

Track fast-moving subjects with incredible precision through phase detection autofocus.

Omnidirectional obstacle avoidance with 12 visual sensors

Equipped with 19 groups of sensors — including 12 visual sensors, the main camera, ultrasound, and dual IMUs — the EVO II can easily build three-dimensional maps and plan paths through complex terrain in real time.

Dynamic Track 2.0

The EVO II can model the location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.

Maximum Flight Time 40minutes

Fly for up to 40 minutes with the EVO II's powerful 7100mAh battery.

Maximum Transmission Range 5.5miles

Fly more than 5 miles from the pilot's location with confidence in video and telemetry transmission.

Maximum Wind Resistance 39 mph

Fly in virtually any wind condition (urban or rural) with confidence, ensuring a successful mission.

Maximum Flight Speed 45mph

With speeds of up to 45 mph, the EVO II arrives quickly and efficiently.

Technical Specifications

Aircraft

Takeoff weight 1127 g

Max takeoff weight 2000 g

Wheelbase 397 mm

Battery 7100 mAh

Max flight time(no wind) 40min

Max hovering time(no wind) 35min

Max horizontal flight speed 20 m/s

Max ascent speed 8 m/s

Max descent speed 4 m/s

Max flight distance (no wind) 25 km

Maximum service ceiling altitude 7000 m

Maximum resistance to wind Level 8

Operating temperature range -10℃ ~ 40℃

Operating frequency non-Japan：2.400 GHz - 2.4835 GHz；5.725 - 5.850 GHz, Japan：2.400 GHz - 2.4835 GHz；5.650 - 5.755 GHz

Transmission power 2.4GHz, FCC/ISED：≤27dBm, SRRC/CE/MIC/RCM：≤20dBm, 5.8G (non-Japan) ; 5.7G (non-Japan), FCC/ISED/SRRC/MIC：≤27dBm, CE/ RCM：≤14dBm

Hovering accuracy Vertical：± 0.02 m（when the visual positioning is working normally）；± 0.2 m（when GPS works normally）Horizontal：± 0.02 m（when the visual positioning is working normally）；± 0.5m（when GPS works normally）

Note: Operating frequency varies by countries and regions, please refer to local laws and regulations.

Sensing system

Sensing system type Omnidirectional sensing system

Forward Accurate measurement range: 0.5 - 20 m, Detection range: 0.5 - 40 m, Effective sensing speed: < 15m/s, Viewing angle: Horizontal: 60°, Vertical: 80°

Backward Accurate measuring range: 0.5 - 16 m, Detection range: 0.5 - 32 m, Effective sensing speed: < 12m/s, Viewing angle: Horizontal: 60°, Vertical: 80°

Upward Accurate measurement range: 0.5 - 12 m, Detection range: 0.5 - 24 m, Effective sensing speed: < 6m/s, Viewing angle:horizontal: 65°, vertical: 50°

Downward Accurate measurement range: 0.5 - 11 m, Detection range: 0.5 - 22 m, Effective sensing speed: < 6m/s, Viewing angle: horizontal: 100°, vertical: 80°

Left and right Accurate measurement range: 0.5 - 12 m, Detection range: 0.5 - 24 m, Effective sensing speed: < 10m/s, Viewing angle: horizontal: 65°, vertical: 50°

Operating Environment Forward, Backward and Sides： Surface with clear pattern and adequate lighting（ >lux > 15）Upward：Detects diffuse reflective surfaces>20%（walls, trees, people, etc）Downward：Surface with clear pattern and adequate lighting（ > lux > 15）Detects diffuse reflective surfaces >20%（walls, trees, people, etc.）

Camera

Sensor 1/2" CMOS

effective pixels 48MP

FOV 79°

Lens 35 mm format equivalent focal length: 25.6 mm, Aperture: f/1.8, Focus range：0.5m to infinity (with auto focus)

ISO range Video：100-6400, Photos：100-3200

Zoom 1-16x (up to 4x lossless zoom)

Photo mode Single shot, Burst shooting：3/5frames, Auto Exposure Bracketing (AEB)：, 3/5 bracketed frames at 0.7 EV Bias, Time Lapse：JPG：2s/5s/7s/10s/20s/30s/60s, DNG：5s/7s/10s/20s/30s/60s, HyperLight: support (under 4K JPEG format), Long exposure:Max. 8s, HDR imaging: support (under 4K JPEG format)

Maximum photo size 8000*6000 (4:3), 7680*4320 (16:9), 4000*3000 (4:3), 3840*2160 (16:9)

Video format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)

Video resolution 8K 7680*4320 p25/p24, 6K 5760*3240 p30/p25/p24, 4K 3840*2160 p60/p50/p48/p30/p25/p24, 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24, 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24

Max bitrate 120Mbps

Gimbal

Mechanical Range Tilt：-135° to +45°, Pan：-100° to +100°

Controllable Rotation Range Tilt：-90° to +30°, Pan：-90° to +90°

Stabilization System Three-axis stabilization

Max Control Speed (Tilt) 300°/s

Angular Vibration Range ±0.005°

Remote controller and image transmission

Max Transmission Distance (unobstructed, free of interference) 9km FCC, 5km CE

Transmission power 2.4~2.4835GHz, FCC/ISED：≤27dBm, SRRC/CE/MIC/RCM：≤20dBm, 5.725~5.850GHz, FCC/ISED/SRRC/MIC：≤27dBm, CE/RCM：≤14dBm

Real-time image transmission quality 720p@30fps / 1080p@30fps

Maximum bit rate of real-time image transmission 40Mbps

Remote controller battery 5000mAh

Run time 3 hours

Charging time 2 hours fast charging

Display screen 3.26'' OLED, 854（W） * 480（H）Pixel, Directly preview the video without connecting a mobile phone

Working current/voltage [email protected]

Note: Operating frequency varies by countries and regions, please refer to local laws and regulations.

Intelligent Flight Battery

Capacity（mAh） 7100mAh

Voltage（V） 11.55

Transmission power 13.2

Battery type LiPo 3S

Energy 82Wh

Weight（g） 365

Charging temperature range（℃） 5~45℃

Storage temperature and humidity -10~30℃，65±20%RH

Recommended storage temperature 22~28℃

Max charging power（W） 93W

Charging time 90 minutes

Charger

Input 100-240 V, 50/60 Hz, 1.5A

Output 13.2 V ⎓ 5 A, 5V⎓3A 9V⎓2A 12V⎓1.5A

Voltage 13.2 ± 0.1 V

Rated power 66 W

Storage

SD storage Standard：32 GB, max. support：256GB （ UHS-3 rating required ）

In-flight storage 8GB
