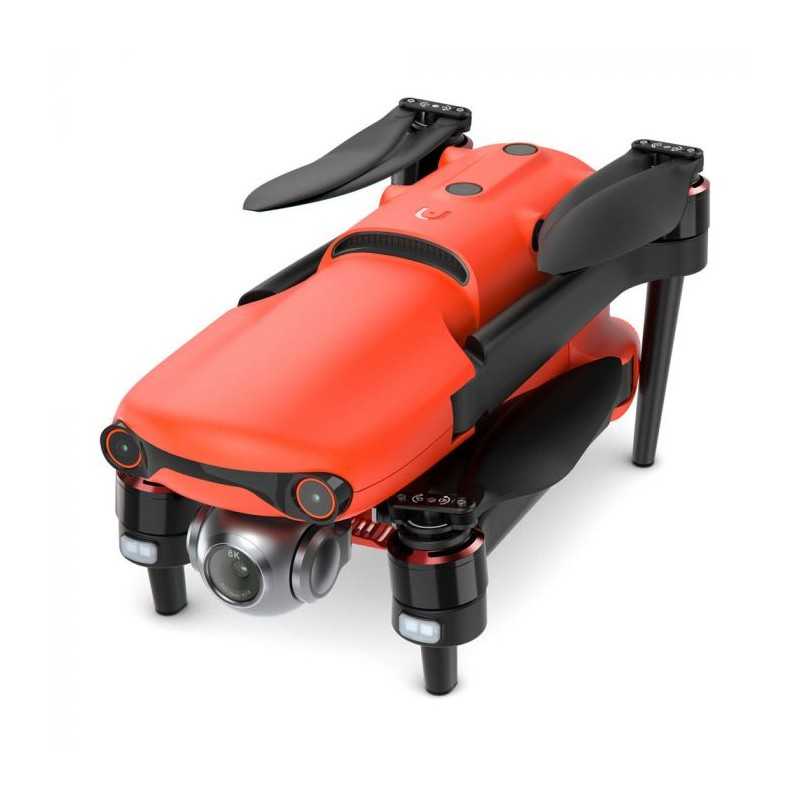

Autel EVO II Pro Rugged 6K Folding Drone

Discover the Autel EVO II Pro Rugged 6K Folding Drone, a professional-grade drone specifically built to withstand harsh environments and provide exceptional aerial imagery for professionals seeking high-quality aerial footage and operational capabilities.

Key Features:

6K Ultra-HD Camera: Capture stunning, high-resolution aerial images and videos with the EVO II Pro's 1-inch CMOS sensor, capable of recording 6K video at 30fps and taking 20MP still photos, ensuring the finest details are preserved.

Rugged Design: Engineered with a robust construction and high-quality materials, the EVO II Pro Rugged is built to withstand extreme weather conditions and challenging terrains, making it the perfect companion for demanding missions.

Extended Flight Time: Maximize your productivity with an impressive flight time of up to 40 minutes, allowing you to cover larger areas and execute tasks more efficiently.

Advanced Obstacle Avoidance: Navigate complex environments with confidence, thanks to the EVO II Pro Rugged's 12 computer vision sensors and the Omnidirectional Obstacle Avoidance system, ensuring your drone's safety and data integrity.

Compact Folding Design: Easily transport and store your drone with its portable, folding design, making it an ideal choice for professionals who require a reliable drone solution on-the-go.

High-Precision Mapping: Leverage the drone's powerful mapping capabilities with detailed 3D maps and accurate GPS coordinates, allowing you to make informed decisions and optimize your operations.

Intuitive Autel Explorer App: Plan and execute missions effortlessly with the user-friendly Autel Explorer App, featuring intelligent flight modes, real-time telemetry, and advanced camera settings for optimal control and efficiency.

Invest in the future of your business with the Autel EVO II Pro Rugged 6K Folding Drone, the ultimate aerial tool for professionals seeking durability, versatility, and top-notch performance. Order your device today and unlock the potential of cutting-edge drone technology.

More information

Superior Image Quality

Using Sony's supersensitive CMOS sensor, the EVO II Pro provides impressive low-light photography video resolutions up to 6K, greater dynamic range, and stronger noise reduction.

Adaptability And Versatility For Every Lighting Environment

The EVO II Pro's advanced camera settings include an adjustable aperture range of f2.8 to f11 and a maximum ISO of 12,800 enabling the photographer to produce images of exceptional precision and sharpness.

10-bit A-log Post-Production Flexibility

10-bit camera allows the EVO II Pro to record up to 1 billion colors. The EVO II Pro retains rich detail in shadows and highlights, allowing greater flexibility in post-production.

4K HDR

Track fast-moving subjects with incredible precision through phase detection autofocus.

Capture The Nighttime World

Designed for shooting in low-light conditions, the hyper-light feature provides 2D and 3D noise reduction, smoothing motion blur and reducing noise.

LiveDeck: Stream Anywhere

Stream live video feed directly from the EVO II Pro to any monitor with Live Deck, which supports HDMI, Ethernet, and USB output.

Only Autel Offers Hyperlapse In 6K

With Hyperlapse mode, no post processing is required. The 6K images can be taken straight out of the drone and shared immediately. JPEG and RAW files are recorded simultaneously. Create perfect flight paths and produce accurate, repeatable hyperlapse videos with just one click.

Omnidirectional Obstacle Avoidance With 12 Visual Sensors

Equipped with 19 groups of sensors — including 12 visual sensors, the main camera, ultrasound, and dual IMUs — the EVO II Pro can easily build three-dimensional maps and plan paths through complex terrain in real time.

Dynamic Track 2.0

The EVO II Pro can model the location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.

Maximum Flight Time 40minutes

Fly for up to 40 minutes with the EVO II Pro's powerful 7100mAh battery.

Maximum Transmission Range 5.5 miles

Fly more than 5 miles from the pilot's location with confidence in video and telemetry transmission.

Maximum Wind Resistance 39mph

Fly in virtually any wind condition (urban or rural) with confidence, ensuring a successful mission.

Maximum Flight Speed 45mph

With speeds of up to 45 mph, the EVO II Pro arrives quickly and efficiently.

Technical Specifications

Aircraft

Takeoff weight 1191 g

Max takeoff weight 2000 g

Wheelbase 397 mm

Aircraft Battery 7100 mAh

Max flight time(no wind) 40min

Max hovering time(no wind) 35min

Max horizontal flight speed 20 m/s

Max ascent speed 8 m/s

Max descent speed 4 m/s

Max flight distance (no wind) 25 km

Maximum service ceiling altitude 7000 m

Maximum resistance to wind Level 8

Operating temperature range -10℃ ~ 40℃

Operating frequency non-Japan：2.400 GHz - 2.4835 GHz；5.725 - 5.850 GHz, Japan：2.400 GHz - 2.4835 GHz；5.650 - 5.755 GHz

Transmission power 2.4~2.4835GHz, FCC/ISED：≤27dBm, SRRC/CE/MIC/RCM：≤20dBm, 5.725~5.850GHz, FCC/ISED/SRRC/MIC：≤27dBm, CE/RCM：≤14dBm

Hovering accuracy Vertical：± 0.02 m（when the visual positioning is working normally）；± 0.2 m（when GPS works normally）Horizontal：± 0.02 m（when the visual positioning is working normally）；± 0.5m（when GPS works normally）

Note: Operating frequency varies by countries and regions, please refer to local laws and regulations.

Sensing system

Sensing system type Omnidirectional sensing system

Forward Accurate measurement range: 0.5 - 20 m, Detection range: 0.5 - 40 m, Effective sensing speed: < 15m/s, Viewing angle: Horizontal: 60°, Vertical: 80°

Backward Accurate measuring range: 0.5 - 16 m, Detection range: 0.5 - 32 m, Effective sensing speed: < 12m/s, Viewing angle: Horizontal: 60°, Vertical: 80°

Upward Accurate measurement range: 0.5 - 12 m, Detection range: 0.5 - 24 m, Effective sensing speed: < 6m/s, Viewing angle: horizontal: 65°, vertical: 50°

Downward Accurate measurement range: 0.5 - 11 m, Detection range: 0.5 - 22 m, Effective sensing speed: < 6m/s, Viewing angle: horizontal: 100°, vertical: 80°

Left and right Accurate measurement range: 0.5 - 12 m, Detection range: 0.5 - 24 m, Effective sensing speed: < 10m/s, Viewing angle: horizontal: 65°, vertical: 50°

Operating Environment Forward, Backward and Sides： Surface with clear pattern and adequate lighting (lux > 15), Upward: Detects diffuse reflective surfaces>20%（walls, trees, people, etc., Downward: Surface with clear pattern and adequate lighting（ > 15 lux）Detects diffuse reflective surfaces>20%（walls, trees, people, etc.）

Camera

Sensor 1" CMOS

effective pixels 20MP

FOV 82°

Lens 35 mm format equivalent focal length: 28.6 mm, Aperture: f/2.8 - f/11, Focus range: 1 m to infinity (with auto focus)

ISO range Video: 100-6400, Photos: 100-12800

Zoom 1-16x (up to 3x lossless zoom)

Photo mode Single shot, Burst shooting: 3/5 frames, Auto Exposure Bracketing (AEB)：3/5 bracketed frames at 0.7 EV Bias, Time Lapse：JPG：2s/5s/7s/10s/20s/30s/60s, DNG：5s/7s/10s/20s/30s/60s, HyperLight: support (under 4K JPEG format), Long exposure:Max. 8s, HDR imaging: support (under 4K JPEG format)

Photo resolution 5472*3648 (3:2), 5472*3076 (16:9), 3840*2160 (16:9)

Video format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)

Video resolution 6K 5472*3076 p30/p25/p24, 4K 3840*2160 p60/p50/p48/p30/p25/p24, 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24, 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24

Max bitrate 120Mbps

Gimbal

Mechanical range Tilt: -135° to +45°; Pan: -100° to +100°

Controllable rotation range Tilt: -90° to +30°, Pan: -90° to +90°

Stability Three-axis stabilization

Max control speed (Tilt) 300°/s

Angular Vibration Range ±0.005°

Remote controller and image transmission

Max Transmission Distance (unobstructed, free of interference) 9km FCC, 5km CE

Transmission power 2.4~2.4835GHz, FCC/ISED：≤27dBm, SRRC/CE/MIC/RCM：≤20dBm, 5.725~5.850GHz, FCC/ISED/SRRC/MIC：≤27dBm, CE/RCM：≤14dBm

Real-time image transmission quality 720p@30fps / 1080p@30fps

Maximum bit rate of real-time image transmission 40Mbps

Remote controller battery 5000mAh

Run time 3 hours

Charging time 2 hours fast charging

Display screen 3.26'' OLED, 854（W） * 480（H）Pixel, Directly preview the video without connecting a mobile phone

Working current/voltage [email protected]

Note: Operating frequency varies by countries and regions, please refer to local laws and regulations.

Intelligent Flight Battery

Capacity（mAh） 7100mAh

Voltage（V） 11.55

Transmission power（2.4G） 13.2

Battery type LiPo 3S

Energy 82Wh

Weight（g） 365

Charging temperature range（℃） 5~45℃

Storage temperature and humidity -10~30℃，65±20%RH

Recommended storage temperature 22~28℃

Max charging power（W） 93W

Charging time 90minutes

Charger

Input 100-240 V, 50/60 Hz, 1.5A

Output 13.2 V ⎓ 5 A, 5V⎓3A 9V⎓2A 12V⎓1.5A

Voltage 13.2 ± 0.1 V

Rated power 66 W

Storage

SD storage Standard: 32 GB, max. support 256GB (UHS-3 rating required)

In-flight storage 8GB
