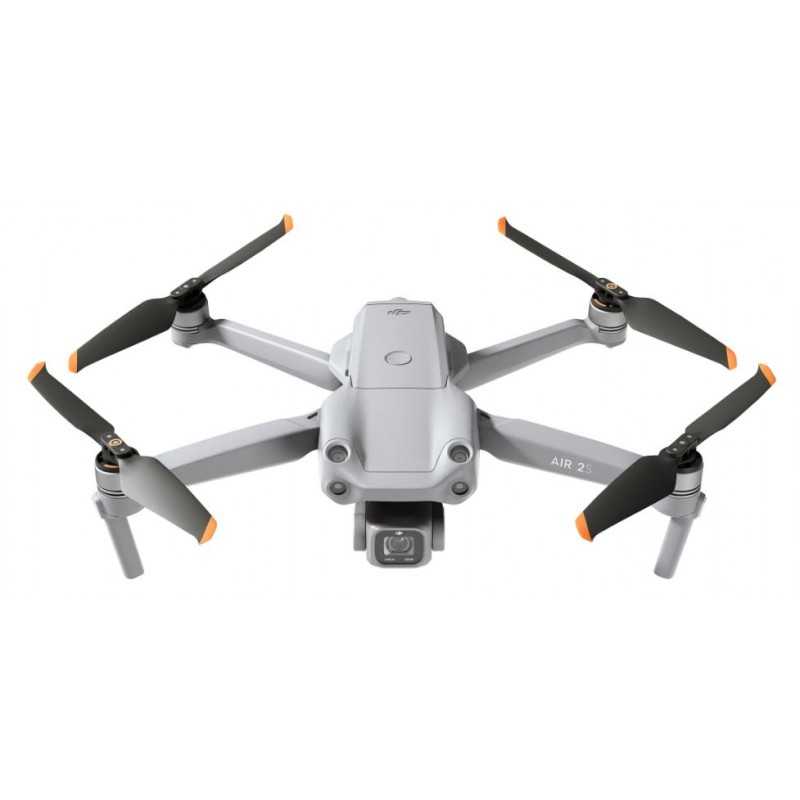

DJI Air 2S Drone

Introducing the DJI Air 2S Drone - a highly versatile and powerful drone, perfect for professional photographers, videographers, and drone enthusiasts seeking exceptional aerial imaging capabilities. Here are some of the key features of this cutting-edge device:

Stunning Image Quality: Equipped with a 1-inch CMOS sensor, the DJI Air 2S captures 20MP still images and 5.4K/30fps video, delivering unparalleled detail and dynamic range for breathtaking aerial shots.

Advanced Obstacle Avoidance: The Air 2S features APAS 4.0 obstacle avoidance technology, using multiple sensors to intelligently and automatically navigate around obstacles, ensuring safe and stress-free flights.

Impressive Flight Performance: With a top speed of 68.4 km/h (42.5 mph) and a maximum flight time of up to 31 minutes, the DJI Air 2S offers incredible agility and endurance, allowing you to capture amazing shots in a variety of conditions.

OcuSync 3.0 Transmission: Enjoy seamless live video transmission up to 12 km (7.5 miles) away with OcuSync 3.0, ensuring a stable connection and real-time video feed even in challenging environments.

Intelligent Flight Modes: Elevate your aerial photography with smart flight modes such as Spotlight 2.0, ActiveTrack 4.0, and Point of Interest 3.0, enabling you to create dynamic and cinematic footage with ease.

MasterShots: Automatically capture stunning aerial footage using MasterShots - a feature that plans, shoots, and edits a series of professional-level shots with just a few taps.

Easy Editing: The DJI Fly app offers a comprehensive suite of editing tools, enabling you to create and share your aerial masterpieces with ease, even on the go.

Compact and Portable: The DJI Air 2S features a foldable design, making it incredibly easy to transport and store in your backpack, ready for your next adventure.

Compatibility: Compatible with both iOS and Android devices, the DJI Air 2S provides a wide range of control, customization, and editing options to suit your needs.

More information

• 1-inch CMOS Sensor
• MasterShots
• 5.4K Video
• 12km FHD Transmission
• Obstacle Sensing in 4 Directions
• ADS-B

Turn On the Night

Capture the allure of the world, even as it darkens. Thanks to a high dynamic range, high resolution, and accurate color reproduction, even low-light scenes are sharp and vibrant.

One billion colors captured by the 10-bit Dlog-M color profile of DJI Air 2S let you fully immerse yourself in all the hues of your environment.

Shoot RAW format photos with a dynamic range of up to 12.6 stops to capture more visual information in every scene, even when lighting conditions are bad or complex. This provides more flexibility in post-processing, giving creators more possibilities to get the look they want.

Intelligent HDR technology merges multiple shots automatically, increasing the dynamic range of images without the need for post-processing. That means more nuanced details in both the highlights and shadows for richer images with greater depth.

Hyperlapse and Panorama

Speed up time and movement with a single tap by creating a striking hyperlapse. You can also capture larger, more detailed shots of your surroundings with panorama.

Introducing MasterShots

The next evolution of QuickShots, MasterShots is an advanced intelligent feature that gives users the best shots in any location with just a tap. Simply select your subject, and the drone will film while executing ten different maneuvers in sequence, keeping your subject center-frame and generating a short cinematic video afterward.

The Center of Attention

FocusTrack features Spotlight 2.0, ActiveTrack 4.0, and Point of Interest 3.0, making it a breeze for DJI Air 2S to follow or circle your subject.

Feel the Flight

Worry Less, Discover More

The combination of portability, safety, and intelligent technology means you can spend more time enjoying flights and less time worrying about them. Take DJI Air 2S into the sky confidently, every flight.

Environment Sensing

DJI Air 2S has the ability to perceive its environment in four directions: up, down, forward, and backward. The algorithms for Advanced Pilot Assistance Systems (APAS 4.0) have been further improved, allowing DJI Air 2S to actively avoid obstacles in more complex scenarios and at high speeds.

O3 Transmission

DJI Air 2S features DJI's most advanced O3 (OcuSync 3.0) image transmission technology, delivering an ultra-smooth, clear, and reliable image feed.

Safer Skies with ADS-B

DJI Air 2S provides an added layer of airspace safety with the industry-leading AirSense safety system. This receives Automatic Dependent Surveillance-Broadcast (ADS-B) flight location information from airplanes and helicopters in your area that transmit ADS-B signals, displays those aircraft on a map, and provides audio and visual alerts through the DJI Fly app to help you keep the drone out of the way of those aircraft.

With a diverse range of accessories, the sky is truly the limit.

Specs

Aircraft

Takeoff Weight 595 g

Dimensions Folded: 180×97×77 mm (length×width×height) Unfolded: 183×253×77 mm (length×width×height)

Diagonal Length 302 mm

Max Ascent Speed 6 m/s (S Mode), 6 m/s (N Mode)

Max Descent Speed 6 m/s (S Mode), 6 m/s (N Mode)

Max Service Ceiling Above Sea Level 5000 m

Max Flight Time (no wind) 31 minutes

Max Hovering Time (no wind) 30 minutes

Max Flight Distance (no wind) 18.5 km

Max Flight Speed (near sea level, no wind) 19 m/s (S Mode), 15 m/s (N Mode), 5 m/s (C Mode)

Max Wind Speed Resistance 10.7 m/s

Max Tilt Angle 35° (S Mode) Front: 30°, Back: 20°, Left: 35°, Right: 35° (N Mode)

Max Angular Velocity 250°/s (S Mode), 90°/s (N Mode), 60°/s (C Mode)

Operating Temperature Range 0° to 40°C (32° to 104°F)

Operating Frequency 2.4 GHz, 5.8 GHz

Transmission Power (EIRP) 2.4 GHz: FCC: ≤30 dBm CE: ≤20 dBm SRRC: ≤20 dBm MIC: ≤20 dBm ; 5.8 GHz: FCC: ≤30 dBm CE: ≤14 dBm SRRC: ≤29 dBm

Hovering Accuracy Range Vertical: ± 0.1 m (with vision positioning), ± 0.5 m (with GNSS positioning) ; Horizontal: ± 0.1 m (with vision positioning), ± 1.5 m (with GNSS positioning)

Propellers Quick release, low noise, folding

Aircraft Arms Foldable

GNSS GPS+GLONASS+GALILEO

Compass Single Compass

IMU Single IMU

Internal Storage 8 GB

Intelligent Flight Battery

Capacity 3750 mAh / 3500 mAh

Voltage 11.04 V / 11.55 V

Max Charging Voltage 12.6 V / 13.2 V

Battery Type LiPo 3S

Energy 41.4 Wh / 40.42 Wh

Weight 198 g

Charging Temperature Range 5° to 40°C (41° to 104°F)

Max Charging Power 38 W

Built-in Battery N/A

Camera

Sensor 1" CMOS, Effective Pixels: 20 MP; 2.4μm Pixel Size

Lens FOV: 88°, 35 mm Format Equivalent: 22 mm, Aperture: f/2.8, Shooting Range: 0.6 m to ∞

ISO Range Video: 100-3200 (Auto), 100-6400 (Manual) ; 10-Bit Dlog-M Video: 100-800 (Auto), 100-1600 (Manual) ; Photo: 100-3200 (Auto), 100-12800 (Manual)

Still Image Size 20 MP, 5472×3648 (3:2), 5472×3078 (16:9)

Still Photography Modes Single shot: 20 MP, Burst shooting: 20 MP (continuous burst), Auto Exposure Bracketing (AEB): 20 MP, 3/5 bracketed frames at 0.7 EV bias, Timed: 20 MP, 2/3/5/7/10/15/20/30/60s, SmartPhoto (including HDR and HyperLight): 20 MP, HDR ; Panorama: Vertical (3×1): 3328×8000 (width×height), Wide-angle (3×3): 8000×6144 (width×height), 180° (3×7): 8192×3500 (width×height) ; Sphere (3×8+1): 8192×4096 (width×height), JPEG/DNG (RAW)

Video Resolution 5.4K: 5472×3078 @ 24/25/30 fps, 4K Ultra HD: 3840×2160 @ 24/25/30/48/50/60 fps, 2.7K: 2688x1512 @ 24/25/30/48/50/60 fps, FHD: 1920×1080 @ 24/25/30/48/50/60/120 fps, MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)

Max Video Bitrate 150 Mbps

Supported File System FAT32/exFAT, Supports a microSD card with a capacity of up to 256 GB.

Digital Zoom Zoom recording is not available while recording 10-bit videos and 120fps videos. 4K/30fps: 4x; 2.7K/60fps: 4x; 2.7K/30fps: 6x; 1080p/60fps: 6x; 1080p/30fps: 8x

Gimbal

Stabilization 3-axis (tilt, roll, pan)

Mechanical Range Tilt: -135° to 45°, Roll: -45° to 45°, Pan: -100° to 100°

Pan Axis Not Controllable

Controllable Range Tilt: -90° to 0°(default); -90° to 24° (extended)

Max Controllable Speed (tilt) 100°/s

Angular Vibration Range ±0.01°

Sensing System

Forward Precision Measurement Range: 0.38-23.8 m, Effective Sensing Speed: ≤15 m/s, Field of View (FOV): 72° (horizontal), 58° (vertical)

Backward Precision Measurement Range: 0.37-23.4 m, Effective Sensing Speed: ≤12 m/s, Field of View (FOV): 57° (horizontal), 44° (vertical)

Downward ToF Measurement Range: 0.1-8 m, Hovering Range: 0.5-30 m, Vision Sensor Hovering Range: 0.5-60 m

Left/Right N/A

Upward Precision Measurement Range: 0.34-28.6 m, Field of View (FOV): 63° (horizontal), 78° (vertical)

Downward Auxiliary Light Single LED

Video Transmission

Transmission System O3, 2.4 GHz/5.8 GHz Auto-Switching (compatible with OcuSync 2.0), 4-antenna 2T4R

Max Transmission Distance 12 km (FCC), 8 km (CE), 8 km (SRRC), 8 km (MIC)

Live View Quality/Latency Drone + Remote Controller: 1080p/30fps 12 Mbps 120 ms, Drone + DJI Smart Controller: 1080p/30fps 12Mbps 130 ms

Max Transmission Bitrate 44 Mbps (download bitrate), 16 Mbps (live video bitrate)

Operating Frequency 2.4 GHz, 5.8 GHz

Remote Controller

Multiple Controllers N/A

DJI Smart Controller Supported

Remote Controller Transmission System When used with different aircraft hardware configurations, DJI RC-N1 Remote Controllers will automatically select the corresponding firmware version for updating and support the following transmission technologies enabled by the hardware performance of the linked aircraft models: a. DJI Mini 2/ DJI Mavic Air 2: O2, b. DJI Air 2S: O3, c. DJI Mavic 3: O3+

Battery Life 6 hours (4 hours when charging a mobile device)

Supported Mobile Device Connectors Lightning, Micro USB, USB-C

Max Supported Mobile Device Size 180×86×10 mm (length×width×height)

Operating Temperature 0° to 40°C (32° to 104°F)

Transmitter Power (EIRP) 2.400-2.4835 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) ; 5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)

Charger

Charging Input 100-240V, 50/60 Hz, 1.3 A

Charging Output Charging Port: 13.2 V⎓2.82 A, USB Port: 5 V⎓2 A

Voltage 13.2 V

Rated Power 38 W
