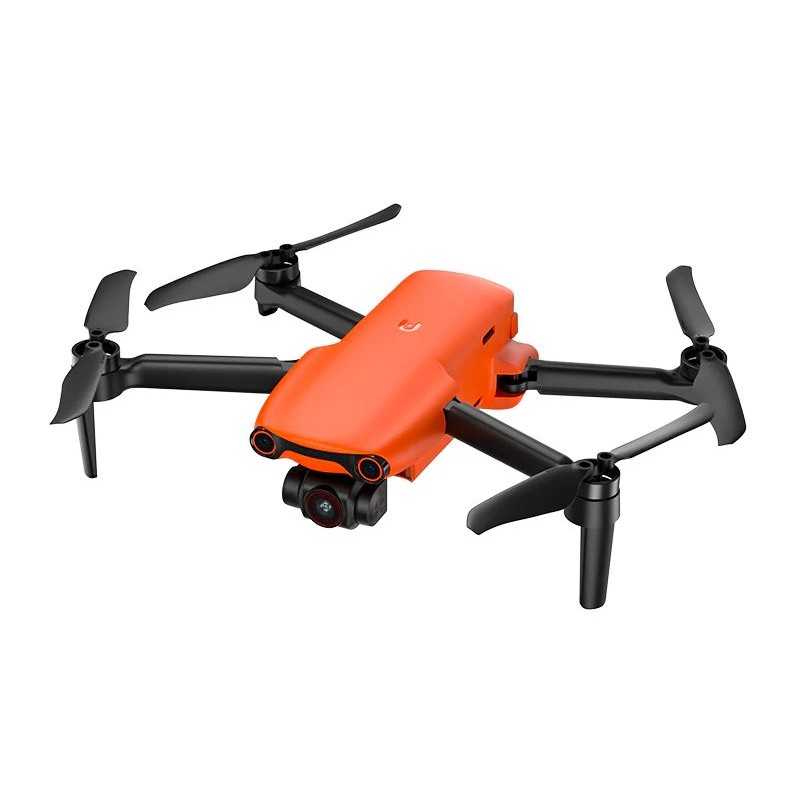

Autel EVO Nano+ Drone Premium Bundle - Orange

1/1.28″ CMOS

EVO Nano+ is packed a 1/1.28-inch(0.8-inch) CMOS sensor capable of 50 MP photos. A RYYB color filter array design with a large aperture of f/1.9 offers superior noise reduction capabilities and the power to effortlessly produce quality images in low- light conditions.

Track fast-moving subjects with incredible precision through PDAF + CDAF autofocus system; Squeeze rich detail from shadows and highlights no matter how extreme the lighting conditions using HDR mode, which rapidly snaps several photos at different exposures so they can be stitched together in post-production.

• 1/1.28" (0.8") CMOS
• RYYB Sensor
• 2.44μm Pixel
• PDAF+CDAF Autofocus System

HDR: Darker Shadows. Brighter Highlights.

With HDR on, Nano and Nano+ will snap several photos at different exposures and automatically stitch them together- resulting in a photo with more contrast and dynamic range.

Add A Splash Of Color

Life is more than one color — and now so is your drone. Dress to impress with an elegant Arctic White. Fly under the radar cool and

confident with a sleek Deep Space Gray. Make a statement with Blazing Red. Or go boldly into the unknown with the classic Autel Orange.

Superlight. Ultracompact.

At only 249 grams, the EVO Nano and Nano+ weighs about as much as a smartphone and fits almost anywhere- from the side pocket of your hiking pack to the palm of your hand.

SkyPortrait: Your Personal Paparazzi

With the touch of a button, the Nano will rise into the air and snap a photo of you and your friends, automatically adjusting the lens so no one gets left out. Blur the background automatically for additional cinematic effect or dramatically reveal your epic destination — whether it's the top of a mountain or your own backyard.

Dynamic Track 2.1: Master Subject Tracking

Recruit your Nano to automatically follow any person, animal, or vehicle so you can focus on your activities while your Nano handles the cinematic side.

Cinematic Shots Proficiency With A Single Click

Create dramatic, professional-level shots at the touch of a button with four automatic shooting modes. Add a soundtrack and filters in the Autel Sky app to make your video even more epic, allowing you to produce unforgettable results whether you're a veteran pilot or completely new to the drone game.

MovieMaster: Easy Movie Making And Sharing

The Autel Sky app provides you a suite of video templates for quick and easy movie-making, allowing you to drastically reduce the tedious editing process so you can create and share your creations on the spot!

Fly Free—More Range, Less Interference

Fly farther while maintaining crisp, clear visuals with the all new Autel SkyLink, our strongest image transmission system yet, which offers a transmission range of 6.2 miles, transmission quality of 2.7K/30FPS, and superior anti-interference capabilities, all while relaying stunning QHD video.

SuperDownload

Done shooting? Simply place your smartphone close to the Nano to download photos and videos at a speedy rate of 160Mbps(20MB/s) using the Autel Sky app.

SoundRecord: Bring Your Videos To Life

Record voices and ambient sounds on the ground through the smartphone, allowing you to bring your videos to life even when your drone is far away or use it to narrate while filming for better editing workflow.

Fly Safe With Advanced Obstacle Avoidance

The EVO Nano series is the first and only aircraft series of its size to offer an advanced obstacle avoidance system — making it the obvious choice for users looking to avoid crashes and preserve the life of their aircraft. With three-way binocular vision sensors that enable the drone to perceive obstructions in front of it, behind it, and below it. The EVO Nano series can easily brake to avoid collisions and navigate obstacles.

More Battery. More Time. More Creativity.

The EVO Nano can fly continuously for 28 minutes, which means plenty of time to experiment with creative angles and dream up inventive shots.

What's in the Box

Accessories

Aircraft (including battery, propellers and gimbal cover) 1

Remote Control 1

Power Adapter1

Multi-Charger 1

Spare Battery 2

USB-C Charging Cable 1

Lightning Connector 1

USB-C Connector 1

Micro-USB Connector 1

Shoulder Bag 1

Spare Propellers (pair) 3

Spare Screws 8

Screwdriver 1

Propeller Holder 1

User Manual 1

Technical Specifications

Aircraft

Takeoff Weight (without Accessories) 249g

Dimensions (including blades) Folded: 142×94×55mm, Unfolded: 260×325×55mm

Wheelbase 231mm

Max Ascent Speed 5m/s (ludicrous), 4m/s (standard), 3m/s (smooth)

Max Level Flight Speed 4m/s (ludicrous), 3m/s (standard), 2m/s (smooth)

Max Level Flight Speed(no wind, near sea level) 15m/s (ludicrous), 10m/s (standard), 5m/s (smooth)

Max Takeoff Altitude 4000m

Max Flight Time (no wind) 28min

Max Hovering Time (no wind) 26min

Max Flight Distance (no wind) 16.8km

Max Wind Resistance Level 5

Max Tilt Angle 33°(ludicrous), 25°(standard), 25°(smooth)

Max Angular Velocity 200°(ludicrous), 120°(standard), 60°(smooth)

Operating Temperature 0°C ~ 40°C

Operating Frequency 2.400-2.4835GHz，5.725-5.850GHz,5.150-5.250GHz

Transmission Power (EIRP) FCC: ≤30dBm；CE: ≤20dBm

GNSS GPS, GLONASS, Galileo

Hovering Accuracy Vertical: ±0.1m (when the visual positioning is active), ±0.5m (with GPS positioning); Horizontal: ±0.3m (when the visual positioning is active), ±1.5m (with GPS positioning);

Note: Operating frequency varies by countries and regions, please refer to local laws and regulations.

Gimbal

Mechanical Range Pitch: -125°~35°, Roll:  -34°~33°, Yaw:  -25°~25°

Controllable Range Pitch: -90°~ 0°

Stabilization 3-axis

Max Control Speed (pitch) 30°/s

Angular Vibration Range ±0.003°

Perception System

Forward Accurate measurement range：0.5~16m, Effective sensing speed：<10m/s, FOV：Horizontal<40°,Vertical<30°

Backward Accurate measurement range：0.5~18m, Effective sensing speed：<12m/s, FOV：Horizontal<40°,Vertical<30°

Downward Accurate measurement range：0.5~20m, Visual hovering range：0.5~40m, FOV：Horizontal<40°,Vertical<30°

Operating environment Forward, backward: Surface with clear pattern and adequate lighting(lux> 15) ; Downward: Surface with clear pattern and adequate lighting(lux> 15); Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.)

Camera- Nano+

Sensor CMOS：1/1.28 inch (0.8 inch), Effective pixels：50MP, Pixel size: 2.44μm*2.44μm (Bin2)

Lens FOV: 85°, Equivalent focal length: 23mm, Aperture: f/1.9, Focus range: 0.5m ~ ∞, Focus mode:：PDAF+CDAF/MF

Shooting mode Automatic mode (P gear): EV adjustable, ISO/Shutter automatic, Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable, Shutter priority (S file): Shutter/EV adjustable, ISO automatic

ISO range Video：ISO100 ~ ISO6400, Photo：ISO100 ~ ISO6400

Shutter speed Photo Mode：1/8000 ~ 8s, Other：1/8000 ~ 1/frame rates

Portrait blur Real-time image transmission portrait blur and photo portrait blur

Defog mode Support

Zoom range Digital zoom：1 ~ 16 times

Photo format JPG(8-bit) / DNG(10-bit) / JPG+DNG

Photo resolution 50MP：8192x6144（4:3）12.5MP：4096x3072（4:3）4K：3840x2160（16:9）

Photo shooting mode Single shot, Burst shooing: 3/5, Auto exposure bracketing(AEB): 3/5 shots, Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG minimum 5s), HDR imaging: 3840x2160

Video coding format H265/H264

Video format MP4/MOV

Video Resolution 3840x2160 p30/25/24, 2720x1528 p30/25/24, 1920x1080 p60/50/48/30/25/24 ; HDR: 3840x2160 p30/25/24, 2720x1528 p30/25/24, 1920x1080 p60/50/48/30/25/24

Max bitrate 100Mbps

Timelapse Original image：3840*2160，JPG/DNG, Video：4K P25

Panorama Horizontal/Vertical/Wide-angle/Spherical, Original image: 4096*3072, JPG/DNG

Supported file system Fat32、exFat

WIFI transfer 20MB/s

Remote controllor and image transmission

Operating frequency 2.400-2.4835GHz，5.725-5.850GHz,5.150-5.250GHz

Max transmission distance (unobstructed, free of interference) FCC：10km；CE：5km

Operating temperature 0°C ~40°C

Transmission power (EIRP) FCC:≤30dBm；CE:≤20dBm

Battery capacity 3930mAh

Max battery life ~ 2.5h (when connected to a mobile phone), ~ 3.5h (when not connected to mobile phone)

Interface type Type C

Transmission system Autel SkyLink

Realtime transmission quality Transmission distance<1km：2.7K 30fps, Transmission distance>1km：1080P 30fps

Transmission bitrate 90Mbps

Transmission delay ≤200ms

Note: Operating frequency varies by countries and regions, please refer to local laws and regulations.

Adapter

Input 100-240V/50-60HZ

Output 5V⎓3A,9V⎓3A,12V⎓2.5A

Rated power 30W

Aircraft Battery

Capacity 2250mAh

Voltage 7.7V

Max charging voltage 8.8V

Battery Type Li-Po 2S

Energy 17.32Wh

Charging temperature 5~45℃

Operating Temperature -10℃~40℃

Single battery charging time 90min

Max charging power 30W

App

Mobile App Autel Sky

Mobile system required iOS 13.0 and above, Android 6.0 and above

Storage

Built-in storage No

SD storage max. support 256GB（UHS-3 rating required）
