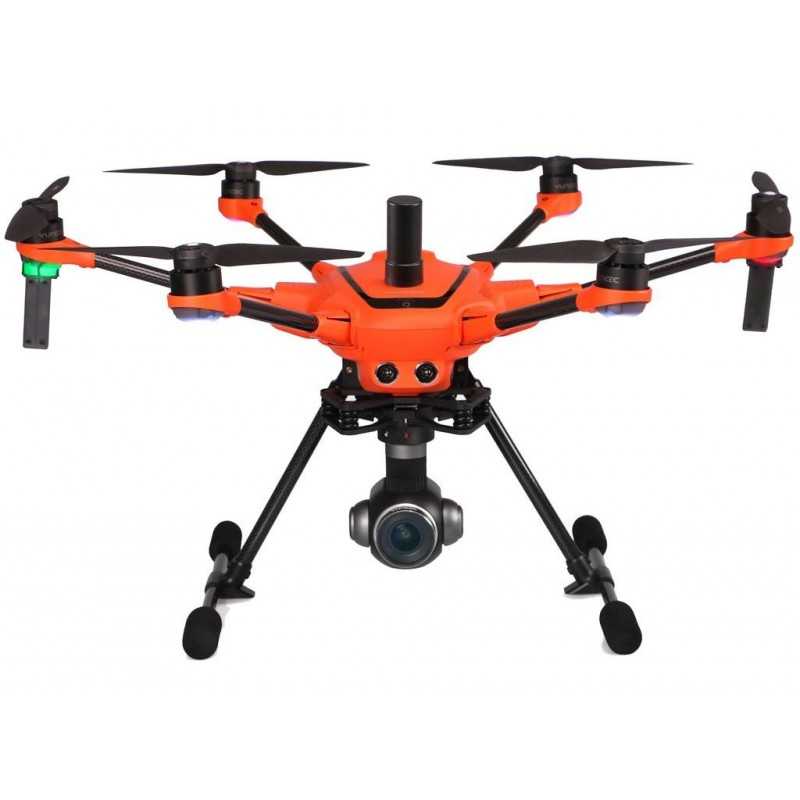

Yuneec H520E-RTK Combo + E90X Camera

Thanks to Real-Time Kinematics technology, the new H520E RTK will be able to stand in the air with centimeter accuracy, enabling extremely precise photos, faster 3D mapping, and more accurate inspection flights.

The E90x camera is a wide-angle, high resolution, gimbal stabilized imaging system perfectly suited for use in applications that require high-quality photo and video. It utilizes a high aperture 1 inch CMOS imager that is capable of capturing still images with 20-megapixel resolution.

The E90x's 1-inch 4K resolution sensor, combined with the H520E-RTK, provides extremely high quality images. The result is superior high-resolution 2D or 3D mapping, precision volumetrics and 3D surface models.

KEY FEATURES

• RTK (Real Time Kinematic) module for high accuracy relative positioning: 1 cm + ppm horizontal / 2 cm + ppm vertical
• Keep cm precision in even GNSS challenging environment
• 5 Hz update rate of position, velocity and time
• All data including raw GNSS data and real-time solution can be logged on board - ready for PPK (Post Processed Kinematics)
• Support signals of up to 3 GNSS constellations among GPS, GLONASS, Galileo and BeiDou
• Camera:
• 20 megapixel / 4K resolution at 60 frames per second
• 1“ CMOS sensor
• Digital zoom up to 8x
• 23 mm lens with low distortion
• Ideal for orthomapping, 3D modeling, and close-up inspections.
