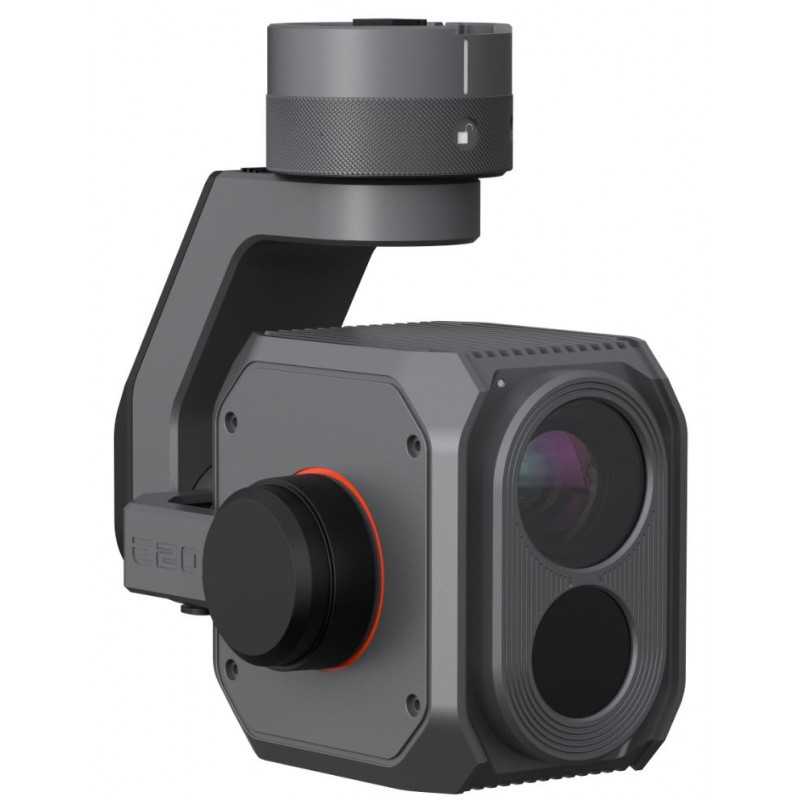

Yuneec E20TVX Radiometric Camera for H520E & H850

THERMAL IMAGING SOLUTION FOR H520E & H850

Our new E20Tvx NETD camera for the H520E & H850 comes in 640x512 resolution and with the ability to

capture temperature data for quantitative assessment. The residual-light RGB camera has a 20x higher sensitivity

than the human eye and captures high-quality imagery, even in very low-light conditions. It is small, lightweight and thanks

to its high sensitivity; it is a reliable tool that clearly recognises target objects in detail.

FULLY RADIOMETRIC

Thanks to radiometric technology, the E20Tvx can measure the temperature of an area by interpreting the intensity of an infrared signal reaching the camera. It collects the data for every image pixel, which can be then easily uploaded into standard software for further and accurate analysis and reports.

Key Features:

• High sensitivity for clear and detailed target recognition.
• Detailed and precise temperature measurement for every pixel.
• Color palettes adjustable to task requirements.
• Adjustable Gain Modes to change the measured tempreature range.
• Post-flight accurate analysis with quantifiable data.
• Suitable for tasks related to Inspection (buildings, solar panels and powerlines), Search and Rescue, Firefighting and Law enforcement.
• Camera is compatible with H520E & H850

Camera Weight: 358 g

GIMBAL:

Angular vibration range: ±0.02°

Controllable range: Tilt：-110°to 30° / Pan：±165°

Max. Angular velocity: Tilt:30°/s, Pan:120°/s

Operating Temperature: -10°C - 40°C

INFRARED PART:

FOV, diagonal: 41.4°

FOV: 33° x 26.6°

Sensitivity: < 50 mK

Pixel pitch: 12um

LWIR Wave Length: 8 - 14 μm

Frequency: Full Frame Rate: 25Hz

Photo Format: JPEG

Video Format: MP4

Temperature Compensation: Auto

Resolution: 640x512

Temperature Measuring Range: High Gain -20°-150° Low Gain 100°-500°

OPTICAL PART:

Sensor: 1/2.8" 2.13MP

Aperture: F2.8

Equivalent, Focal Length: 23mm

Diagonal FOV: 90°

ISO Range: 100-3200

Shutter Speed: 1/30-1/8000s

Video Resolution: 1920*1080p 60fps
