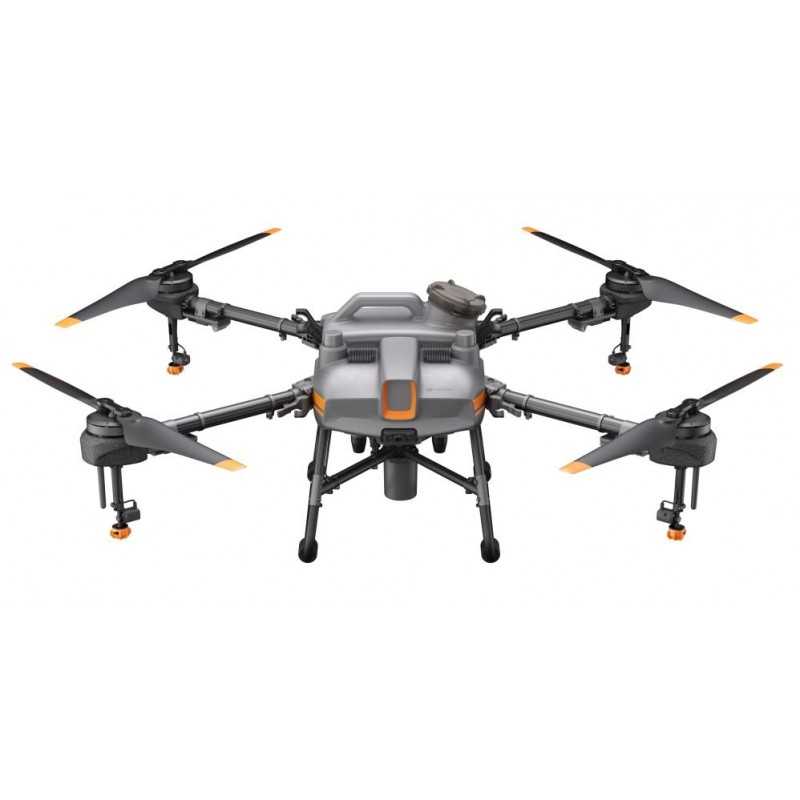

DJI Agras T10 Agriculture Drone

The DJI Agras T10 brings a highly compact-yet-powerful aerial solution to agriculture sites of all sizes and needs. An 8 liter tank and spray width of up to 5 meters allow the aircraft to cover up to 15 acres/hour. Its folding truss structure is sturdy and reliable, enabling efficient folding and unfolding, convenient transportation, and easy transitions.

Lightweight and Convenient

A carbon fiber composite body keeps the Agras T10 both lightweight and strong. It can also fold down by 70% for more convenient transportation. The battery and tank can be quickly attached and detached to make refilling more efficient.

• 8L Spray Tank
• Spherical Radar System
• Overall IP67 Water Resistance
• Dual FPV Cameras for Monitoring
• High Precision Operation
• Smart Agriculture Cloud Platform

Autonomous Functions for Easier Flights

The aircraft takes off with the push of a button. Autonomous planning and automatic edge sweeping offer extensive spray coverage and effortless operation. The T10 also comes optional with an RTK module with centimeter-precision positioning. The new DJI Agriculture app enables a smoother system experience and more intuitive operation.

Precision Spraying, No Redundancy or Leakage

The Agras T10 features a four-nozzle design with an output rate of up to 2.4 liters per minute. A dual-channel solenoid flowmeter controls the nozzles for even spraying and precise volume control, critical for pesticide spraying.

Eliminate Blind Spots with a Spherical Radar System

The spherical radar system perceives obstacles and surroundings in all environments, weather conditions, and viewing angles, regardless of dust and light interference. Automatic obstacle avoidance and adaptive flight functions help ensure safety during operation.

Dual FPV Cameras for Improved Awareness

Equipped with dual FPV cameras, the Agras T10 provides clear front and rear views and lets you check flight status without needing to turn the aircraft mid-flight. And a bright searchlight doubles the aircraft's night vision capabilities, creating more nighttime operation possibilities.

Designed for Long-Term Service

The Agras T10 control module has a fully enclosed structure for added durability. All critical components have three layers of protection and are IP67 rated. Ideal for long term use of pesticides and fertilizers, and to resist dust and corrosion.

Ultrabright Screen Ultimate Control

An updated remote controller supports stable image transmission from up to 5 km away, 67% more than the previous generation. A bright 5.5-inch screen delivers clear visuals, even in harsh lighting conditions. For increased productivity, one remote controller can operate multiple drones at once. The optional RTK high-precision positioning module enables centimeter-level operation planning. Additional enhancements include stronger signaling, anti-interference, and operational stability. The new DJI Agriculture app provides a smooth user experience and more intuitive operation.

Two Batteries + Charger for Continuous Operation 1,000 cycles for 1,650 acres

With fewer supporting components needed, the Agras T10 is easier to transport. A newly designed intelligent battery is covered by a 1-year warranty for 1,000 charges and 1,650 acres of flight; this ultra-long service life significantly reduces operating costs. The charging station and smart charging hub can charge a battery in 10 minutes, allowing for continuous operation with just two batteries and one charger.

DJI Agras T10 Intelligent Flight Battery

The 9,500mAh Intelligent Flight Battery has a product guarantee of 1,000 cycles. It supports instant charging without the need for cooldown, circuit board-level potting protection, and resistance from water and corrosion.

DJI Agras T10 Intelligent Battery Station

The T10 Battery Station provides 3,600 watts of charging power and can charge a battery in 7 minutes. It also supports dual-channel alternated charging with power adaptation for safer operation.

T10 Spreading System 3.0 Fast switching and efficient spreading

The Agras T10 can switch to a spreading system in just three minutes. A capacity of 8kg and spreading width of up to 7 meters support an hourly productivity of 14 acres. It also supports real-time weight monitoring and has an anti-rotation sensor, allowing more accurate refill alerts. This system also supports real-time weight monitoring and has an anti-rotation sensor, allowing more precise refill alerts. The T10's overall water-resistance rating of IP67 makes it washable and corrosion-resistant ideal for spraying of fertilizers, seeds, and feed. When used with digital agriculture solutions, the Agras T10 implements variable spreading, reducing fertilizer use while increasing yield.

Cloud-Based 3D Farming: Digital Agriculture is Here

With the Smart Agriculture Cloud Platform, users can perform cloud-based mapping of orchard and farmland scenarios to generate smart flightpaths. This platform is equipped with an AI recognition system to patrol fields, identify growth, monitor disease or pests, and monitor agricultural conditions efficiently. Pairing this system with the DJI P4 Multispectral allows users to apply solutions based on specific variables according to an automatically-generated farmland prescription map.

Specs

T10

Features

Hourly operation efficiency 15 acres

High-precision radar √ Spherical Omnidirectional Radar System

Remote control planning precision √ (RTK/GNSS)

Removing air from pipes √ One button Air Discharge

3D operation planning of the AI engine √

High-precision flowmeter √ (Dual-channel electromagnetic flowmeter with an error of ±2%)

Level gauge Single-point level gauge

Maximum spray flow 1.8 L/min (with standard XR11001VS nozzle) 2.4 L/min (with optional XR110015VS nozzle）

Pesticide tank installation method Quick plugging pesticide tank

Battery installation method Quick plug-and-play battery

One remote control for multiple drones √ (one remote control for three drones)

D-RTK technology √

Up-looking radar module √

Flight dotting function √

Smart cruising/return function √

Intelligent supply-point prediction x

Coordinated turn function √

Forward-looking FPV √

Backward-looking FPV √

Branch targeting technology x

Drone parameters

Total weight (without batteries) 13 kg

Rated take-off weight 24.8 kg (near sea level)

Hovering precision (with good GNSS signal) With D-RTK enabled: ±10 cm (horizontal) and ±10 cm (vertical) ; With D-RTK disabled: ±0.6m (horizontal) and ±0.3m (vertical) (with the radar function enabled: ±0.1 m）

RTK/GNSS frequency bands RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, and Galileo E1/E5, GNSS: GPS L1, GLONASS F1, and Galileo E1

Maximum power consumption 3,700 W

Hovering power consumption 3,200 W

Hovering time 17 min (@9,500 mAh & takeoff weight of 16 kg) 9 min (@9,500 mAh & takeoff weight of 24.8 kg)

Maximum pitch angle 15°

Maximum operating flight speed 7 m/s

Maximum level flight speed 10 m/s (with good GNSS signals)

Maximum endurable wind speed 8 m/s

Max Take-off Altitude 4,500m *Reduce the pesticide amount by 12% with each increase of 1,000 meters of altitude.

Recommended operating ambient humidity < 93%

Recommended operating ambient temperature 0℃ to 45℃

Rack parameters

Maximum rotor distance 1,480 mm

Dimensions 1,958 mm × 1,833 mm × 553 mm (with arms and blades extended) 1,232 mm × 1,112 mm × 553 mm (with arms extended and blades folded) 600 mm × 665 mm × 580 mm (with arms folded)

Power system - Motor

Stator size 100×10 mm

KV value 84 rpm/V

Maximum pulling force 11.2 kg/rotor

Maximum power 2,500 W/rotor

Weight 527 g

Power system - Propellers

Diameter × pitch 33×9 inch

Weight (a single blade) 92 g

Power system - ESC

Maximum operating current (continuous) 32 A

Maximum operating voltage 60.9 V (14S LiPo)

FPV camera

FOV Horizontal: 129°, vertical:82°

Resolution 1,280×720 15-30 fps

FPV spotlight

Maximum light intensity 13.2 lux @ 5-meter direct light

Spraying system - Operation tank

Operation tank volume 8 L at full load

Operating load 8 kg at full load

Spraying system - Nozzles

Sprayer model XR11001VS (standard) XR110015VS (optional) XR11002VS (optional)

Number of sprayers 4

Maximum spray flow XR11001VS: 1.8 L/min XR110015VS: 2.4 L/min XR11002VS:3 L/min

Diameter of atomized particle XR11001VS : 130 - 250 μm XR110015VS : 170 - 265 μm XR11002VS: 190 - 300 μm (depending on the actual operating environment, spraying flow and other factors)

Maximum effective spray width 3 - 5.5m (with 4 sprayers and a distance of 1.5 - 3 meters to crops)

Spraying system - Water pump

Water pump model Diaphragm pump

Operating voltage 15 V

Maximum flow 1.5 L/min ×1

Spraying system - Flowmeter

Flow measurement range 0.25 - 20 L/min

Flow measurement error < ±2%

Measurable liquid Conductivity > 50 μS/cm. Typical liquid: Tap water, aqueous organic or inorganic pesticides, and the like

Omnidirectional obstacle avoidance radar

Model RD2424R

Operating frequency SRRC/NCC/FCC: 24.05 to 24.25 GHz MIC/KCC/CE: 24.05 to 24.25 GHz

Operating power consumption 12 W

Equivalent isotropic radiated power (EIRP) SRRC: < 13 dBm; NCC/MIC/KCC/CE/ FCC:< 20 dBm

Height hold and terrain following Height measurement range: 1 - 30m Height hold range: 1.5 - 15m Maximum slope in mountain mode:35°

Obstacle avoidance system Perceivable distance: 1.5 - 30m FOV: 360° (horizontal), ±15° (vertical) Conditions of use: The relative flight height of the drone is above 1.5m and the speed below 7 m/s Safe distance: 2.5m (the distance between the tip of the blade and the obstacle after the drone is braked and hovering stably) Obstacle avoidance direction: Horizontally omnidirectional obstacle avoidance

Protection class IP67

Up-looking radar

Model RD2414U

Operating frequency SRRC/NCC/FCC: 24.05 to 24.25 GHz MIC/KCC/CE:24.05 to 24.25 GHz

Overhead obstacle avoidance Perceivable distance: 1.5 - 10m FOV: 80° Conditions of use: The drone flies for a relative distance over 1.5 m in the mode of take-off, landing and route climb mode Safe distance: 2m (the distance between the obstacle and the highest point on the top of the drone) Obstacle avoidance direction: Above the drone

Protection class IP67

Equivalent isotropic radiated power (EIRP) SRRC:< 13 dBm;NCC/MIC/KCC/CE/ FCC:< 20 dBm

Operating power consumption 4 W

Battery

Model BAX501-9500mAh-51.8V

Weight About 3.8 kg

Discharge rate 11.5C

Protection class IP54 + board-level embedment protection

Capacity 9,500 mAh

Voltage 51.8 V

Remote control

Model RM500-ENT

Operating frequency of OcuSync 2.0 2.4000 to 2.4835 GHz, 5.725 to 5.850 GHz

Effective signal distance of OcuSync 2.0 (without interference and blockage) SRRC: 5 km; MIC/KCC/CE: 4 km; FCC: 7 km (measured at the operating height of 2.5m)

EIRP of OcuSync 2.0 2.4 GHz SRRC/CE/MIC/KCC: 18.5 dBm; FCC: 29.5 dBm; 5.8 GHz SRRC: 28.5 dBm; FCC: 20.5 dBm CE:12.5 dBm

Wi-Fi Protocols Wi-Fi Direct, Wireless Display, and 802.11a/g/n/ac. 2 × 2 MIMO Wi-Fi is supported

Wi-Fi operating frequency 2.4000 to 2.4835 GHz, 5.150 to 5.250 GHz, 5.725 ~ 5.850 GHz

Wi-Fi EIRP 2.4 GHz SRRC/CE: 18.5 dBm; FCC/MIC/KCC: 20.5 dBm; 5.2 GHz SRRC/FCC/CE/MIC: 14 dBm; KCC: 10 dBm; 5.8 GHz SRRC/FCC: 18 dBm; CE/KCC: 12 dBm;

Bluetooth protocol Bluetooth 4.2

Bluetooth operating frequency 2.4000 to 2.4835 GHz

Bluetooth EIRP SRRC/MIC/FCC/CE/KCC:6.5 dBm

Positioning GPS + GLONASS

Display 5.5-inch screen with a resolution of 1,920×1,080 and brightness of 1,000 cd/m², and Android OS

Operating memory (RAM) 4GB LPDDR4

Storage space (ROM) 32 GB + scalable storage space, and a microSD card with the capacity up to 128 GB and transfer speed of UHS-I Speed Grade 3 is supported

HDMI HDMI 1.4

Supported drones T30 and T10 crop protection drones

Operating power consumption 18 W

Operating ambient temperature -10℃ to 40℃

Storage ambient temperature -30℃ to 60℃ (within 1 month) -30℃ to 45℃ (1 to 3 months) -30℃ to 35℃ (3 to 6 months)-30℃ to 25℃ (more than 6 months) (with the capacity of built-in batteries at 40 to 60%)

Charging ambient temperature 5℃ to 40℃

Built-in battery of remote control

Built-in battery 18650 lithium ion battery (5,000 mAh at 7.2V)

Battery life 2 hours

Charging method Standard 12V/2A USB quick charger

Charging time 2.5 hours (with the standard 12V/2A USB quick charger and the remote control powered off)

Power supply current/voltage of remote control USB-A port 5 V / 1.5 A

External smart battery of remote control

Model WB37-4,920mAh-7.6V

Battery type 2S LiPo

Capacity 4,920 mAh

Voltage 7.6 V

Capacity 37.39 Wh

Charging ambient temperature 5℃ to 40℃

Battery life 2 hours

External smart battery charging manager of remote control

Model WCH2

Input voltage 17.3 - 26.2 V

Output voltage and current 8.7V and 6A

Operating ambient temperature 5℃ to 40℃

Power adapter of external smart battery charging manager

Model A14-057N1A

Input voltage 100 to 240V and 50/60 Hz

Output voltage 17.4 V

Rated power 57 W

T-Series Spreading System 3.0 (8kg)

Weight of distribution system 3.1kg

Maximum opening area 44.6 cm²

Applicable materials Dry solid particles with a diameter of 0.5 to 5 mm

Volume of distribution tank 12L

Maximum internal load of distribution tank 10kg

Protection class IP67

Input voltage Power: 60V Control:15V

Maximum power 60V@250W 15V@50W

Recommended operating ambient temperature 0℃ to 40℃

Dimensions 405×245×375mm

Maximum rotation speed 1,300 RPM

T10 smart charging manager

Dimensions 300×280×230 mm

Total weight 8.1 kg

Input voltage 100-264 Vac

Output voltage 40-60 V

Rated power 3,600 W

Charging current 50 A

Charging time 7 to 10 min

Charging voltage precision +/-0.1 V

Charging current precision +/-1 A

Number of output channels 2

Protection functions Over-temperature, over-voltage, under-voltage, short-circuit, and fan stall protection

Charging ambient temperature -20℃ to 45℃

Charging safety AC wire protection, power wire protection, and charge connector protection
