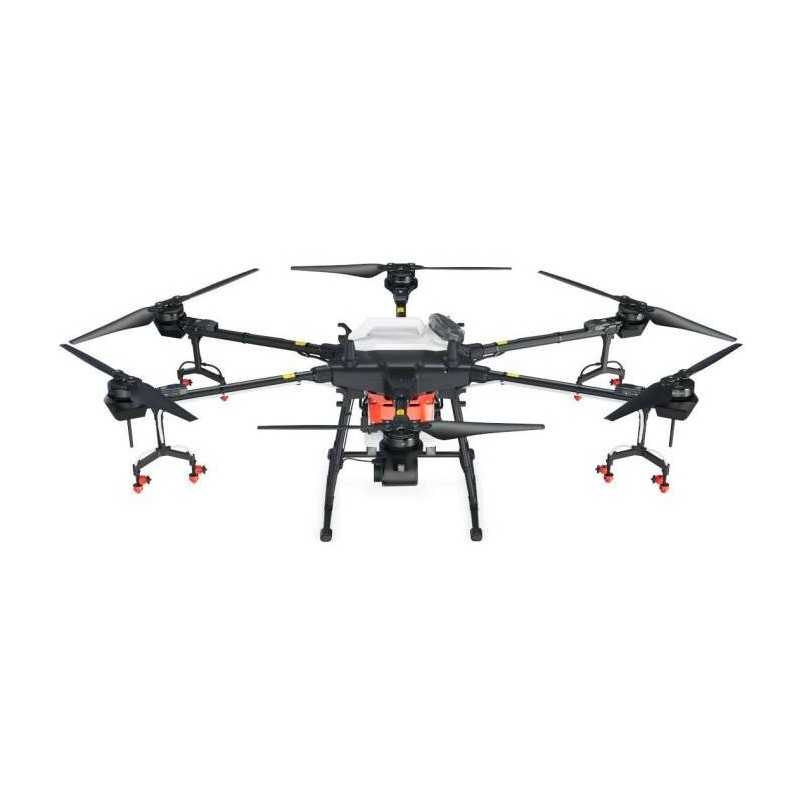

DJI Agras T16 Agriculture Drone

The Agras T16 has an improved overall structure with modular design and supports the highest payload and widest spray width ever in a DJI agricultural drone. With powerful hardware, an AI engine, and 3D-operation planning, the T16 brings operation efficiency to a whole new level.

• 16L Spray Tank
• Core Module IP67 Rating
• RTK Centimeter-Level Positioning
• DBF Imaging Radar
• Wide-Angle FPV Camera
• AI Engine

AGRAS T16Specs

AIRFRAME

Max Diagonal Wheelbase 1883 mm

Dimensions 2509×2213×732 mm (Arms and propellers unfolded) 1795×1510×732 mm (Arms unfolded and propellers folded) 1100×570×732 mm (Arms and propellers folded)

SPRAYING SYSTEM- SPRAY TANK

Volume Rated: 15 L, Full: 16 L

Operating Payload Rated: 15 kg, Full: 16 kg

SPRAYING SYSTEM - NOZZLE

Model XR11001VS (Standard), XR110015VS (Optional, purchase separately)

Quantity 8

Max Spray Rate XR11001VS: 3.6 L/min, XR110015VS: 4.8 L/min

Spray Width 4-6.5 m (8 nozzles, at a height of 1.5-3 m above crops)

Droplet Size XR11001VS：130 - 250 μm XR110015VS：170 - 265 μm (Subject to operating environment and spray rate)

SPRAYING SYSTEM - FLOW METER

Measurement Range 0.45-5 L/min

Error < ±2%

Measurable Liquid CConductivity > 50 mS/cm (Liquids such as water or pesticides that contains water)

FLIGHT PARAMETERS

Operating Frequency 2.4000 GHz-2.4835 GHz, 5.725 GHz-5.850 GHz *

EIRP 2.4 GHz, SRRC/ CE / MIC/ KCC: < 20 dBm, FCC / NCC: < 26 dBm ; 5.8 GHz SRRC/ NCC/ FCC: < 26 dBm

Total Weight (Excluding battery) 18.5 kg

Standard Takeoff Weight 41 kg

Max Takeoff Weight 42 kg (At sea level)

Max Thrust-Weight Ratio 2.05 (Takeoff weight of 39.5 kg)

Hovering Accuracy (With strong GNSS signal) D-RTK enabled: Horizontal: ±10 cm, Vertical: ±10 cm, D-RTK disabled: Horizontal: ±0.6 m, Vertical: ±0.3 m (Radar module enabled: ±0.1 m)

RTK/ GNSS Operating Frequency RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5, GNSS: GPS L1, GLONASS F1, Galileo E1

Battery DJI-approved battery pack (AB2-17500mAh-51.8V)

Max Power Consumption 5600 W

Hovering Power Consumption 4600 W (Takeoff weight of 39.5 kg)

Hovering Time** 18 min (Takeoff weight of 24.5 kg with a 17500 mAh battery), 10 min (Takeoff weight of 39.5 kg with a 17500 mAh battery)

Max Tilt Angle 15°

Max Operating Speed 7 m/s

Max Flying Speed 10 m/s (With strong GNSS signal)

Max Wind Resistance 8 m/s

Max Service Ceiling Above Sea Level 2000 m

Recommended Operating Temperature 0° to 40°C (32° to 104°F)

* To comply with local laws and regulations, this frequency is not available in some countries or regions.

** Hovering time acquired at sea level with wind speeds lower than 3 m/s.

FPV CAMERA

FOV Horizontal: 98°, Vertical: 78°

Resolution 1280×960 30 fps

FPV Spotlight FOV: 110°, Max brightness: 12 lux at 5 m of direct light

DBF IMAGING RADAR

Model RD2418R

Operating Frequency SRRC (China)/ CE (Europe)/ FCC (United States): 24.00 GHz-24.25 GHz

Power Consumption MIC (Japan) / KCC (Korea): 24.05 GHz-24.25 GHz

EIRP 15 W

Altitude Detection & Terrain Follow* MIC/ KCC/ CE/ FCC: 20 dBm

Obstacle Avoidance System* Altitude detection range: 1-30 m

IP Rating Stabilization working range: 1.5-15 m

*The effective radar range varies depending on the material, position, shape, and other properties of the obstacle.

PROPULSION SYSTEM - MOTOR

Stator Size 100×15 mm

KV 75 rpm/V

Max Thrust 13.5 kg/rotor

Max Power 2400 W/rotor

Weight 616 g

PROPULSION SYSTEM - FOLDABLE PROPELLERS (R3390)

Diameter × Pitch 33×9 in

Weight (Single propeller) 90 g

PROPULSION SYSTEM - ESC

Max Working Current (Continuous) 40 A

Max Working Voltage 58.8 V (14S LiPo)

REMOTE CONTROLLER

Model GL300N

Operating Frequency 2.4000 GHz-2.4835 GHz, 5.725 GHz- 5.850 GHz*

Effective Transmission Distance (Unobstructed, free of interference) SRRC/ MIC/ KCC/ CE: 3 km, NCC/ FCC: 5 km

EIRP 2.4 GHz, SRRC/ CE/ MIC/ KCC: < 20 dBm, FCC / NCC: < 26 dBm ; 5.8 GHz SRRC/ NCC/ FCC: < 26 dBm

Display 5.5-inch screen, 1920×1080, 1000 cd/m2, Android system 4G RAM＋16G ROM storage

Power Consumption 16 W (Typical value)

Operating Temperature -10° to 40°C (14° to 104°F)

Storage Temperature Less than 3 months: -20° to 45°C (68° to 113°F) More than 3 months: 22° to 28°C (70° to 82°F)

Charging Temperature 5° to 40°C (40° to 104°F)

* To comply with local laws and regulations, this frequency is not available in some countries or regions.

REMOTE CONTROLLER INTELLIGENT BATTERY

Model WB37-4920mAh-7.6V

Battery Type 2S LiPo

Capacity 4920 mAh

Voltage 7.6 V

Energy 37.39 Wh

Charging Temperature 5° to 40°C (40° to 104°F)

REMOTE CONTROLLER CHARGING HUB

Model WCH2

Input Voltage 17.3-26.2 V

Output Voltage and Current 8.7 V, 6 A

Operating Temperature 5° to 40°C (40° to 104°F)

REMOTE CONTROLLER POWER ADAPTER

Model A14-057N1A

Input Voltage 100-240 V, 50/60 Hz

Output Voltage 17.4 V

Rated Power 57 W
