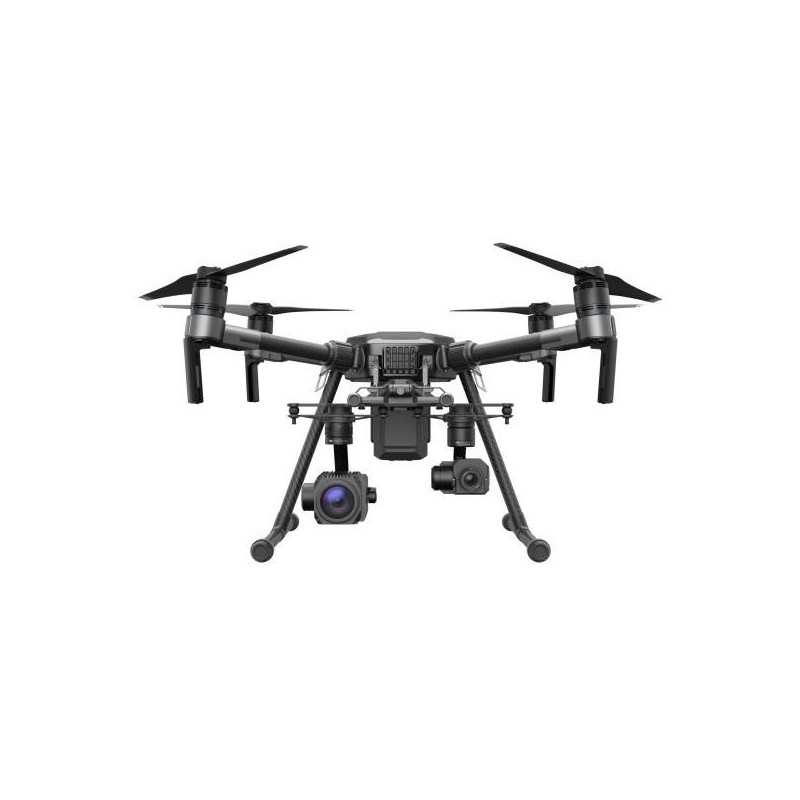

DJI Matrice 210 Drone

M210

Aircraft

Model M210

Package Dimensions 31.1×15.4×11.4inch (790×390×290mm)

Dimensions (unfolded) 34.9×34.6×14.9 inch (887×880×378 mm)

Dimensions (folded) 28.2×8.7×9.3 inch (716×220×236 mm)

Folding Method Folded Inward

Diagonal Wheelbase 25.3 inch (643 mm)

Number of Batteries 2

Weight (TB50) Approx.3.84kg (with two standard batteries )

Weight (TB55) Approx.4.57kg (with two standard batteries )

Max Takeoff Weight 6.14KG

Max Payload (2 TB50) Approx.2.3kg (with two standard batteries )

Max Payload (2 TB55) Approx.1.57kg (with two standard batteries )

Hovering Accuracy (during safe flights) Vertical: ±0.5，Downward Vision System enabled: ±0.1 ; Horizontal: ±1.5，Downward Vision System enabled: ±0.3

Max Angular Velocity Pitch: 300° /s；Yaw:150° /s

Max Pitch Angle (Dual Downward Gimbals) P Mode: 25°（Forward Vision System enabled: 25°）； A Mode: 25°；S Mode: 30°

Max Pitch Angle(Single Upward/Downward Gimbal) P Mode: 30°（Forward Vision System enabled: 25°）； A Mode: 30°；S Mode: 35°

Max Ascent Speed 16.4 ft/s (5 m/s)

Max Descent Speed Vertical: 9.8 ft/s (3 m/s)

Max Speed(Dual Downward Gimbals) S Mode: 40.3mph (64.8kph), P Mode: 38mph (61.2kph), A Mode: 38mph (61.2kph)

Max Speed (Single Upward/Downward Gimbals) S Mode: 51.4mph (82.8kph), P Mode: 38mph (61.2kph), A Mode: 51.4mph(82.8kph)

Max Service Ceiling Above Sea Level 1.86 miles (3000 m)

Max Wind Resistance 39.4 ft/s (12 m/s)

Max Flight Time(No Payload, with TB50) 27min

Max Flight Time(No Payload, with TB55) 38min

Max Flight Time(Full Payload, with TB50) 13min

Max Flight Time(Full Payload, with TB55) 24min

Motor Model DJI 3515

Propeller Model 1760S

Operating Temperature -4° to 113° F (-20° to 45° C)

IP Rating IP43

Gimbal Installation

Downward Gimbal Mount Supported

Upward Gimbal Mount Supported

Downward Dual Gimbal Supported

Charger

Model IN2C180

Voltage 26.1 V

Rated Power 180 W

Forward Vision System

Obstacle Sensing Range 2.3-98.4 feet (0.7-30 m)

FOV Horizontal 60°，Vertical 54°

Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)

Downward Vision System

Velocity Range <32.8 ft/s (10 m/s) at height of 6.56 feet (2 m)

Altitude Range <32.8 feet (10 m)

Operating Range <32.8 feet (10 m)

Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)

Ultrasonic Sensor Operating Range 0.33-16.4 feet (10-500 cm)

Ultrasonic Sensor Operating Environment Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance)

Gimbals

Compatible Gimbals Zenmuse X4S, Zenmuse X5S, Zenmuse Z30, Zenmuse XT, Zenmuse XT2, SLANTRANGE 3PX, Sentera AGX710

Battery

Model TB50

Capacity 4280 mAh

Voltage 22.8V

Battery Type LiPo 6S

Energy 97.58 Wh

Net Weight Approx. 520 g

Operating Temperature -20°C to 45° C

Storage Temperature Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C), More than 3 months: 72° to 82° F (22° to 28° C)

Charging Temperature 41° to 104° F (5° to 40° C)

Max Charging Power 180 W

Model TB55

Capacity 7660 mAh

Voltage 22.8V

Battery Type LiPo 6S

Energy 176.93Wh

Net Weight Approx. 885 g

Operating Temperature -4° to 113° F (-20° to 45° C)

Storage Temperature Less than 3 months: -20° C to 45° C, More than 3 months: 22° C to 28° C

Charging Temperature 41° to 104° F (5° to 40° C)

Max Charging Power 180 W

DJI GO 4 APP

Name DJI GO 4

Mobile Device System Requirements iOS 9.0 or later,Android 4.4.0 or later

Supported Mobile Devices iOS:iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 7, iPhone 7 Plus. Android:Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Huawei Mate 8, LG V20, Nubia Z7 mini, Sony Xperia Z3, MI 3, MI PAD, Smartisan T1.

*Support for additional devices available as testing and development continues.

Upward Infrared Sensor

Obstacle Sensing Range 0-16.4 feet (0-5 m)

FOV ±5°

Operating Environment Large, diffuse and reflective obstacles (reflectivity >10%)

Cendence

Type GL800A

Operating Frequency 2.400-2.483 GHz; 5.725-5.825 GHz

Max Transmitting Distance (unobstructed, free of interference) 2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC) ; 5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC)

EIRP 2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC) ; 5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC)

Power Supply Extended Intelligent Battery (Model: WB37-4920mAh-7.6V)

Intelligent Battery 4923 mAh LiPo

Charging DJI charger

Output Power 20 W (supplying power to DJI CS550 monitor) ; 12 W (without supplying power to monitor)

Video Output Ports USB, HDMI, SDI

USB Supply Power iOS: 1 A, 5.2 V (Max); Android: 1.5 A, 5.2 V (Max)

Dual User Capability Master-and-Slave connection

Operating Temperature -4 ° to 104 °F (-20 ° to 40 °C)

Storage Temperature Less than 3 months: -4 ° to 113 °F (-20 °to 45 °C) ; More than 3 months: 72 °to 82 °F (22 °to 28 °C)

Charging Temperature 32 ° to 104 °F (0 °to 40 °C)

Charging Time About 2 hours and 24 minutes (using a 180 W charger)

Supply Power Time About 4 hours (only Master remote controller function enabled and without supplying power to monitor)

Weight 1041 g
