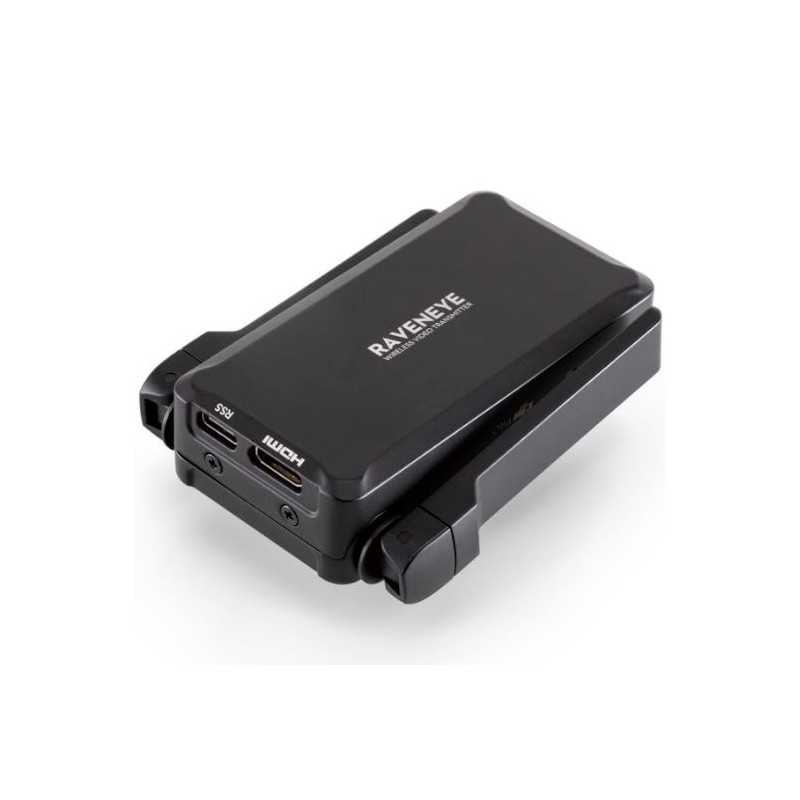

DJI Ronin RavenEye Advanced Image Transmission System

The DJI Ronin RavenEye Advanced Image Transmission System revolutionizes your filmmaking experience by providing a live camera view and activating ActiveTrack 3.0 on compatible DJI gimbals. This innovative system enables seamless transmission of your camera's live view directly to the touchscreen and the Ronin app, enhancing your creative control and monitoring capabilities.

Features

• For DJI RS 2: Enjoy live camera view and full remote control capabilities through the touchscreen and Ronin app.
• For DJI RSC 2: Activate remote gimbal control, monitoring, and ActiveTrack 3.0, though the built-in screen does not support live view transmission.
• Easy setup with mounting directly onto the gimbal and connecting to your camera via HDMI and to your smartphone via Wi-Fi.

Visit the Ronin Series Compatibility Search to verify supported camera models and functions.

Important Note

Please note that the Ronin-S and Ronin-SC currently do not support remote gimbal control or ActiveTrack 3.0 when using the RavenEye system.

In The Box

• Image Transmitter × 1
• Cold Shoe to 1/4"-20 Adapter × 1
• USB-C Charging Cable (40 cm) × 1
• USB-C Power Cable (20 cm) × 1
• Mini-HDMI to HDMI Cable (20 cm) × 1
• Mini-HDMI to Mini-HDMI Cable (20 cm) × 1
• Mini-HDMI to Micro-HDMI Cable (20 cm) × 1
• M4 Screw × 2
• Allen Wrench (3 mm) × 1

Specifications

• Working Frequency: 2.400-2.4835 GHz, 5.725-5.850 GHz
• Weight: 126 g
• Dimensions: 82 mm x 63 mm x 24 mm
• Transmission Power (EIRP):
  • 2.400-2.4835 GHz: <25dBm (FCC), <20dBm (CE/SRRC/MIC)
  • 5.725-5.850 GHz: <25dBm (FCC/SRRC), <14dBm (CE)

Compatibility

• Ronin-S
• Ronin-SC
• DJI RS 2
• DJI RSC 2
