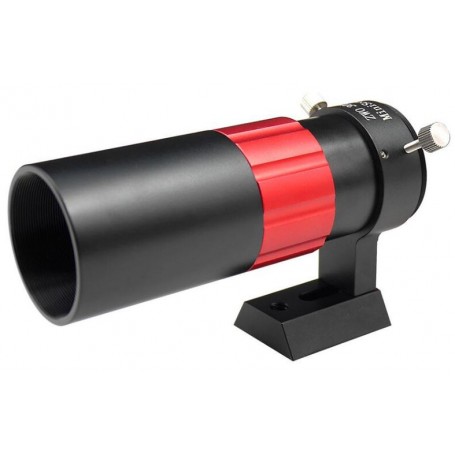

ZWO Guidescope 30mm mini

This petite guiding scope seamlessly fits into all current viewfinder shoes, compatible with brands like Skywatcher, TS-Optics, GSO, Vixen, and Celestron. Simply swap out the finderscope for the guide sleeve, ensuring a hassle-free connection to your telescope.

Adapting for autoguiding is equally straightforward. The focus can be finely tuned between 0mm and 20mm from the T2 thread by adjusting the lens, accommodating all current autoguiders and cameras with T2 connections. Additionally, with an optional T2 to 1.25” adapter, you can utilize the compact autoguider with 1.25” casings. Clamping is secured using both knurled screws and a clamping ring.

SPECIFICATIONS

Capacity:

Lens Diameter (mm): 30

Aperture Ratio (f/): 4

Focal Length (mm): 120

Connector (at Camera End): T2

Coating of Optical System: FMC

Number of Lenses: 2

Backfocus (mm): 0-20

Focusing: Helical

Equipment:

Shoe: Yes

General:

Type: Guiding

Build Type: Guidescope

Weight (g): 250
